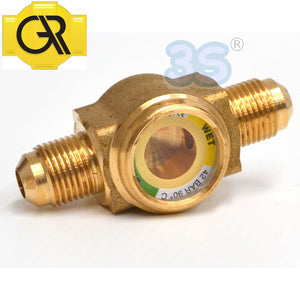

LIQUID and MOISTURE INDICATOR
for REFRIGERATION SYSTEMS
3/8 male/male - GAR SPU-3MM
FEATURES:
GAR liquid and moisture indicators are constructed from a single forged brass monobloc with a riveted sight glass to ensure a perfect seal.
SPU models are equipped with a highly moisture-sensitive color changer, resistant to acids and compatible with all refrigerants.
These features allow safe and immediate control of the humidity level and the liquid state of the refrigerant fluid thanks to the color change of the card (yellow=humidity / green=dry).
Construction materials
Forged brass body CW 617N
Operating conditions
Temperature - 40°C + 70°C
Working pressure 42 bar
Applied standards: EN 378-2 97/23/CE (PED) 2002/95/EC (RoHS)
Product code: SPU-3MM
