Energy efficiency:

• Seasonal efficiency:
  -SEER: 8.70 / -SCOP average climate zone: 4.60
• Energy Efficiency Class (cooling): A+++
• Energy Efficiency Class (heating): A++
• Seasonal energy consumption kWh/year: cooling 103 - heating 852

Performance:

• Cooling (kW): 2.5 (0.89 / 3.8)
• Heating (kW): 3.2 (0.65 / 4.9)
• Air flow I.U. (sa.-a.-m.-b.) m³/min: 13.6/10.5/8.1/5.7/2.0
• Sound pressure level Int. (sa.-a.-m.-b.) (dB(A)): 40/19
• Sound pressure unit Est. Max (dB(A)): 49/51
• Acoustic power O.U. (a.): 65
• Absorbed cooling power (kW): 0.555
• Absorbed heating power (kW): 0.700

Electrical characteristics:

• Power (V/Hz/Φ): 230/1/50

Features:

• Refrigerant gas: R32 / 800 g.
• Liquid/gas pipe diameter: 6.35 (1/4") / 9.52 (3/8") mm
• ​​​​​​​Maximum pipe length with surcharge: 20 m
• Maximum height difference (outdoor unit above): 7 m

Dimensions and weight:

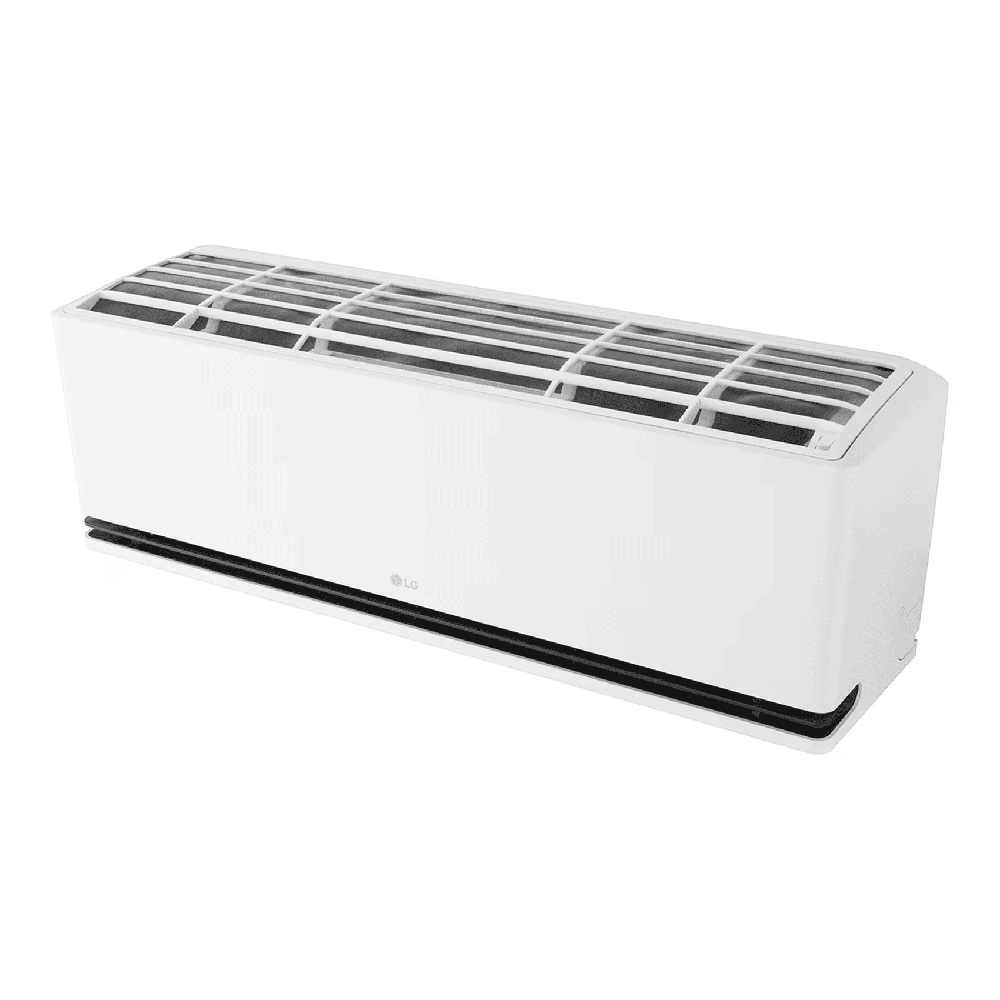

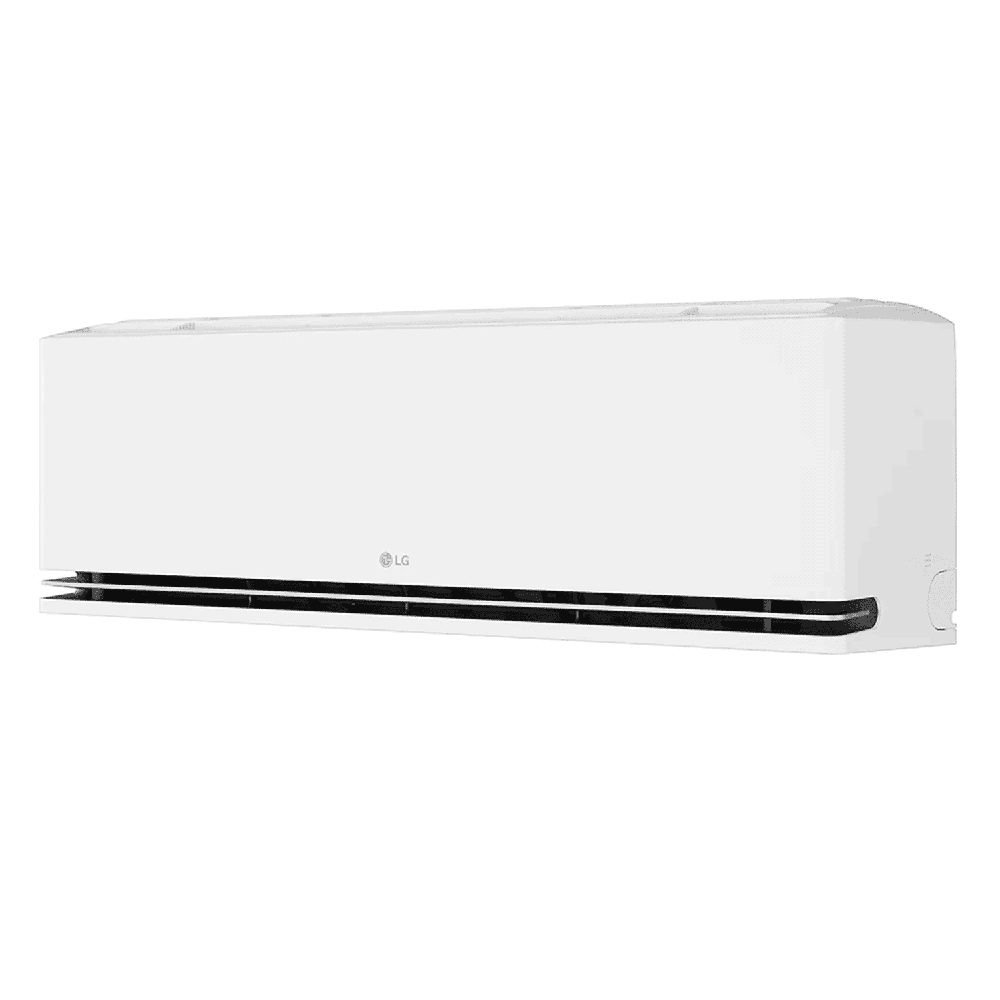

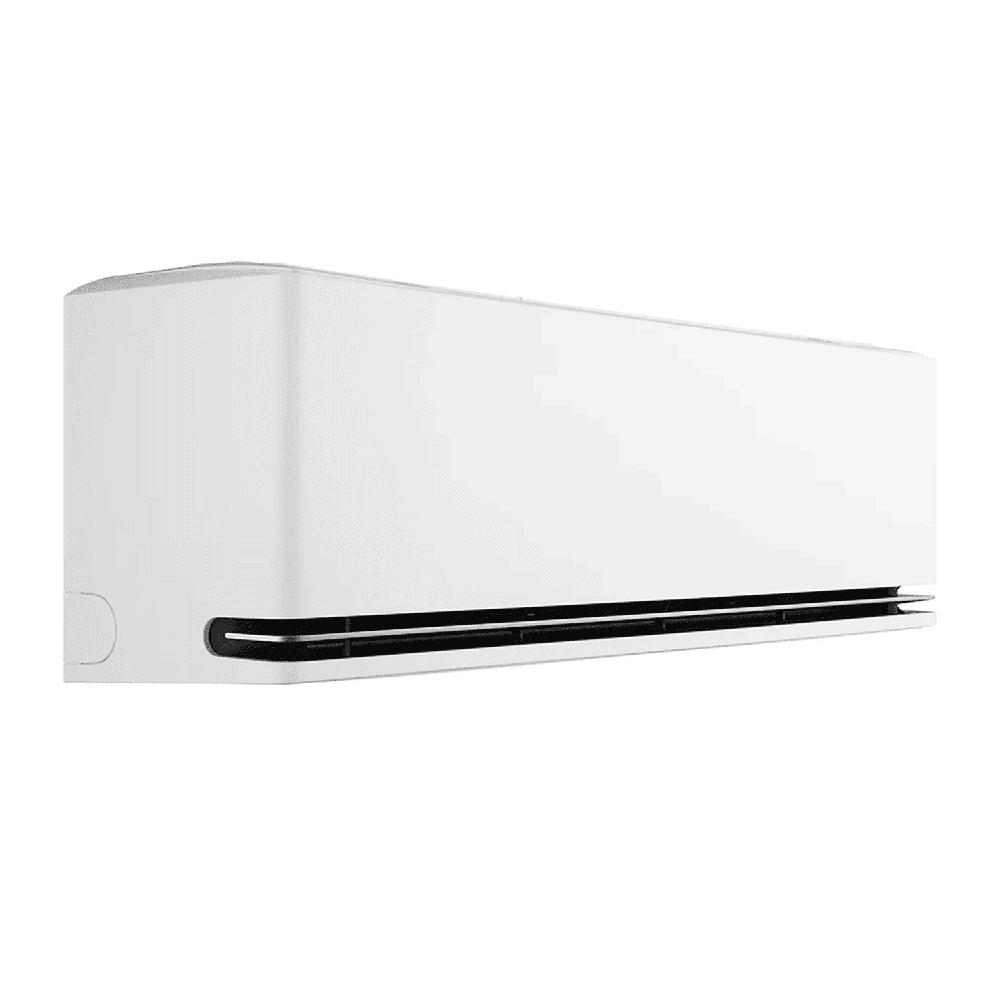

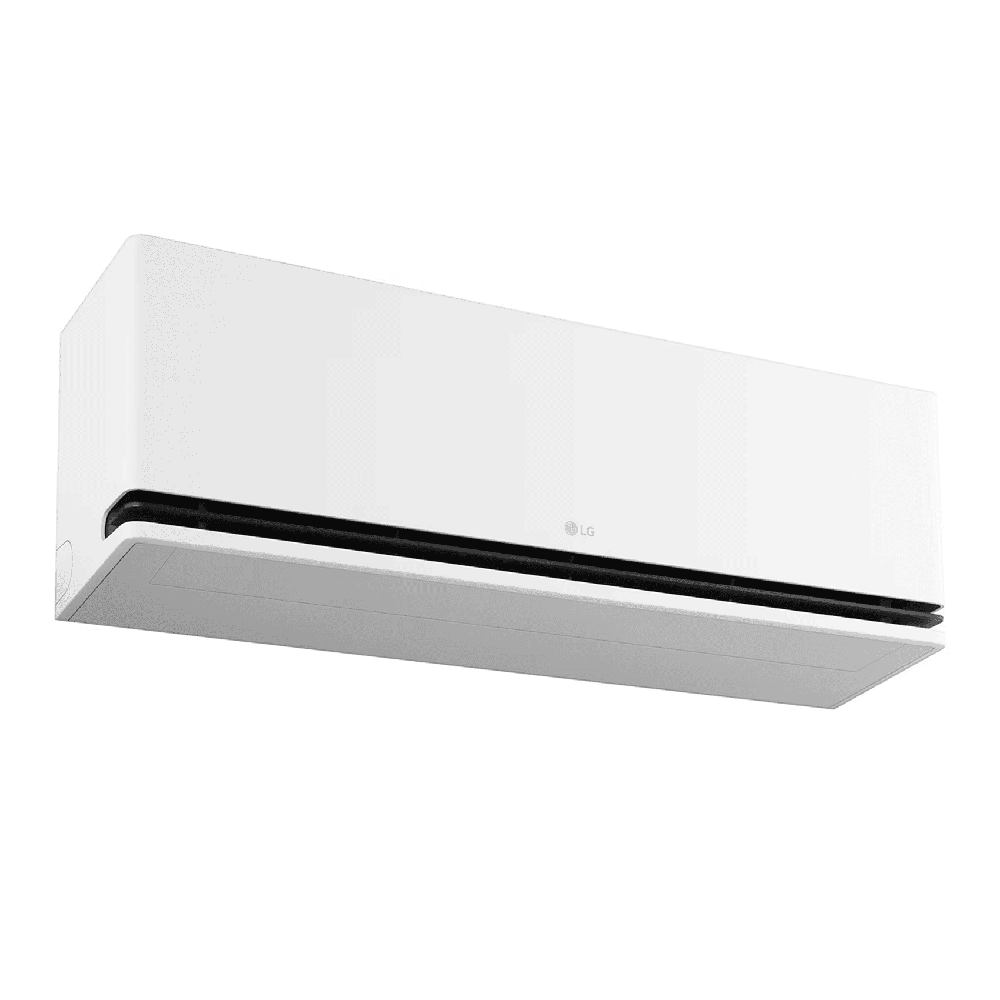

• Internal dimensions H x W x D (mm): 307 x 895 x 235; 11 kg
• External dimensions H x W x D (mm): 495 x 717 x 230; 25 kg

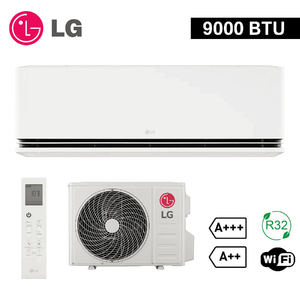

Product code: H09S1DA.NS1+H09S1DA.U12

As of July 25, 2019, in accordance with Decree 146/2018, companies selling fluorinated gases and non-hermetically sealed equipment containing them must make an electronic declaration of their sales to the Chamber of Commerce. This decree aims to monitor the sales of these gases in order to reduce emissions. Presidential Decree 146/2018 requires that, at the time of sale, the buyer declares whether they are purchasing as a certified installer, distributor/wholesaler, or end-user. For more information and to download the forms to be completed, please visit the dedicated page on our website by clicking on the following link:
