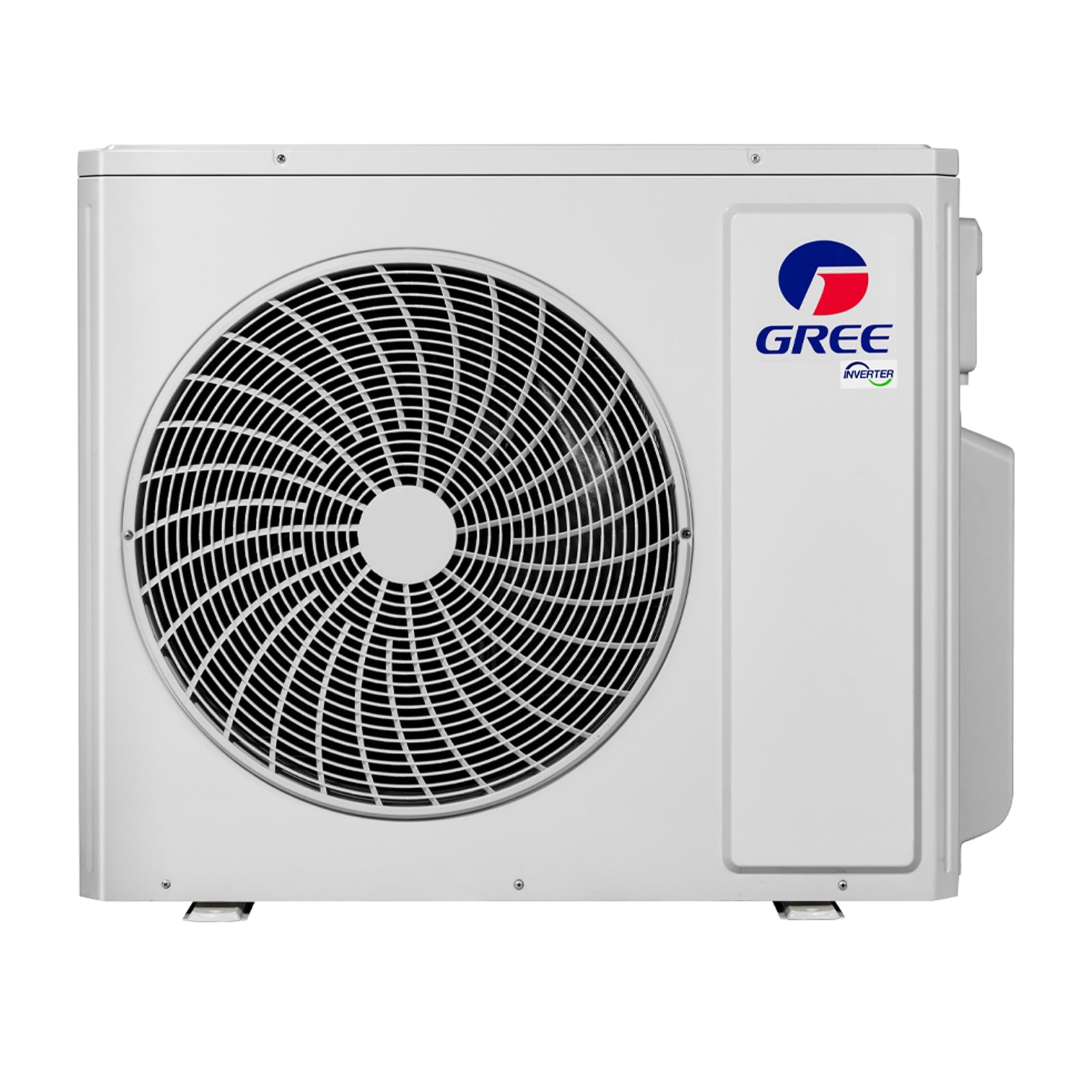

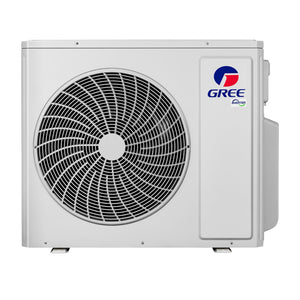

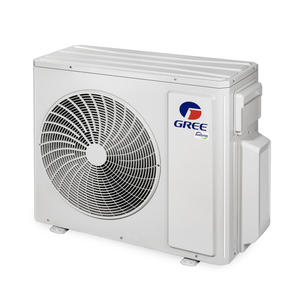

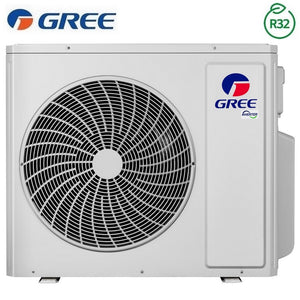

GWHD(36)NK6RO - Gree GWHD(36)NK6RO - Gree GWHD(36)NK6RO outdoor unit for multi-split systems with domestic hot water production

Description:
Can be combined with 4 indoor units in total, one of which is for DHW (SXTD200LCJW/A-K).

Model:

• Series: GREE MULTI SPLIT FREE MATCH Outdoor Unit + Domestic Hot Water
• Refrigerant: R32
• Outdoor Unit Model: GWHD(36)NK6RO (GREE10260)
• Type: Heat pump
• Power: 36,200 BTU cooling / 40,900 BTU heating – 10.6 kW / 12.0 kW

• Seasonal Efficiency:
  • SEER: 7.2
  • SCOP (average/warm/cold climate): 4.2
• Energy Efficiency Class (cooling): A++
• Energy Efficiency Class (heating): A+
• Seasonal energy consumption (average/warm/cold climate) kWh/year: 515 – 3675

Performance:

• Cooling capacity (kW): 10.6 (2.6 - 12.0)
• Heating capacity (kW): 12.0 (3.0 - 14.0)
• Air flow m³/h: 5800
• Sound pressure (dB(A)): 60
• Sound power (dB(A)): 70
• Power consumption in cooling mode (kW): 2.95
• Power consumption in heating mode (kW): 3.2

• Power (V/Hz/Φ): 230/50/1

Features:

• Refrigerant gas: R32 – 2.40 kg / 1.62 T.CO₂ eq.
• Liquid/gas pipe diameter (inches): 1/4” (6.35 mm) – 3/8” (9.52 mm)
• Maximum pipe length with standard charge: 3 to 40 m
• Maximum pipe length with additional charge: 80 m
• Maximum height difference (outdoor unit above): 15 m
• Operating limits (outdoor temperature):
  • Cooling: -15 °C to +43 °C
  • Heating: -15 °C to +24 °C

Dimensions and weight:

• External dimensions (H x W x D): 826 x 1020 x 427 mm
• Net weight: 72 kg (without packaging)

Gree by Argo
GREE brand products are imported and guaranteed in Italy by ARGO, a historic Italian company active in the air conditioning sector since 1929. Assistance is guaranteed throughout the country by authorized ARGO centers.

Product code: GWHD(36)NK6RO
