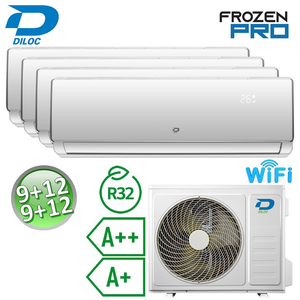

DILOC ZATORE air conditioner
Frozen PRO 9+9+12+12 Btu

Heat pump R32 class A++/A+ - Integrated WiFi

Smart Wi-Fi function: It is possible to control the air conditioners via tablet, iPad and smartphone. You can manage all product functions. style="background-color:#FFFFFF;">

Template:

• Series: Frozen PRO

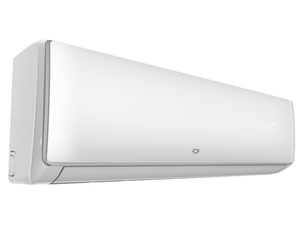

• Internal unit model: FRPRO.25S and FRPRO.35S

• External unit model: FRPRO.93Q

• Type: heat pump

• Cooling capacity: 32000 BTU/h (10600~35000) - 9.4 kW (3.1~3.1) style="background-color:#FFFFFF;">10.2)

  Heating capacity: BTU/h 32000 (8700~35000) - Kw 9.5 (2.6) ~ 10.2) Play

•

Energy efficiency:

• Seasonal efficiency:
  SEER / SCOP (average climate): 6.1 / 4.0

• Energy efficiency class (cooling): A++

• Energy efficiency class (heating): A+/A++

  Performance:

Internal air flow unitFRPRO.25S m³/h max: 420

• Internal sound pressure unit. FRPRO.25S (dB(A)): 40-37-33-25-22

• • Internal air flow unit. FRPRO.35S m³/h max: 550

  • Internal sound pressure unit. FRPRO.35S (dB(A)): 40-37-33-25-22

• Estimated max sound pressure unit (dB(A)): 70

• Cooling power consumption: 2,765 watts (410~3,500)

  Heating power consumption: 2,200 W (770~2,750)

Electrical data:

• Power (V/Hz/Φ): 230/50/1

  Features:

• Refrigerant gas: R32 / 2.2 kg

• Liquid/gas pipe diameter (inches): 1/4 - 3/8"

• Maximum pipe length: 80 m

• Maximum height difference (external units above): m 10

•
• Dimensions and weight:

• External unit LxWxH (mm): 990x340x910; 68.0 kg unpacked

• Unit; Internal dimensions FRPRO.25S L x W x H (mm): 698 x 190 x 255; 6.5 kg unpacked

• • Internal unit dimensions FRPRO.35S L x W x H (mm): 777 x 201 x 250; 6.5 kg unpacked


Support and Warranty
Assistance is provided. guaranteed by Diloc centers throughout the national territory.
