Air Conditioning Condensate Removal Pump Silent+ MINI ORANGE - Aspen Pumps

Description:

The world's number one mini orange pump is now better than ever. Thanks to our proven 5th generation technology, the Silent+ Mini Orange pump operates at a noise level of just 16 dB(A)*. So quiet, it eliminates the need for additional noise or vibration dampeners. With its capacity sensor technology, it provides intelligent and adaptive flow rates. Brilliant in complete discretion.

Features:

• Proven 5th generation technology: Capacity sensing and rotational opening = Silence and power
• Low maintenance
• Plug & Play cable**
• Max. flow: Max. 35 L/h
• Max. previous head: Max. head 10 m
• Noise: up to 16 dB(A)*

Specifications:

• Maximum flow rate: 35 L/h at 0 m head
• Max. discharge head: 10 m
• Max. suction head: 1.5 m
• dB(A): 16 dB(A)*
• Power supply: 100-250 V AC, 0.18 A, 2.4 W, 50/60 Hz
• Power supply: Continuous
• Class: II
• Maximum consumption: 40 kW (136,000 Btu/h)
• Max. water temperature: 40 °C (104 °F)
• Inlets: 16 mm (5/8")
• Outlets: 6 mm (1/4")
• IP rating: IP24
• Safety switch: 5.0 A, normally closed
• Self-priming: ✓

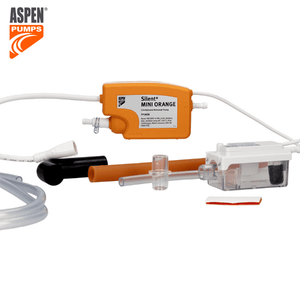

Packaging:

• 5th Generation Silent+ Mini Orange pump
• Reservoir (filter and lid included)
• 1.5 m Plug & Play cable**
• 1.5 m transparent PVC hose
• 150 mm transparent vent pipe
• 220 mm orange inlet hose
• Drain connection kit: straight connector and rubber elbow
• Quick Guide

Product code: FP3430
