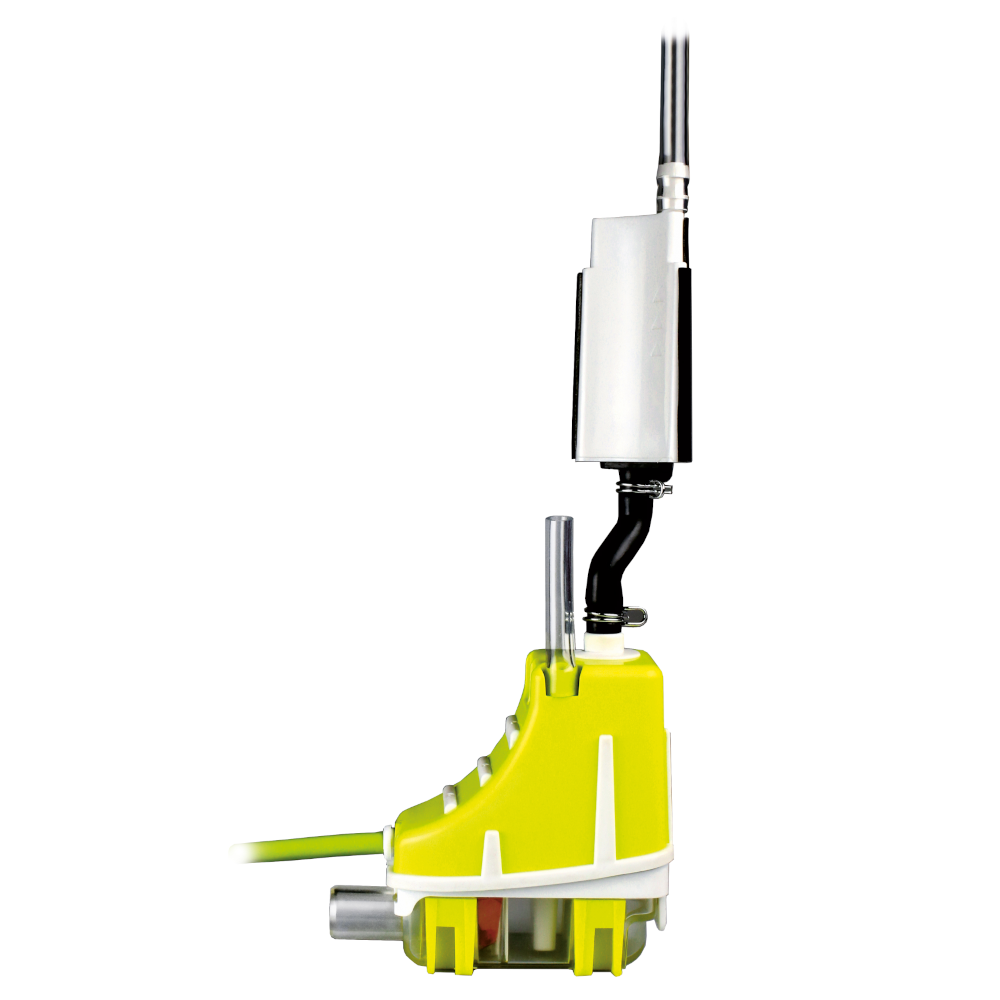

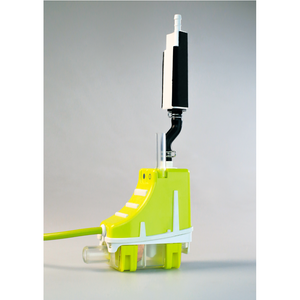

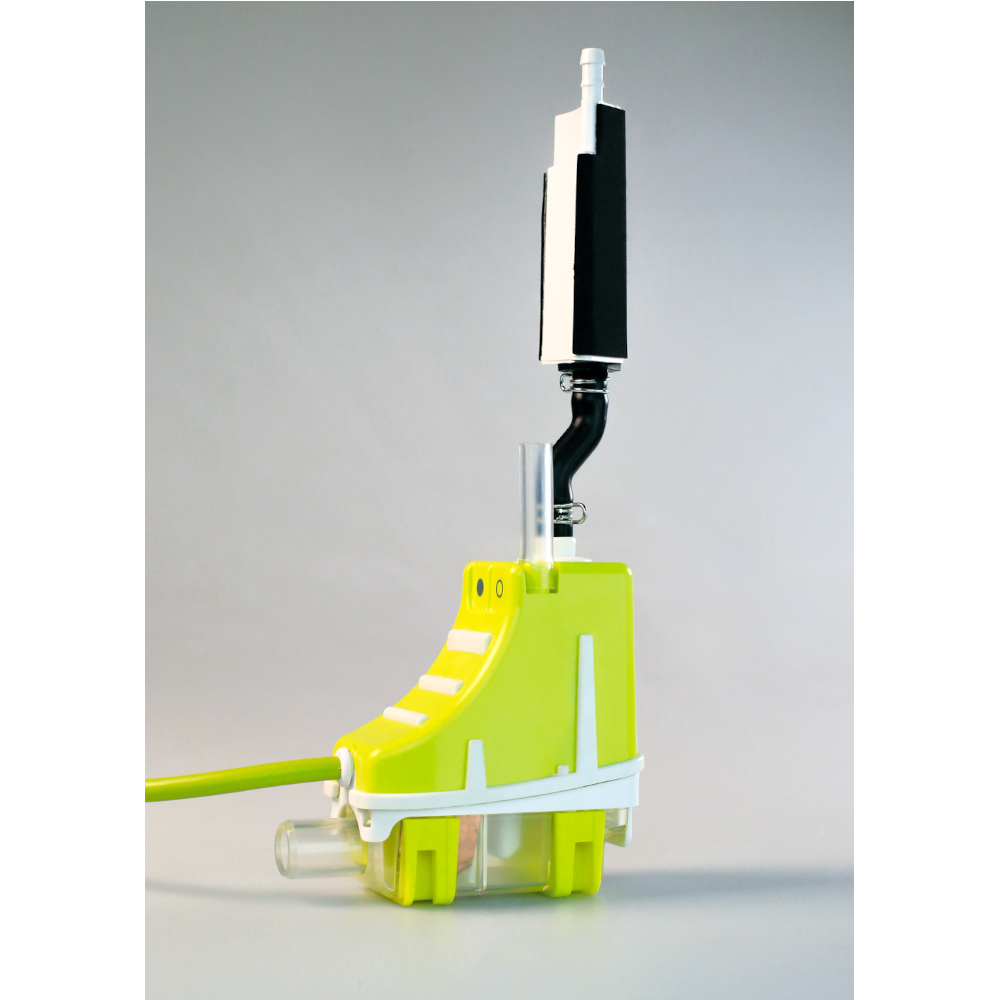

Aspen Pumps Silent+ Mini Lime Pump
for air conditioning with pure white ducting

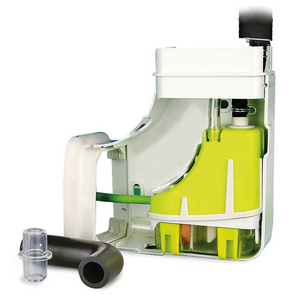

The Silent+ Mini Lime pump was the first revolutionary “all-in-one” system featuring a single-piece pump concealed in a corner of the ducting and many features for truly silent operation. Ideal for offices and meeting rooms. (Also available as a “pump only” configuration).

Features:

• Noise reduction device

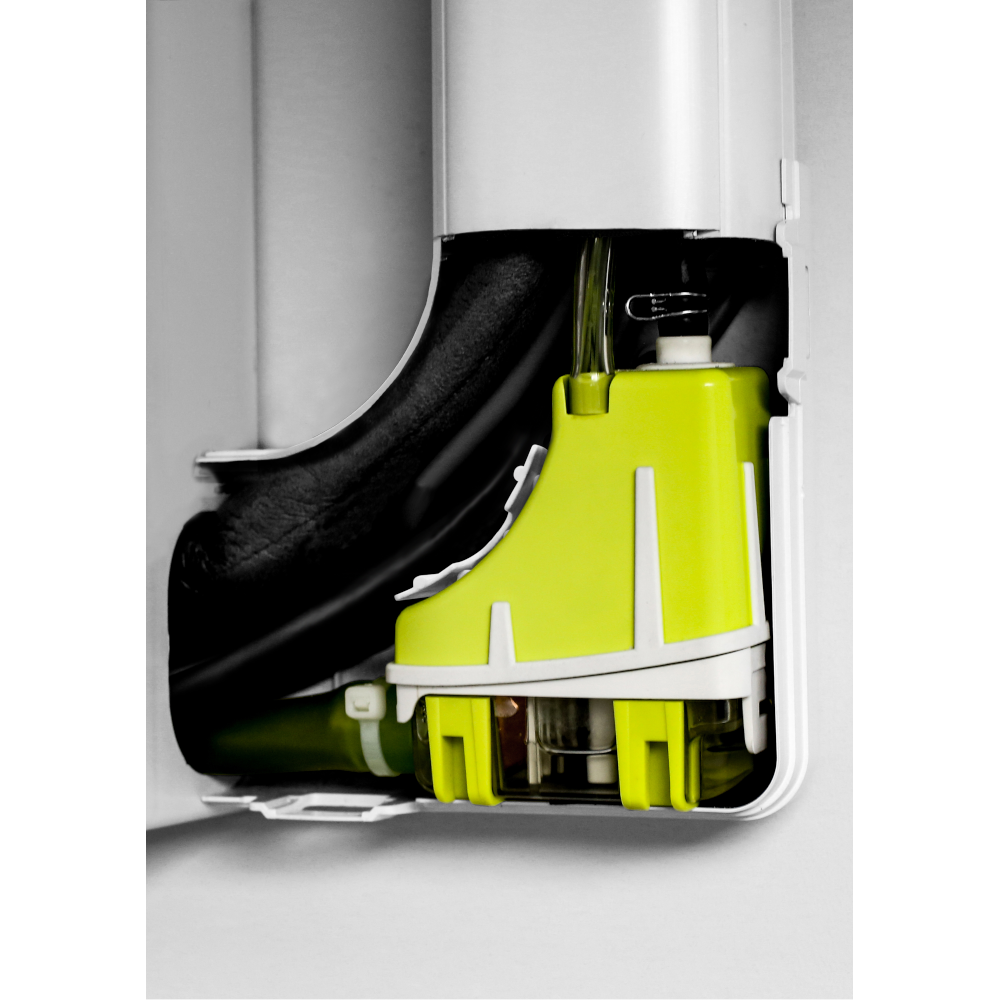

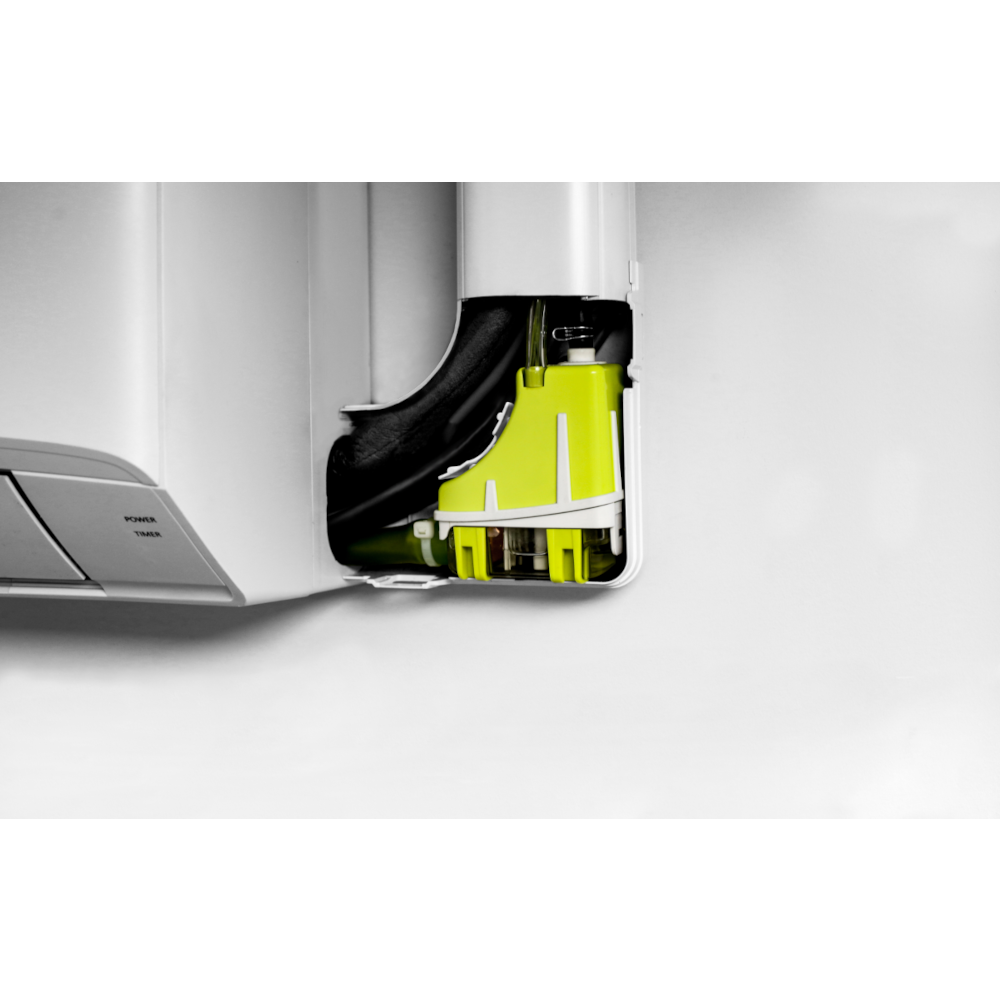

• Pump is installed in the elbow fitting

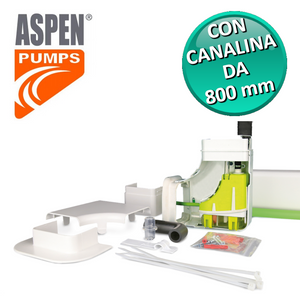

• Range of fitting systems

Specifications:

Model: 230 V AC, 0.1 A, 16 W, 50/60 Hz
Max flow: 12 l/h with 0 head
Max. Delivery head: 10 m
dB(A): 20 (with solid masonry and 2 kW unit)
Power supply: 230 V AC, 0.1 A, 16 W, 50/60 Hz
Power: Non-continuous
Class: Class II
Maximum consumption: 16 kW
Max. Water temperature: 40 °C / 104 °F
Drain hose: 6 mm
IP rating: IP24
Safety switch: 5.0 A N.C. / N.O. (5.0 A dry contacts with normally closed/normally open contacts. Factory setting in normally closed mode)
Thermal protection: ✓
Self-priming: ✓

Product code: FP3319/5
