Compact magnetic under-boiler water separator filter
< span> T-MAG MINI TIEMME - heating system
FEATURES:

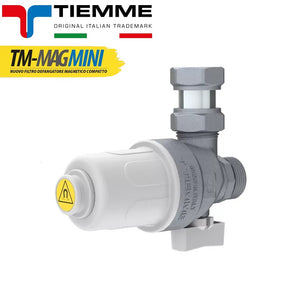

TM-MAG MINI . Compact magnetic dirt separator filter under the boiler, equipped with a ball shut-off valve and a connection fitting to the boiler.
Filter connections threaded 3/4"M x 3/4'M.
Connection fittings with swivel 3/4'F x 3/4'F.
CW 617N nickel-plated brass body.
Filter cartridge cup holder in PA6.6 + 30% fiberglass.
EPDM elastomer O-ring.
AISI 304 stainless steel filter cartridge.
PVC filter cartridge cap.
Neodymium magnet 12,000 Gauss.
< span style=' font-size: 12pt;'> Fitting with swivel in nickel-plated brass CW 617N.
MF threaded connections UNI-EN-ISO 228.
Compatibility; water liquids and glycol solutions (maximum percentage of glycol 30%).
Operating temperature range 0 ÷ +90 °C.
Maximum operating pressure 6 bar.
Filtration degree filter mesh 800 µm.
< style p ='text-align: justify;'> Available size: 3/4'.
Product code: 3150039< /span >
