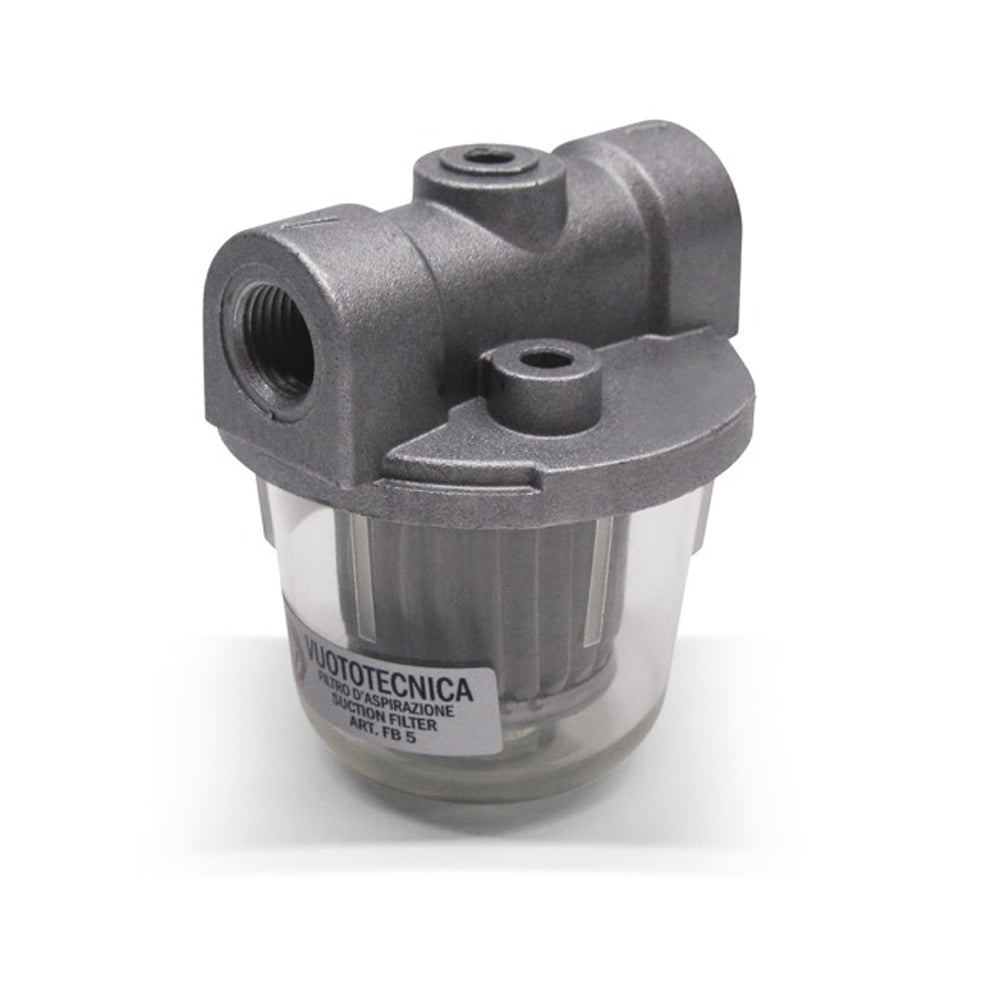

IN-LINE SUCTION FILTER

CONNECTIONS 1/4' x 1/4' female gas threads

with stainless steel mesh filter cartridge

Description:

Preventing impurities from reaching the vacuum pump is a fundamental requirement to ensure excellent operation and a long service life. The filters in this series, placed on the suction port of vacuum pumps or on the lines of the systems, have this objective.
Constructed in a simple and rational way, they have threaded connections for installation and an easily opening lid, to allow quick cleaning of the filter cartridge.
The lid is made of transparent plastic material (cellulose acetate), particularly resistant to shocks.
The standard filter cartridges are made of a corrugated stainless steel mesh, with a filtration degree of 44 μ
The use of this model is particularly recommended in the presence of water and oil vapors or condensates

Technical characteristics

Operating pressure: from 0.5 to 3000 mbar absolute

Fluid temperature: -20 to +50 °C for filters with transparent plastic tray

<span style='line-height: 15px; font-size: 10pt;'>Filtration index: 44 μ</span>

Flow rate 5 mc/h

Product code: VTFB5
