CONFIGURATOR FOR INTELLICOMFORT+ SYSTEM

DESCRIPTION:

Configurator/programmer for commissioning the various devices that make up the Intellicomfort+ wireless thermoregulation system.

General features:

■ Power supply: 2 x 1.5V AAA/LR03 (mini-stylus) alkaline batteries;

■ Multi-language display;

■ Protection degree: IP40;

■ Operating temperature: 0 ÷ 50°C;

■ Storage temperature: -20 ÷ +70°C;

■ Casing type: in blue and white ABS;

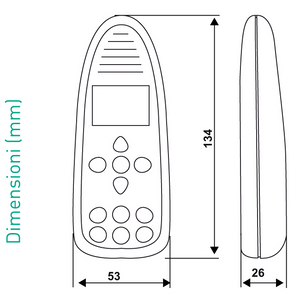

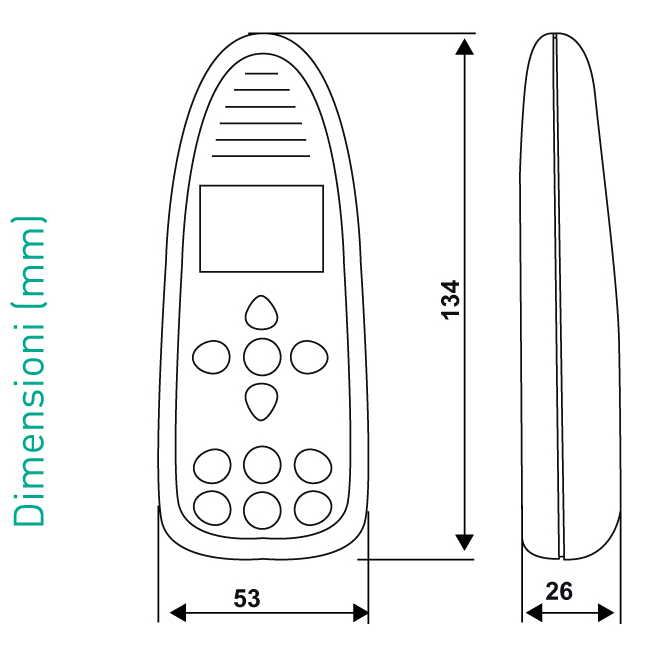

■ Dimensions: 134x53x26 mm.

Electrical features:

• Power supply: 2 x 1.5V AAA/LR03 (mini-stylus) alkaline batteries;

• Transmission frequency: 868 MHz;

• Maximum transmitted radiofrequency power < 10 mW.

Installation and operation

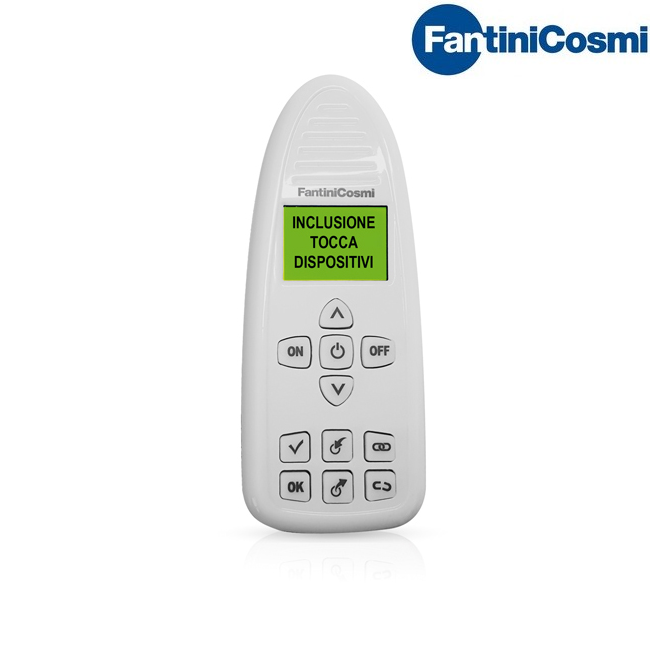

1590880 is a remote control equipped with a display with an interactive menu, for the programming necessary to commission the various devices that make up the Intellicomfort+ system:

• define the number of system zones,

• include or remove devices from the wireless network,

• identify the individual device in the wireless network,

• associate the various devices with the zone,

• check detailed diagnostics.

Product code: 1590880
