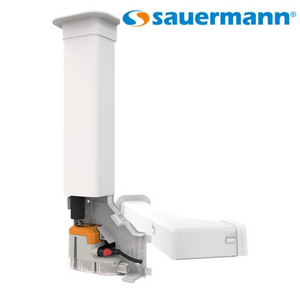

Sauermann Delta Pack Condensate Drain Pump

For split air conditioners with 80x60 white duct

Description:

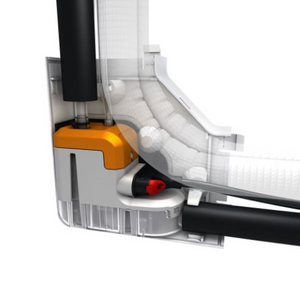

The Delta Pack 80x60 pump features an ergonomic elbow allowing easy manual opening with a simple press of a finger, without tools. Its minimalist design is perfectly suited for wall-mounted air conditioners. The kit includes the Si-10 UNIVERS® piston pump, incorporating Sauermann technology.

• ✓ Simplified installation and maintenance
• ✓ Optimized design
• ✓ Quiet operation: 22 dBA
• ✓ Proven reliability

Technical specifications:

• Maximum flow rate: 5 gph 20 l/h
• Maximum head: 10 m
• Maximum pressure: 14 m
• Insulation class: Double insulation
• Power supply: 230 V ~ 50/60 Hz ~ 14 W
• Operating conditions: 100%
• Protection rating: IPX4
• Color: RAL 9003
• Packaging: 5 units
• Safety switch: NC 8 A resistive - 250 V
• Detection: Integrated detection block

PUMP DIMENSIONS:

Pump: Length: 750 mm Width: 80 mm Height: 60 mm
Packaging: Length: 750 mm Width: 80 mm Height: 60 mm
