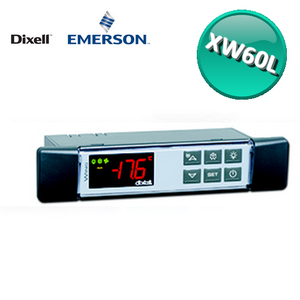

Digital controller for normal and low temperature with defrost and fan management
DIXELL >
Features:
It is a microprocessor controller, suitable for ventilated refrigerant drive applications at medium or low temperatures.
It has four relay outputs to control the compressor, hot gas or resistance defrost, evaporator and lighting fans.
They are equipped with 2 selectable NTC or PTC probe inputs, one for temperature control,
They are equipped with an output for programming the parameter list via the "Hot Key" programming key.
Here are the main features of the XW60L:
Dimensions
38x185mm
General
Power: 24, 110, 230 V AC
No. display digits: ± 3 d.p.
No. keyboard buttons: 6
Probe inputs
Thermostat: NTC/PTC
Defrost: NTC/PTC
Condenser: NTC/PTC
Display: NTC/PTC
Digital input
Alarm, defrost start, door micro, pressure switch, probe: configurable
DI 2: configurable
Relay outputs
Compressor: 8A / 20A
Defrost: 8A
Fans: 8A
Light: 8A, 16A
Other
Hot Key/programming toolkit: present
Serial output: TTL
Remote display output: optional X-REP
Buzzer: optional
Internal clock: optional
Product code: XW60L
