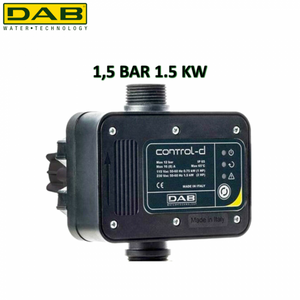

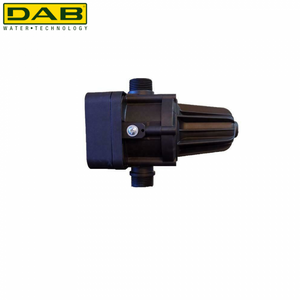

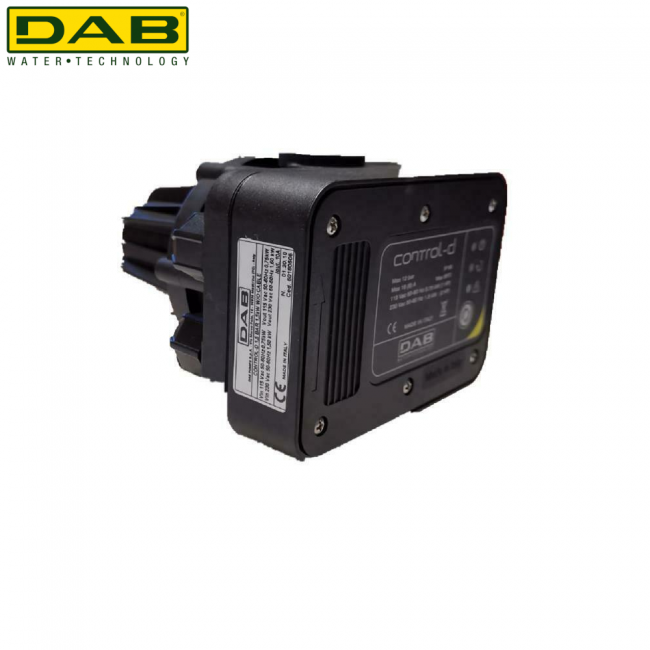

AUTOMATIC CONTROL - DAB CONTROL - D

FOR ELECTRIC PUMPS WITH 1.5 MT CABLE

Technical characteristics:

The control and protection starts and stops the pump, stops the pump in case of lack of water and protects it from dry running.
It is equipped with automatic resets in case of blockage and an anti-blocking function.
Automatic electronic device, intended to regulate the operation of electric pumps without using autoclave tanks, performs the following main functions: Controls the uninterrupted and automatic operation of the pump, with constant flow and pressure when drawing from one or more points of the distribution network.
The electric pump starts when the system pressure is below the fixed pressure (std 1.5 bar).
In case of lack of water in the suction, it blocks the electric pump without using level sensors or float switches.
Operation is restored by a manual reset button.
Or it unlocks automatically when a pressure higher than the set value for the start of the electric pump is introduced into the discharge pipe.
In case of blockage due to lack of water, this device performs automatic reset attempts equivalent to pressing the manual reset button, approximately every 30 min.

Product code: 60180508
