Description

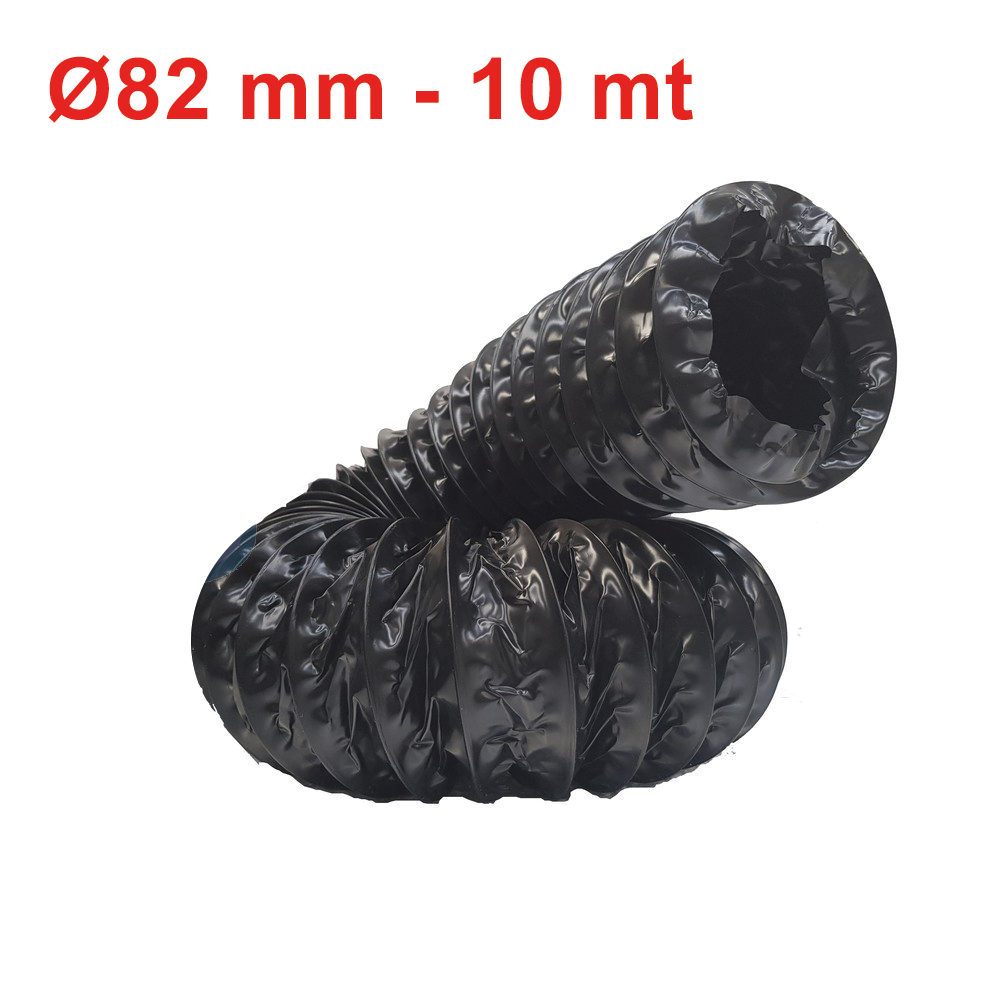

TEAR-RESISTANT DUCT MADE OF A HARMONIC STEEL SPIRAL

EMBEDDED IN A POLYETHYLENE LAYER

Ø 82 mm - 10 m roll

Flexible aluminum and polyester duct with acoustic insulation, class 1 - Ø 160 mm 10 m roll - 698051



Features:



  • Tear-resistant duct made of a harmonic steel spiral embedded in a polyethylene layer

  • Fire reaction class 1 (Ministerial Decree 26/06/84 art. 8)

  • CSI certification number 0081/16/RF< /p>

  • Approval number PD2229C20D100013

  • Diameter 82 mm

  • 10 m long pack

  • Operating temperature between -20 °C and +150 °C< /span >

  • Maximum air flow speed 30 m/s

  • Maximum operating pressure 2,000 Pa



< div class='elementor-element Elementor-element-1a6a363 Elementor-widget Elementor-widget-woocommerce-product-title Elementor-page-title Elementor-widget-heading' style='display: var(--page-title-display) ; position : relative ; width: 1,504.03px; margin-bottom: 20px; color: #222222; font-family: -apple-system, system-ui, BlinkMacSystemFont, 'Segoe UI', Helvetica, Arial, sans-serif, 'Apple Color Emoji', 'Segoe UI Emoji', 'Segoe UI Symbol'; font-size: 17px;' data-id='1a6a363' data-element_type='widget' data-widget_type='woocommerce-product-title.default'>

F10

Flexible duct made with an additive polyolefin resin film and a harmonic steel wire spiral.

FEATURES

  • COLOR : Black
  • SIZES : from 10m standard
    < /li>
  • PRODUCTION DIAMETERS : from 80 to 406mm
  • OPACITY’ AND TOXICITY OF FUMES : Class F0 (NF F 16 - 101 - Tab. 4)
  • OPERATING TEMPERATURE : -20°C /+90°C (+ 110°C peaks)
  • BENDING RADIUS : 0.6 x ø
  • AIR SPEED’ : max 20m/sec
  • PRESSURE : max 200 mm approx
    • < li style='margin : 0px; padding: 0px; border: 0px;'>FIRE REACTION :

CLASS IT : Class 1 (Ministerial Decree 26/06/84)
Approval N°: RE1205C20D100005

CLASS FR : Class M1 (NF P 92-507:2004

CLASS EU : Class B-s1, d0 (EN 13501-1:2009) p>

Contributes to obtaining credits in the main international building sustainability assessment systems:

  • LEED : IP, EA, MR
  • WELL : MATERIALS, COMMUNITY
  • BREEAM : MAN, WST

CERTIFICATIONS

Fire reaction, Non-toxicity of fumes.

APPLICATIONS

Air conditioning, mechanical ventilation. Connection of vents and diffusers.



< span style='font-size : 12pt;'>Product code: CDTPLT.82





Description

TEAR-RESISTANT DUCT MADE OF A HARMONIC STEEL SPIRAL

EMBEDDED IN A POLYETHYLENE LAYER

Ø 82 mm - 10 m roll

Flexible aluminum and polyester duct with acoustic insulation, class 1 - Ø 160 mm 10 m roll - 698051



Features:



  • Tear-resistant duct made of a harmonic steel spiral embedded in a polyethylene layer

  • Fire reaction class 1 (Ministerial Decree 26/06/84 art. 8)

  • CSI certification number 0081/16/RF< /p>

  • Approval number PD2229C20D100013

  • Diameter 82 mm

  • 10 m long pack

  • Operating temperature between -20 °C and +150 °C< /span >

  • Maximum air flow speed 30 m/s

  • Maximum operating pressure 2,000 Pa



< div class='elementor-element Elementor-element-1a6a363 Elementor-widget Elementor-widget-woocommerce-product-title Elementor-page-title Elementor-widget-heading' style='display: var(--page-title-display) ; position : relative ; width: 1,504.03px; margin-bottom: 20px; color: #222222; font-family: -apple-system, system-ui, BlinkMacSystemFont, 'Segoe UI', Helvetica, Arial, sans-serif, 'Apple Color Emoji', 'Segoe UI Emoji', 'Segoe UI Symbol'; font-size: 17px;' data-id='1a6a363' data-element_type='widget' data-widget_type='woocommerce-product-title.default'>

F10

Flexible duct made with an additive polyolefin resin film and a harmonic steel wire spiral.

FEATURES

  • COLOR : Black
  • SIZES : from 10m standard
    < /li>
  • PRODUCTION DIAMETERS : from 80 to 406mm
  • OPACITY’ AND TOXICITY OF FUMES : Class F0 (NF F 16 - 101 - Tab. 4)
  • OPERATING TEMPERATURE : -20°C /+90°C (+ 110°C peaks)
  • BENDING RADIUS : 0.6 x ø
  • AIR SPEED’ : max 20m/sec
  • PRESSURE : max 200 mm approx
    • < li style='margin : 0px; padding: 0px; border: 0px;'>FIRE REACTION :

CLASS IT : Class 1 (Ministerial Decree 26/06/84)
Approval N°: RE1205C20D100005

CLASS FR : Class M1 (NF P 92-507:2004

CLASS EU : Class B-s1, d0 (EN 13501-1:2009) p>

Contributes to obtaining credits in the main international building sustainability assessment systems:

  • LEED : IP, EA, MR
  • WELL : MATERIALS, COMMUNITY
  • BREEAM : MAN, WST

CERTIFICATIONS

Fire reaction, Non-toxicity of fumes.

APPLICATIONS

Air conditioning, mechanical ventilation. Connection of vents and diffusers.



< span style='font-size : 12pt;'>Product code: CDTPLT.82





MARQUE by LINDAB srl

Tear-resistant duct consisting of a harmonic steel spiral embedded in a layer of polyethylene - Ø 82 mm, 10 m roll

CDTPLT.82

24,39 €
24,39 €
Tax included. Shipping calculated at checkout.
Delivery in 2 to 3 days
Fast delivery throughout Belgium. Free on orders over €200.
You have 30 days to return your product.
Free returns for any product not installed in its original packaging.
2-year warranty
Parts and labor covered. 24/7 STS technical support included.
