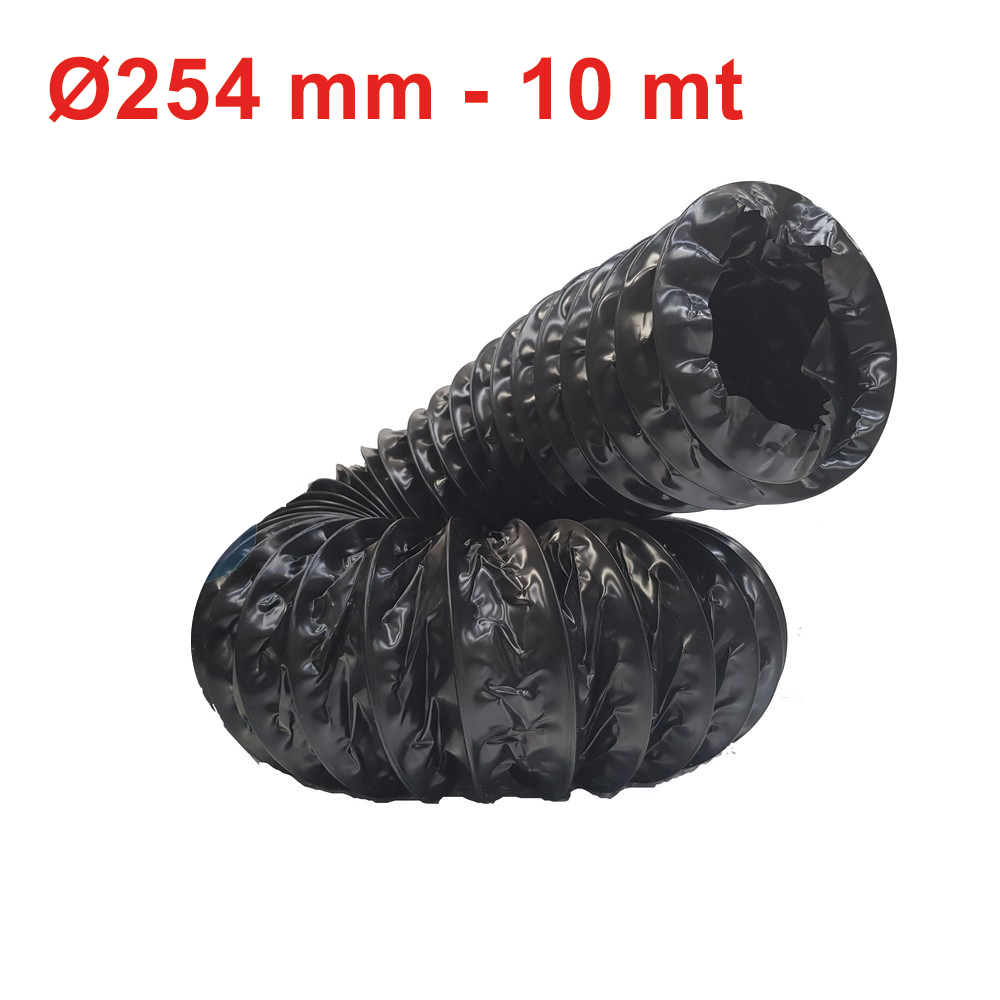

TEAR-RESISTANT DUCT MADE OF A STEEL SPIRAL
HARMONIC DROWNED IN A POLYETHYLENE LAYER
Ø 254 mm - 10 m roll
Features:
Tear-resistant duct made of a harmonic steel spiral embedded in a polyethylene layer
Fire reaction class 1 (Ministerial Decree 26/06/84 art. 8)
CSI certification number 0081/16/RF< /p>
-
Approval number PD2229C20D100013
-
Diameter 102 mm
-
10 m long pack
Operating temperature between -20 °C and +150 °C< /span>
Maximum air speed 30 m/s
Maximum operating pressure 2,000 Pa
Flexible duct made with an additive polyolefin resin film and a harmonic steel wire spiral.
FEATURES
- COLOR : Black
-
SIZES : from 10 m standard
< /li> -
PRODUCTION DIAMETERS : from 80 to 406 mm
- SMOKE OPACITY AND TOXICITY : Class F0 (NF F 16 – 101 – Tab 4)
- OPERATING TEMPERATURE : -20°C /+90°C (+ 110°C peak)
- CURVATURE RADIUS : 0.6 x ø
< /span > - AIR SPEED : maximum 20 m/sec
- PRESSURE : max 200 mm approximately < li style='marge : 0px; remplissage : 0px ; border: 0px;'>FIRE REACTION:
CLASS IT : Class 1 (Ministerial Decree 26/06/84)
Approval N° : RE1205C20D100005
CLASS EU : Class B-s1, d0 (EN 13501-1:2009)
Contributes to obtaining credits from the main international building sustainability assessment systems:
- <; span style='font-weight: bold;'>LEED: IP, EA, MR
- WELL: MATERIALS, COMMUNITY
- BREEAM: MAN, WST
CERTIFICATIONS
Reaction to fire, Non-toxicity of fumes.
APPLICATIONS
Air conditioning, mechanical ventilation. Connection of air vents and diffusers.
Product code: CDTPLT.254
