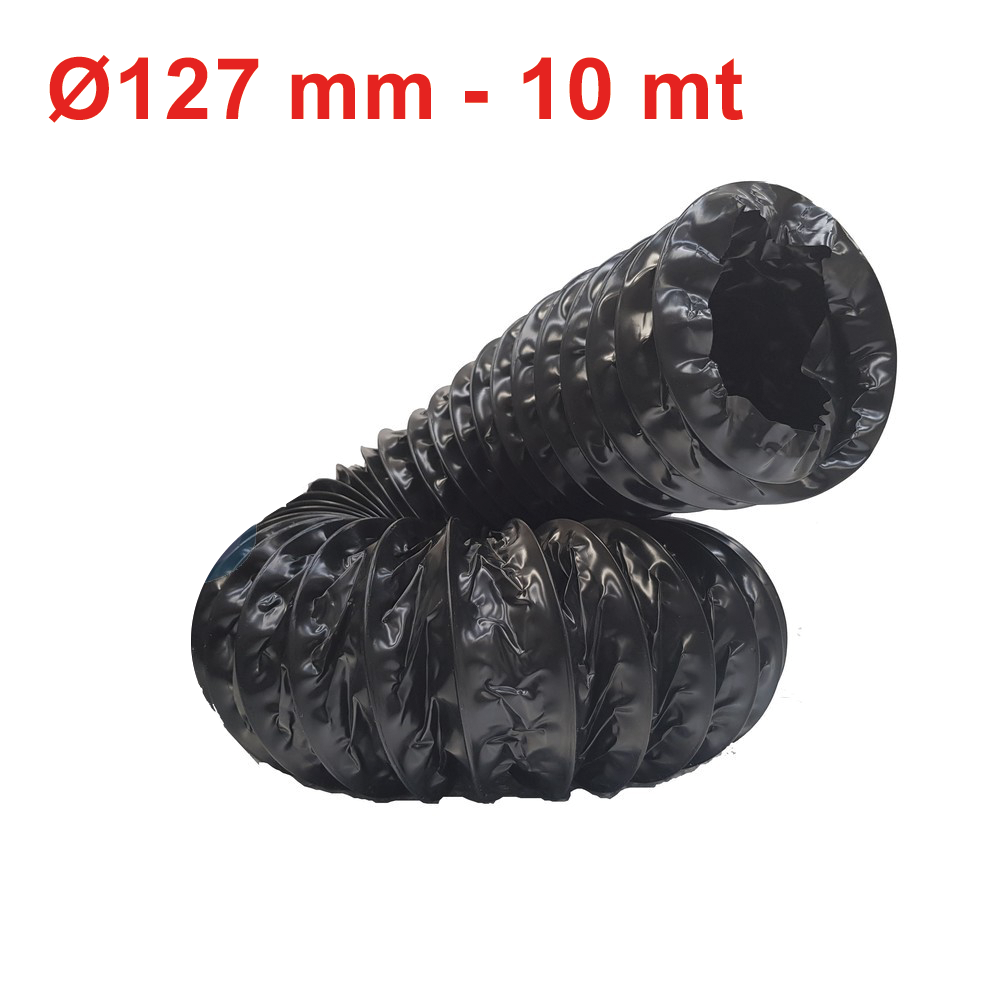

TEAR-RESISTANT DUCT MADE OF A STEEL SPIRAL
HARMONIC IMMERSED IN A POLYETHYLENE LAYER
Ø 127 mm - 10 m roll
Features:
Tear-resistant duct made of a harmonic steel spiral embedded in a layer of polyethylene
Class 1 fire reaction (Ministerial Decree 26/06/84 art. 8)
CSI Certification Number 0081/16/RF< /p>
-
Approval Number PD2229C20D100013
-
Diameter 127 mm
-
10 m long pack
Operating temperature between -20 °C and +150 °C< /span>
Maximum air flow speed 30 m/s
Maximum operating pressure 2,000 Pa
Flexible duct made with an additive polyolefin resin film and a harmonic steel wire spiral.
FEATURES
- COLOR: Black
-
SIZES: starting from standard 10m
< /li> -
PRODUCTION DIAMETERS: from 80 to 406 mm
- OPACITY AND TOXICITY OF FUMES: Class F0 (NF F 16 - 101 - Tab. 4)
- OPERATING TEMPERATURE: -20°C /+90°C (+ 110°C peaks)
- BENDING RADIUS: 0.6 x ø
- AIR SPEED: maximum 20 m/sec
- PRESSURE: max 200 mm approx < li style='margin: 0px; padding: 0px; border: 0px;'>REACTION TO FIRE:
CLASS IT: Class 1 (Ministerial Decree 26/06/84)
Approval N°: RE1205C20D100005
CLASS FR: Class M1 (NF P 92-507:2004
CLASS EU: Class B-s1, d0 (EN 13501-1:2009) p>
Contributes to obtaining credits from the main international building sustainability assessment systems:
- LEED: IP, EA, MR
- WELL: MATERIALS, COMMUNITY
- BREEAM: MAN, WST
CERTIFICATIONS
Reaction to fire, Non-toxicity of fumes.
APPLICATIONS
Air conditioning, mechanical ventilation. Connection of air vents and diffusers.
< span style='font-size : 12pt;'>Product code: CDTPLT.127
