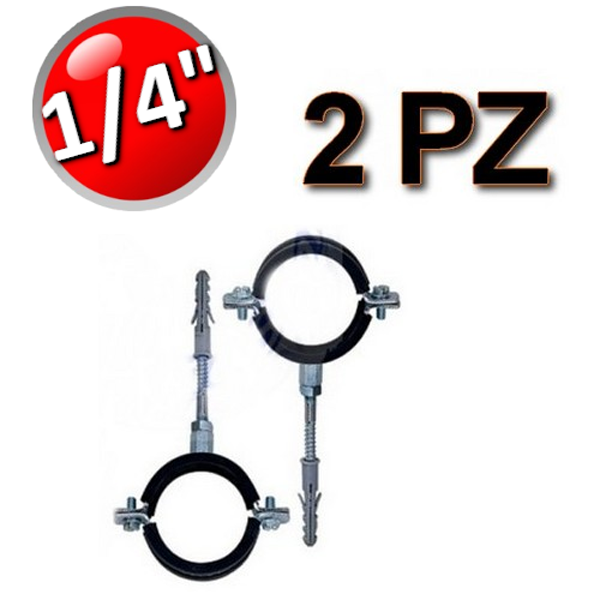

PAIR OF STEEL ISOPHONIC CLAMPS
FOR IRON/COPPER TUBES Ø 1/4″
COMPLETE WITH NYLON PLUGS
Isophonic steel clamp with pre-assembled rubber. Double thread M8 + M10, on the same welded nut, combined to offer maximum flexibility in supporting pipes of all sizes, Ø1/4″. The profiled rubber allows the expansion of the tube carrying high-temperature liquids or fumes, thus preventing friction noises on the clamp's sheet metal. Captive M6 side screws.
SPECIFICATIONS
Dowel length 60 mm
For pipes D. 1/4″
Width for thickness 19x1.8 mm
Hole diameter 10 mm
Connection M8x90
Side screws M6x20
Product code: 4699
