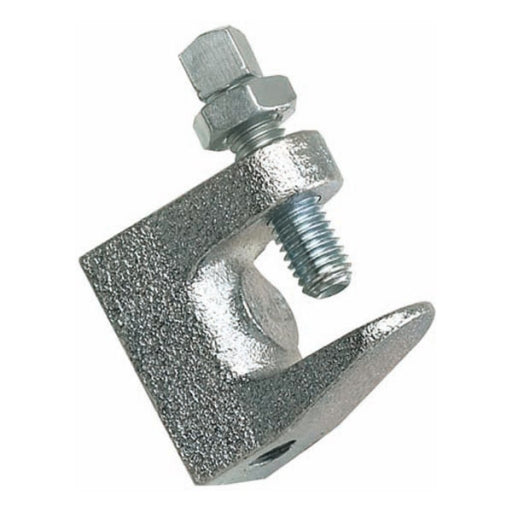

GALVANIZED CAST IRON CLAMP

ØM8

< img src=' alt='GALVANIZED CAST IRON CLAMP' />

TECHNICAL CHARACTERISTICS:

✓ A: 3-17 mm

✓ B: 35 mm

✓ C: 20 mm

✓ D: 36 mm

✓ E: 19 mm

• Galvanized malleable cast iron

• Electrolytic galvanization UNI ISO 2081:2018 sp. 6 &divide 9 [µm]

• Galvanized steel screw class 8.8

• Galvanized steel nut class 8

CHARACTERISTICS: cast iron clamp for fixing to the flanges of steel beams without the need for drilling or welding. Supplied complete with clamping bolt and lock nut.

USE: for creating hangers where the fastening material consists of steel beams. In this way it is possible to create support systems for the suspension of plumbing, electrical, air conditioning and duct systems. The indicated loads have a safety factor of elasticity of 4.

Product code: 14810
