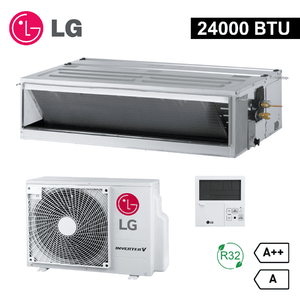

LG compact monobloc Inverter 24,000 BTU air conditioner

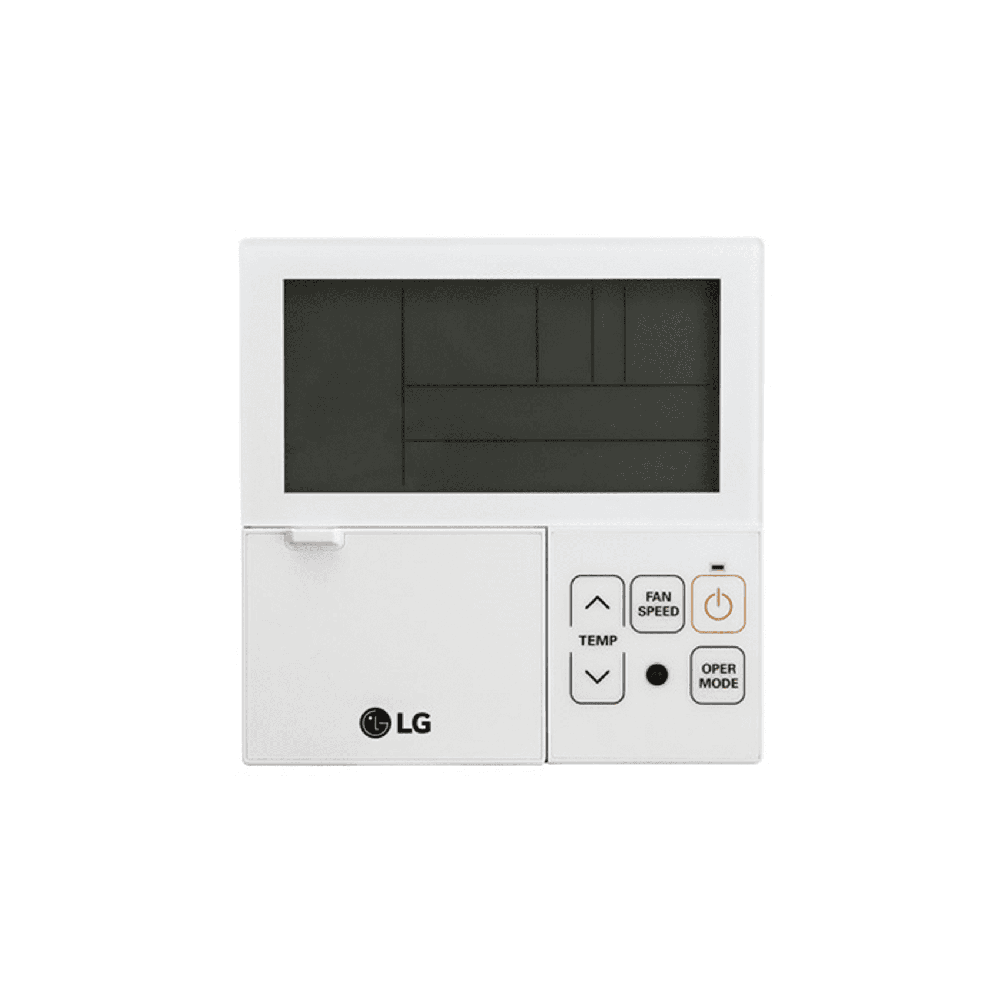

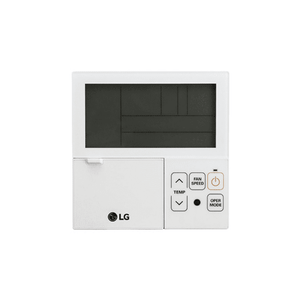

CM24F.N10 – UUB1.U20 - Medium power ducted unit - Wall control included

Series:

INVERTER COMPACT - with R32 refrigerant gas

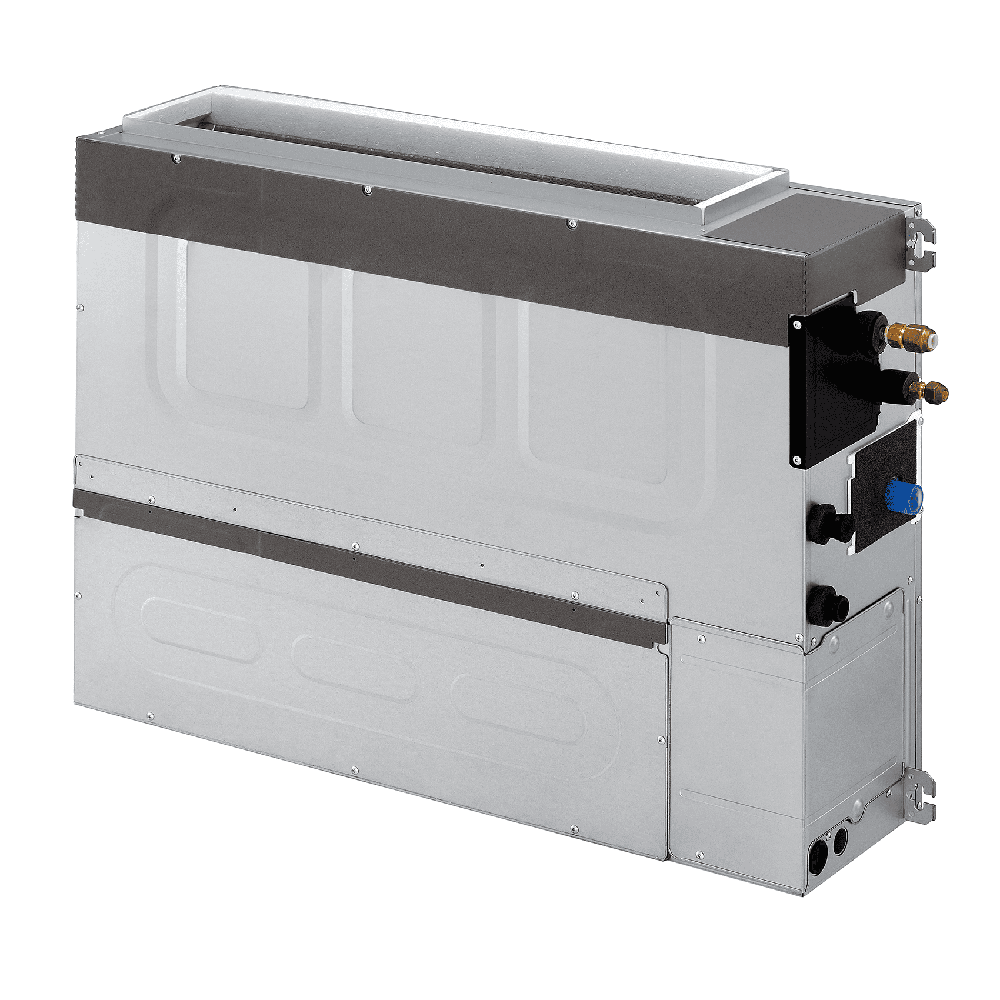

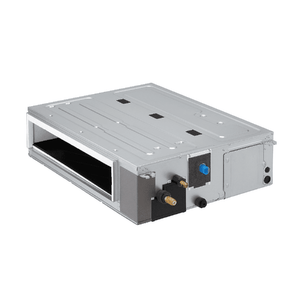

Internal model: CM24F.N10

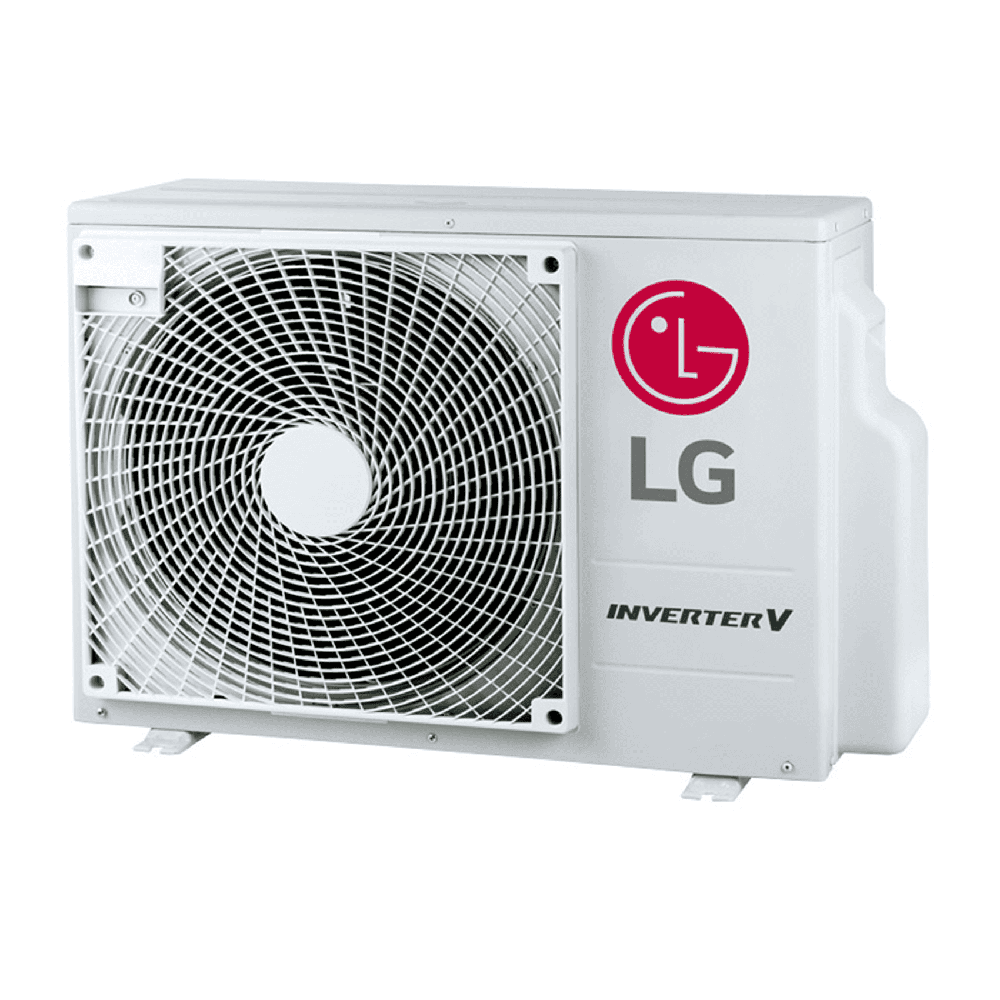

External model: UUB1.U20
Type: heat pump
Power: 24,000 BTU

Energy efficiency:

Seasonal efficiency:
-SEER: 6.8
-SCOP (average climate zone): 4.1
Energy efficiency class (cooling): A++
Energy efficiency class (heating): A
Seasonal energy consumption (kWh/year): cooling: 410; heating: 410 1400

Performance:

Cooling capacity (kW): 6.8 (2.7 / 7.5)
Heating capacity (kW): 7.4 (3.0 / 8.5)
Air flow (m³/min): 18 / 16.5 / 14.5
Internal unit sound pressure (sa.-a.-m.-b.) (dB(A)): 35 / 32
External unit Max sound pressure (dB(A)): 48 / 53
O.U. sound power (a.): 65
Absorbed cooling power (kW): 0.50 / 2.34 / 2.81
Absorbed heating power (kW): 0.40 / 2.17 / 2.82

Electrical characteristics:

Power supply (V/Hz/Φ): 230/1/50

Features:

Refrigerant gas: R32 / 1200 gr. / 0.81 TCO2
Liquid/gas pipe diameter: 9.52 (3/8") / 15.88 (5/8") mm
Maximum pipe length with supplement: 1200 mm
m 5 / 35
Maximum height difference (outdoor unit above) m 30

Dimensions and weight:

Indoor unit dimensions (H x W x D): 270 x 900 x 700; 24.6 kg
Outdoor unit dimensions (H x W x D): 870 x 650 x 330 mm; 44.5 kg
