Features:

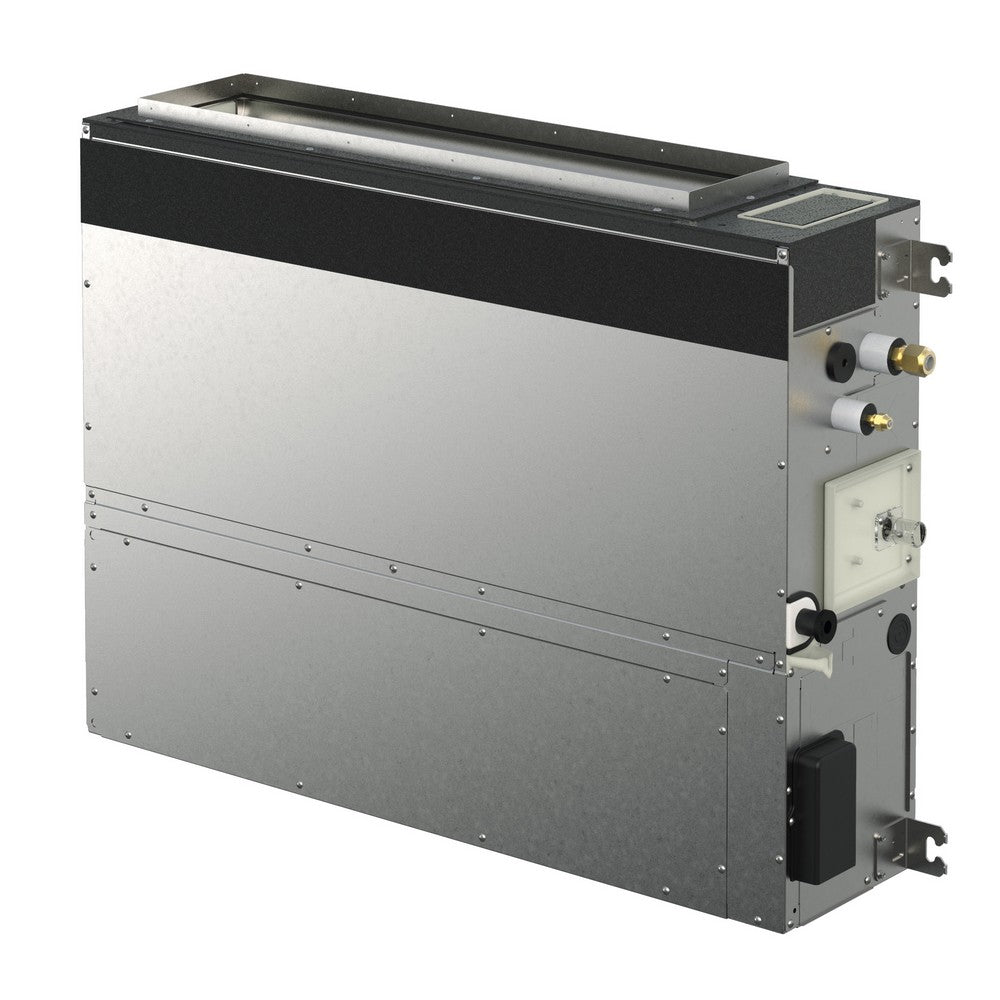

The new models have been completely redesigned to guarantee flexible installation in all types of commercial and residential environments. The units can be positioned both vertically and horizontally, allowing the air intake to be oriented to the rear or front of the unit by simply moving a cover panel.

Thanks to a height of just 250 mm, low ceilings are no longer a problem. These units can be easily installed in suspended ceilings lower than the standard.

The PF3 models can cover an external static pressure range of 10 to 150 Pa. They are quiet units, with minimum sound levels of just 22 dB (A) thanks to the improved fan design, ensuring smooth airflow for quiet operation.

Special features of the new range:
- Flexible installation: horizontal/vertical
- Only 250 mm high
- Maximum external static pressure: 150 Pa
- Selectable air intake position (rear/bottom)
- Improved drain pan, suitable for both horizontal and vertical installation
- Drain pump included
- Nanoe™ X (Mark 2 = 9.6 billion OH radicals/sec) included
- Also compatible with the new optional CONEX controllers: CZ-RTC6 (simplified control), CZ-RTC6BL (Bluetooth control), CZ-RTC6BLW (Bluetooth + wireless control)
- Eco mode, for 20% energy savings
- Compact indoor units (height of only 200 mm)
- Programmable weekly timer, with possibility to program 42 events per week
- Simplified control mode, for fault detection
- Drain pump included

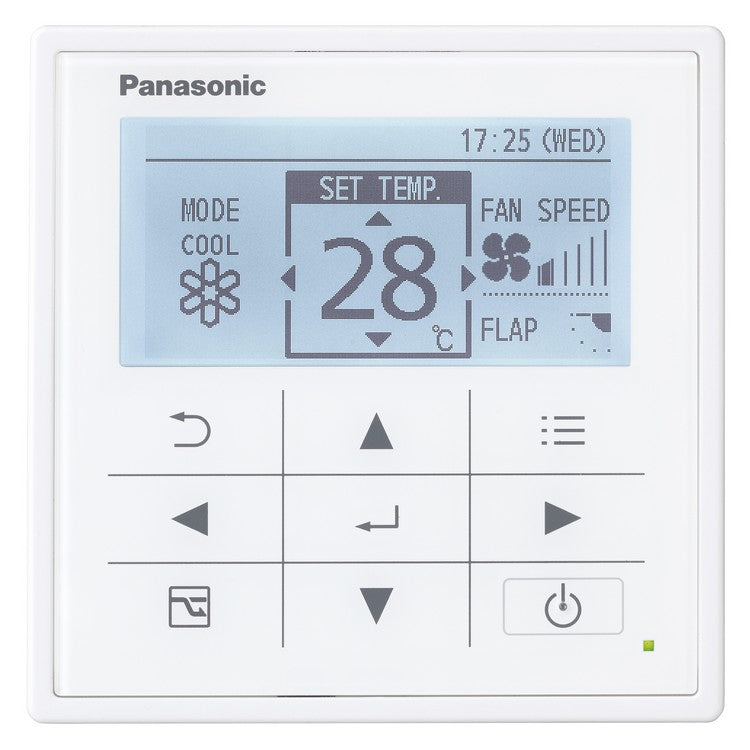

- Wired wall control model CZ-RTC5B included

Technical specifications

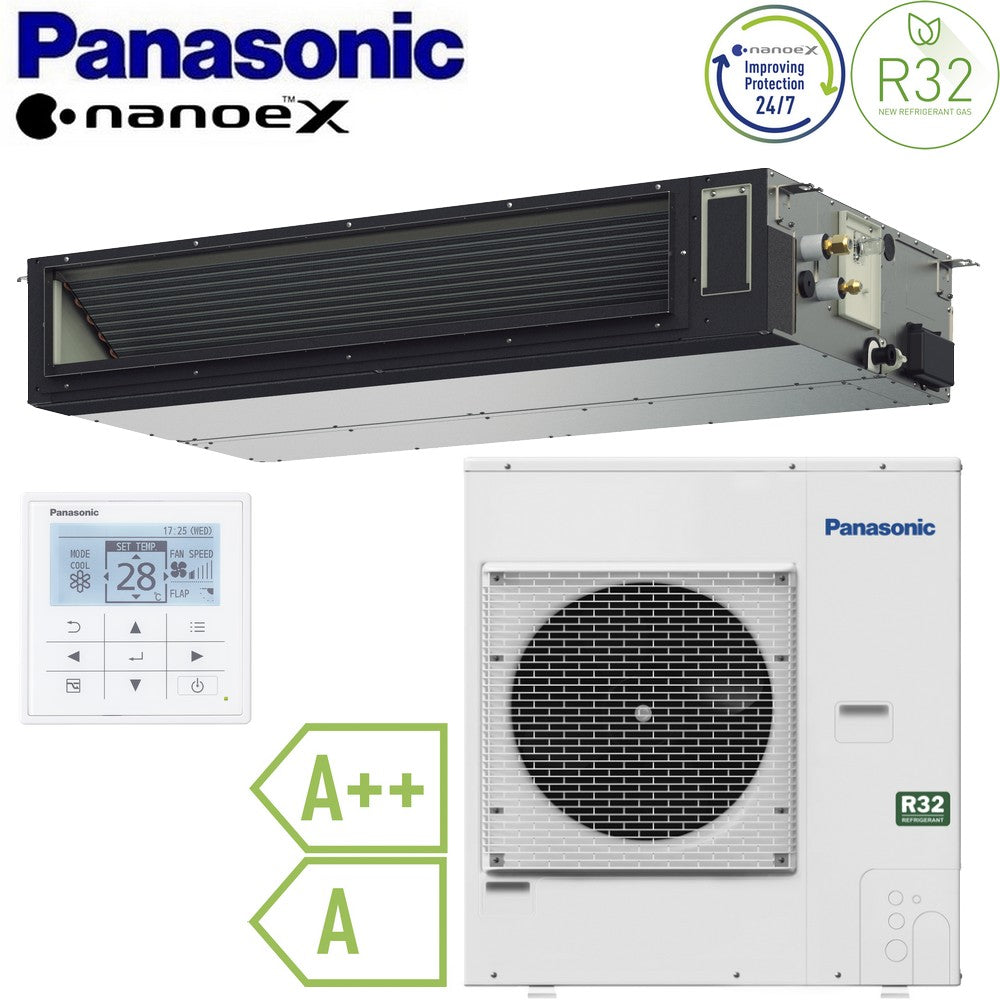

Model:

• Internal unit catalogue code: S-1014PF3E
• External unit catalogue code: U-125PZ3E5
• Included wall control code: CZ-RTC5B
• Power (BTU): 42000

Energy efficiency:

• SEER/SCOP (W/W): 6.6/3.9
• Energy efficiency class (cooling): A++
• Energy efficiency class (heating): A+
• Average annual consumption in cooling kWh/year: 502
• Average annual consumption in heating kWh/year: 2795

Performance:

• Nominal cooling capacity (kW): 12.1 (3.2/13.5)
• Nominal heating capacity (kW): 12.1 (3.3-15.0)
• Indoor unit sound pressure (dB-A): 35/31/27
• Outdoor unit sound pressure (dB-A): 55/55

Electrical data:
Power supply: 230 V

Features:
Refrigerant: R32

Guaranteed operating range:
Cooling C: -10 ~ +43
Heating C: -15 ~ +24

Dimensions:
Indoor unit WxHxD (mm): 250 x 1400 x 730; 39 kg
Outdoor unit WxHxD (mm): 996 x 980 x 370; 87 kg

Product code: KIT-125PF3Z5
