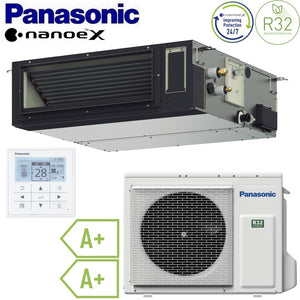

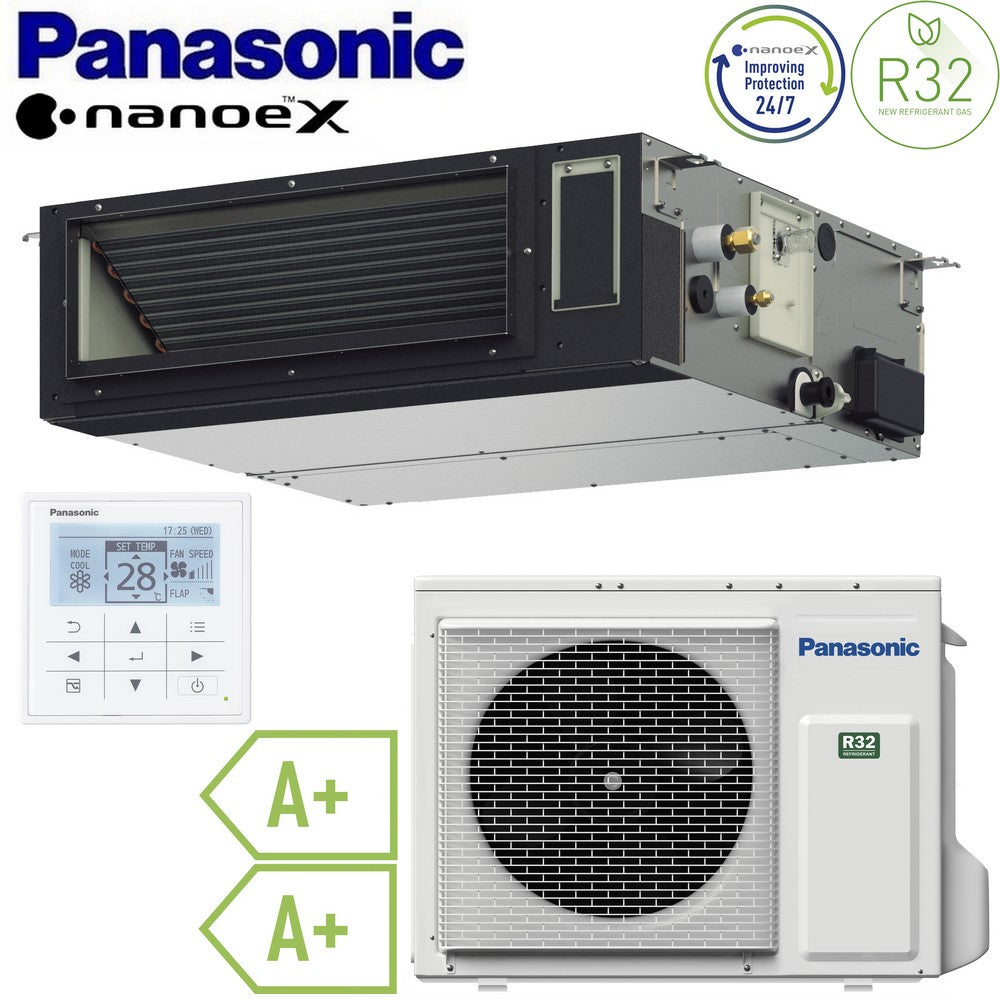

PANASONIC FLEXIBLE SINGLE DUCTED AIR CONDITIONER PF3 24000 BTU
INVERTER - heat pump - Class A+4+ horizontal/vertical installation - wall control included
INVERTER - heat pump - Class A+4+ horizontal/vertical installation - wall control included
Features:
The new models have been completely redesigned to ensure flexible installation in all types of commercial and residential environments. The units can be positioned both vertically and horizontally, allowing the air intake orientation to be changed to either the rear or front of the unit by simply moving a cover panel.
With a height of just 250 mm, suspended ceilings are no longer an issue. These units can be easily installed in ceilings lower than standard.
PF3 models can cover an external static pressure range of 10 to 150 Pa. They are quiet units, with minimum noise levels of just 22 dB (A) thanks to the improved fan design, ensuring smoother airflow for low-noise operation.
Special features of the new line:
The new models have been completely redesigned to ensure flexible installation in all types of commercial and residential environments. The units can be positioned both vertically and horizontally, allowing the air intake orientation to be changed to either the rear or front of the unit by simply moving a cover panel.
With a height of just 250 mm, suspended ceilings are no longer an issue. These units can be easily installed in ceilings lower than standard.
PF3 models can cover an external static pressure range of 10 to 150 Pa. They are quiet units, with minimum noise levels of just 22 dB (A) thanks to the improved fan design, ensuring smoother airflow for low-noise operation.
Special features of the new line:
- Flexible installation: horizontal/vertical;
- Height of only 250 mm;
- Maximum external static pressure: 150 Pa;
- Selectable air intake position (rear/bottom);
- Improved drain pan, suitable for horizontal and vertical installation;
- Drain pump included;
- Nanoe™ X (Mark 2 = 9.6 trillion OH radicals/sec) as standard;
- Environmentally friendly R32 refrigerant
- Ducted units can be controlled via KNX, EnOcean and Modbus
- Eco mode, for 20% energy savings
- Compact indoor units (height only 200 mm)
- Weekly programmable timer, with the ability to program 42 events per week
- Simplified control mode for fault detection
- Drain pump included

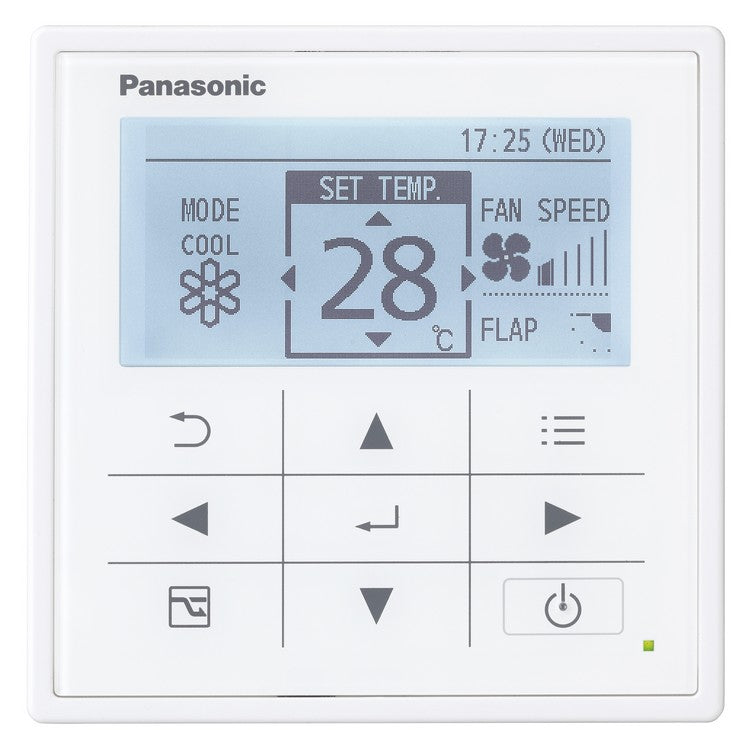

- Wired wall control model CZ-RTC5B included
Technical specifications
Model:
- Indoor unit catalog code: S-6071PF3E
- Outdoor unit catalog code: U-71PZ3E5A
- Included wall control code: CZ-RT5B
- Power (BTU): 24000
Energy efficiency:
- SEER/SCOP (W/W): 6.0/4.10
- Energy efficiency class (cooling): A+
- Energy efficiency class (heating): A+
- Average annual cooling consumption kWh/a: 391
- Average annual heating consumption kWh/a: 1591
Performance:
- Rated cooling capacity (kW): 6.8 (2.6/7.7)
- Rated heating capacity (kW): 6.8 (2.1-8.1)
- Indoor unit sound pressure (dB-A): 30/26/23
- Outdoor unit sound pressure (dB-A): 48/49
Electrical data:
Power supply: 230 V
Features:
Refrigerant gas: R32
Guaranteed operating range:
Cooling °C: -10 ~ +43
Heating °C: -15 ~ +24
Dimensions:
Indoor unit WxHxD (mm): 250 x 1000 x 730; 30 kg
Outdoor unit WxHxD (mm): 695 x 875 x 320; 50 kg
Product code: KIT-71PF3Z5
