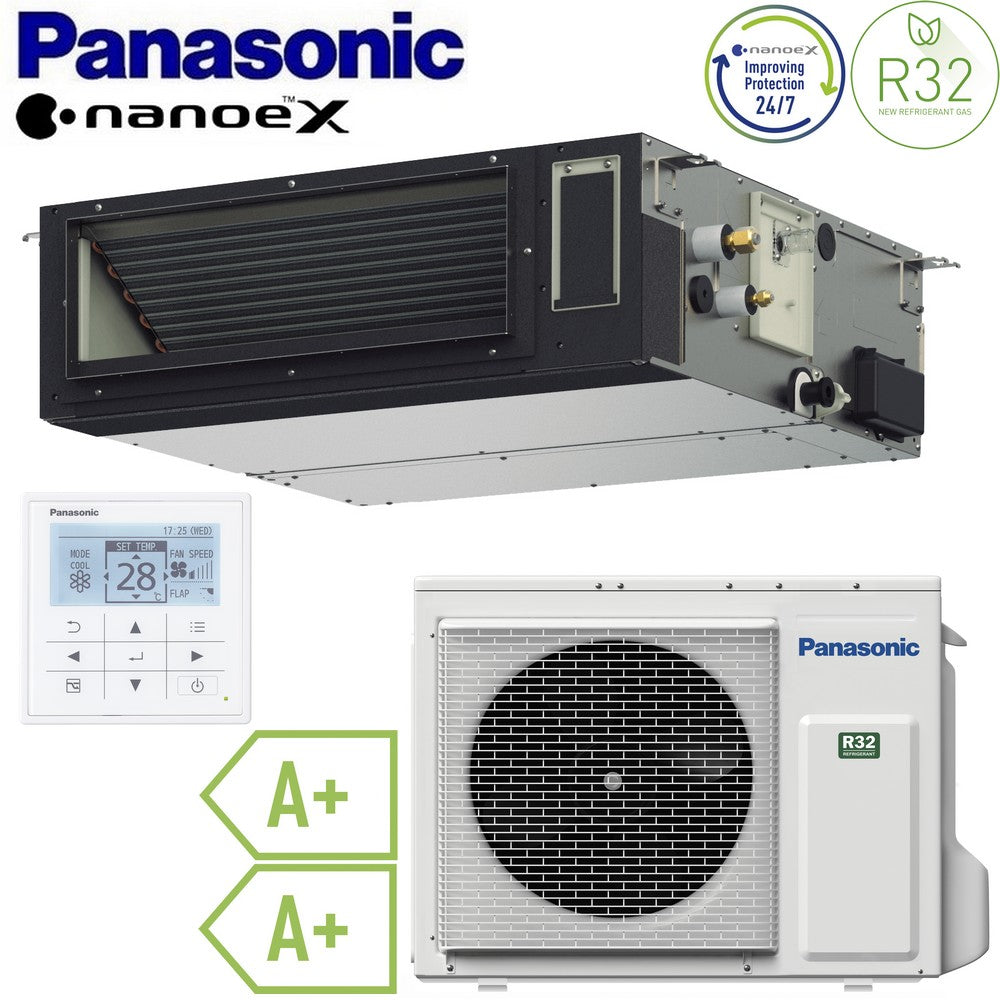

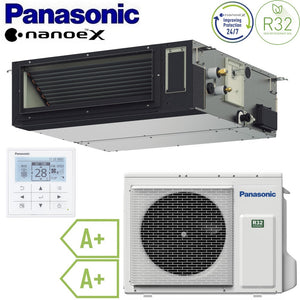

PANASONIC PF3 12000 BTU SINGLE-DUCT FLEXIBLE AIR CONDITIONING
INVERTER - heat pump - CLASS A+ horizontal/vertical installation - wall control included
INVERTER - heat pump - CLASS A+ horizontal/vertical installation - wall control included
Features:
The new models have been completely redesigned to ensure flexible installation in all types of commercial and residential environments. The units can be positioned both vertically and horizontally and allow the air intake orientation to be changed to the rear or front of the unit by simply moving a cover panel.
With a height of only 250 mm, ceilings are no longer a problem. These units can indeed be easily installed in ceilings lower than normal.
PF3 models can cover an external static pressure range from 10 to 150 Pa. These are quiet units, with minimum sound levels of only 22 dB (A) thanks to the improved fan design which ensures smoother airflow for quiet operation.
Highlights of the new range:
With a height of only 250 mm, ceilings are no longer a problem. These units can indeed be easily installed in ceilings lower than normal.
PF3 models can cover an external static pressure range from 10 to 150 Pa. These are quiet units, with minimum sound levels of only 22 dB (A) thanks to the improved fan design which ensures smoother airflow for quiet operation.
Highlights of the new range:
- Flexible installation: horizontal/vertical;
- Only 250 mm high;
- Maximum external static pressure: 150 Pa;
- Selectable air intake position (rear/bottom);
- Improved drain pan, suitable for horizontal or vertical installation;
- Drain pump included;
- Nanoe ™ X (Mark 2 = 9.6 trillion OH radicals/sec) included;
- Eco-friendly R32 refrigerant
- Ducted units can be controlled via KNX, EnOcean and Modbus
- Eco mode, for 20% energy saving
- Compact indoor units (height of only 200 mm)
- Programmable weekly timer, with the possibility of programming 42 events per week
- Simplified control mode, for detecting possible faults
- Drain pump included

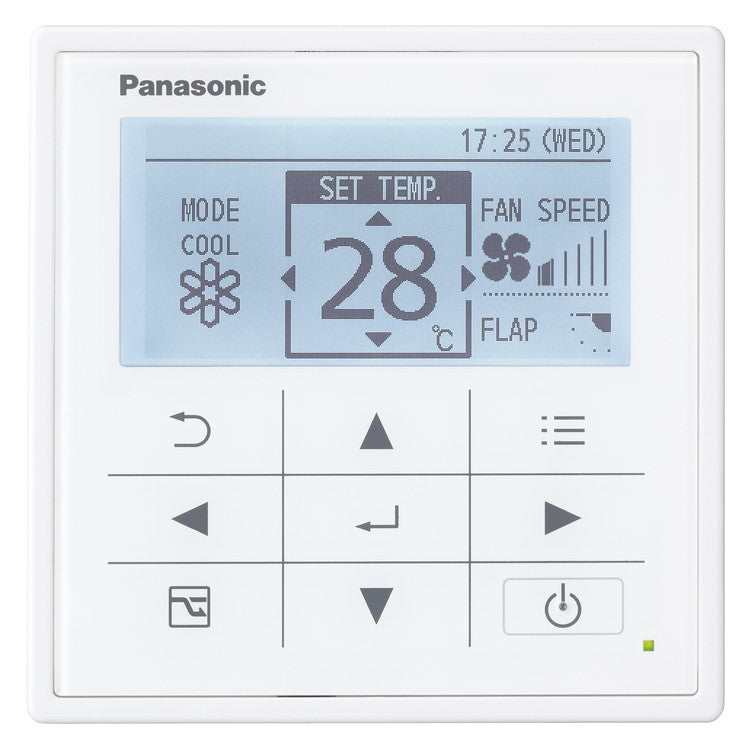

- CZ-RTC5B wired wall control included
Technical specifications
Model:
Model:
- Indoor unit catalog number: S-3650PF3E
- Outdoor unit catalog number: U-36PZ3E5
- Included wall control code: CZ-RT5B
- Power (BTU): 12000
Energy efficiency:
- SEER/SCOP (W/W): 6.0/4.0
- Energy efficiency class (cooling): A+
- Energy efficiency class (heating): A
- Average annual cooling consumption (kWh/year): 198
- Average annual heating consumption (kWh/year): 839
Performance:
- Nominal cooling capacity (kW): 3.4 (1.5-4.0)
- Nominal heating capacity (kW): 3.78 (3.51-5.0)
- Indoor unit sound pressure level (dB-A): 30/27/22
- Outdoor unit sound pressure level (dB-A): 46/47
Electrical data:
Power supply: 230 V
Features:
Power supply: 230 V
Features:
- Refrigerant: R32
- Guaranteed operating range:
- Cooling C: -10 ~ +43
- Heating C: -15 ~ +24
Dimensions:
- Indoor unit WxHxD (mm): 250 x 800 x 730; 25 kg
- Outdoor unit WxHxD (mm): 619 x 824 x 299; 35 kg
Product code: KIT-36PF3Z5
