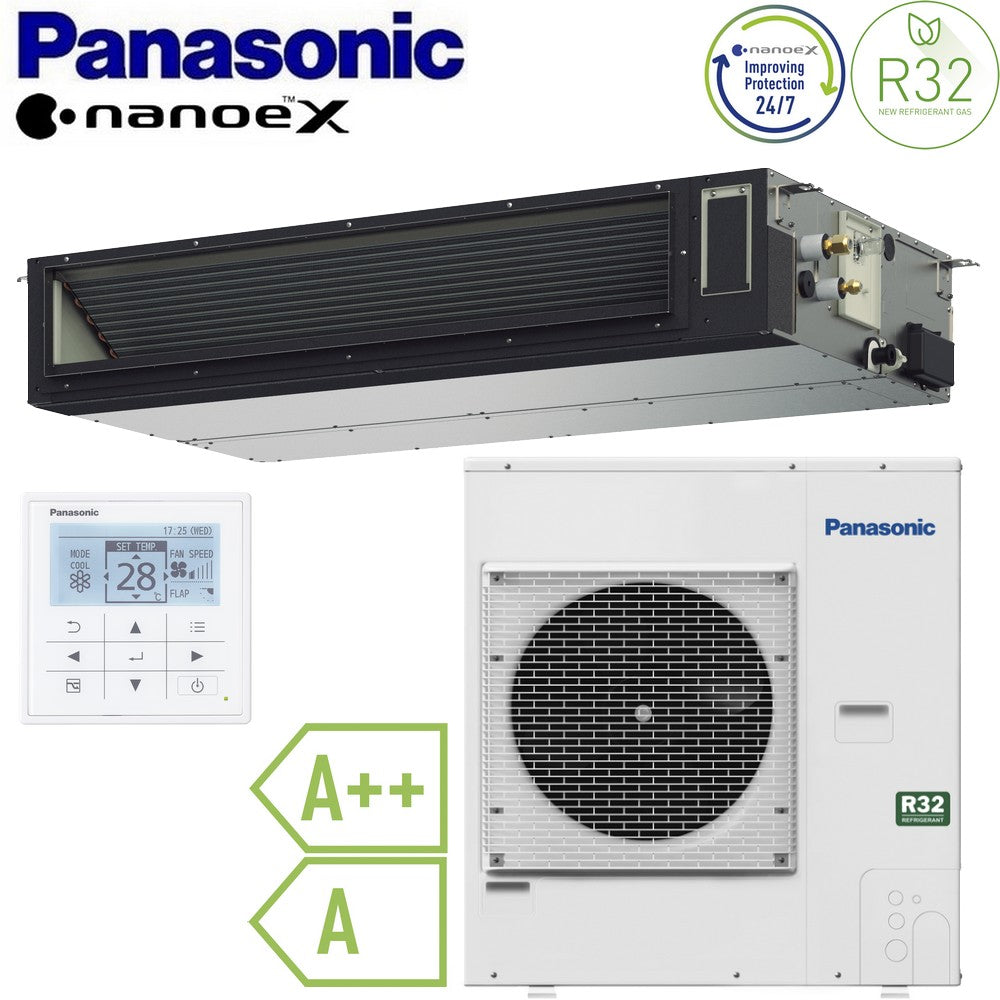

INVERTER - heat pump - CLASS A++ horizontal/vertical installation - wall control included
Features:
The new models have been completely redesigned to ensure flexible installation in all types of commercial and residential environments. The units can be positioned both vertically and horizontally, and allow for changing the air intake orientation to either the rear or front of the unit by simply moving a cover panel.
With a height of only 250 mm, ceilings are no longer an issue. These units can easily be installed in ceilings lower than normal.
PF3 models can cover an external static pressure range from 10 to 150 Pa. They are quiet units, with minimum sound levels of only 22 dB (A) thanks to the improved fan design, ensuring smoother airflow for quiet operation.
Special features of the new line:

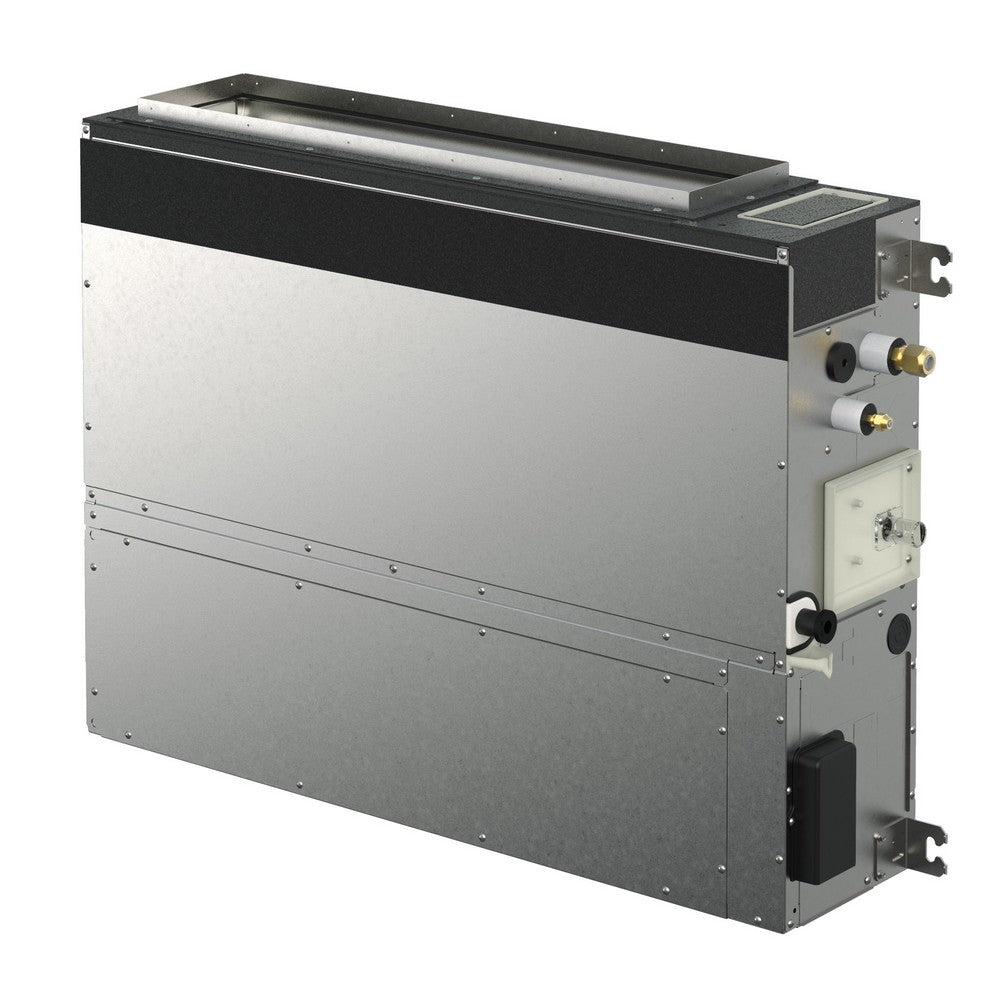

- Flexible installation: horizontal / vertical;
- Only 250 mm high;
- Maximum external static pressure: 150 Pa;
- Selectable air inlet position (rear / bottom);
- Improved drain pan, suitable for horizontal and vertical installation;
- Drain pump included;
- Nanoe ™ X (Mark 2 = 9.6 trillion OH radicals / sec) as standard;
- Also compatible with new optional CONEX controls: CZ-RTC6 (simplified control), CZ-RTC6BL (control with Bluetooth), CZ-RTC6BLW (control with Bluetooth + wireless);
- Environmentally friendly R32 refrigerant;
- Ducted units can be controlled via KNX, EnOcean and Modbus;
- Eco mode, for 20% energy savings;
- Compact indoor units (height of only 200 mm);
- Weekly programmable timer, with the possibility of programming 42 events per week;
- Simplified control mode, for fault detection;
- Drain pump included;

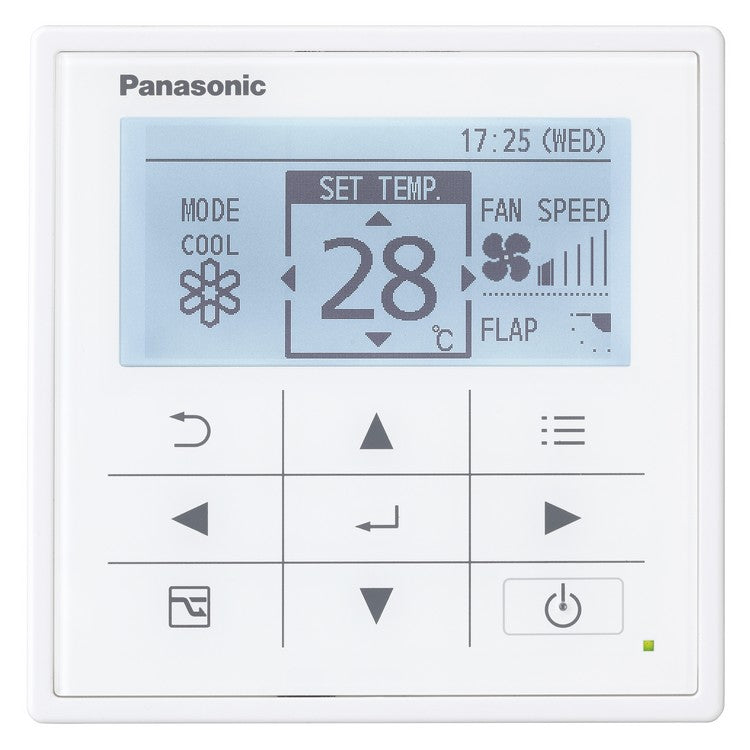

- Wired wall control model CZ-RTC5B included;
Technical specifications:
Model:
- Indoor unit catalog code: S-1014PF3E;
- Outdoor unit catalog code: U-100PZ3E5;
- Included wall control code: CZ-RTC5B;
- Power (BTU): 36000;
Energy efficiency:
- SEER/SCOP (W/W): 6.6/3.9;
- Energy efficiency class in cooling: A++;
- Energy efficiency class in heating: A+;
- Average annual cooling consumption kWh/a: 502;
- Average annual heating consumption kWh/a: 2795;
Performance:
- Rated cooling capacity (kW): 9.5 (3.0/11.4);
- Rated heating capacity (kW): 9.5 (3.0-13.5);
- Indoor unit sound pressure (dB-A): 33/29/25;
- Outdoor unit sound pressure (dB-A): 52/52;
Electrical data:
Power supply: 230 V;
Features:
Refrigerant: R32;
Guaranteed operating range:
Cooling C: -10 ~ +43;
Heating C: -15 ~ +24;
Dimensions:
Indoor unit WxHxD (mm): 250 x 1400 x 730; 39 kg;
Outdoor unit WxHxD (mm): 996 x 980 x 370; 83 kg;
Product code: KIT-100PF3Z5.
