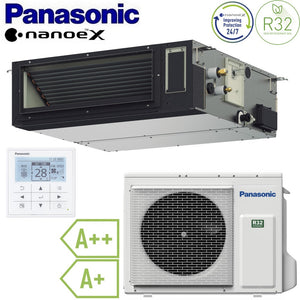

INVERTER - heat pump - Class A++ horizontal/vertical installation - wall control included
Features:
The new models have been completely redesigned to ensure flexible installation in all types of commercial and residential environments. The units can be positioned both vertically and horizontally and allow the orientation of the air intake to be changed to the rear or front of the unit itself by simply moving a cover panel.
With a height of only 250 mm, false ceilings are no longer a problem. These units can be easily installed in ceilings lower than normal.
PF3 models can cover an external static pressure range of 10 to 150 Pa. They are quiet units, with minimum sound levels of only 22 dB (A) thanks to the improved fan design that ensures a smoother airflow for quiet operation.
Special features of the new line:
- Flexible installation: horizontal / vertical;
- Only 250 mm high;
- Maximum external static pressure: 150 Pa;
- Selectable air intake position (rear / bottom);
- Improved drain pan, suitable for horizontal and vertical installation;
- Drain pump included;
- Nanoe™ X (Mark 2 = 9.6 trillion OH radicals/second) standard;
- Environmentally friendly R32 refrigerant
- Duct units can be controlled via KNX, EnOcean and Modbus
- Eco mode, for 20% energy saving
- Compact indoor units (height only 200 mm)
- Programmable weekly timer, with the possibility of programming 42 events per week
- Simplified control mode for fault detection
- Drain pump included

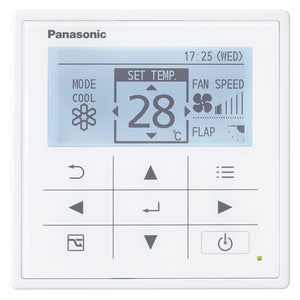

- Wired wall control model CZ-RTC5B included
Technical Specifications
Model:
- Indoor unit catalog code: S-6071PF3E
- Outdoor unit catalog code: U-60PZ3E5A
- Wall control code included: CZ-RT5B
- Power (BTU): 21000
Energy Efficiency:
- SEER/SCOP (W/W): 6.4/4.4
- Energy efficiency class (cooling): A++
- Energy efficiency class (heating): A+
- Average annual cooling consumption kWh/year: 310
- Average annual heating consumption kWh/year: 1376
Performance:
- Nominal cooling capacity (kW): 5.70 (2.0-6.3)
- Nominal heating capacity (kW): 5.70 (1.80-7.0)
- Indoor unit sound pressure (dB-A): 30/26/23
- Outdoor unit sound pressure (dB-A): 47/48
Electrical data:
Power supply: 230 V
Features:
- Refrigerant: R32
- Guaranteed operating range:
- Cooling °C: -10 ~ +43
- Heating °C: -15 ~ +24
Dimensions:
Indoor unit WxHxD (mm): 250 x 1000 x 730; 30 kg
Outdoor unit WxHxD (mm): 695 x 875 x 320; 42 kg
Product code: KIT-60PF3Z5
