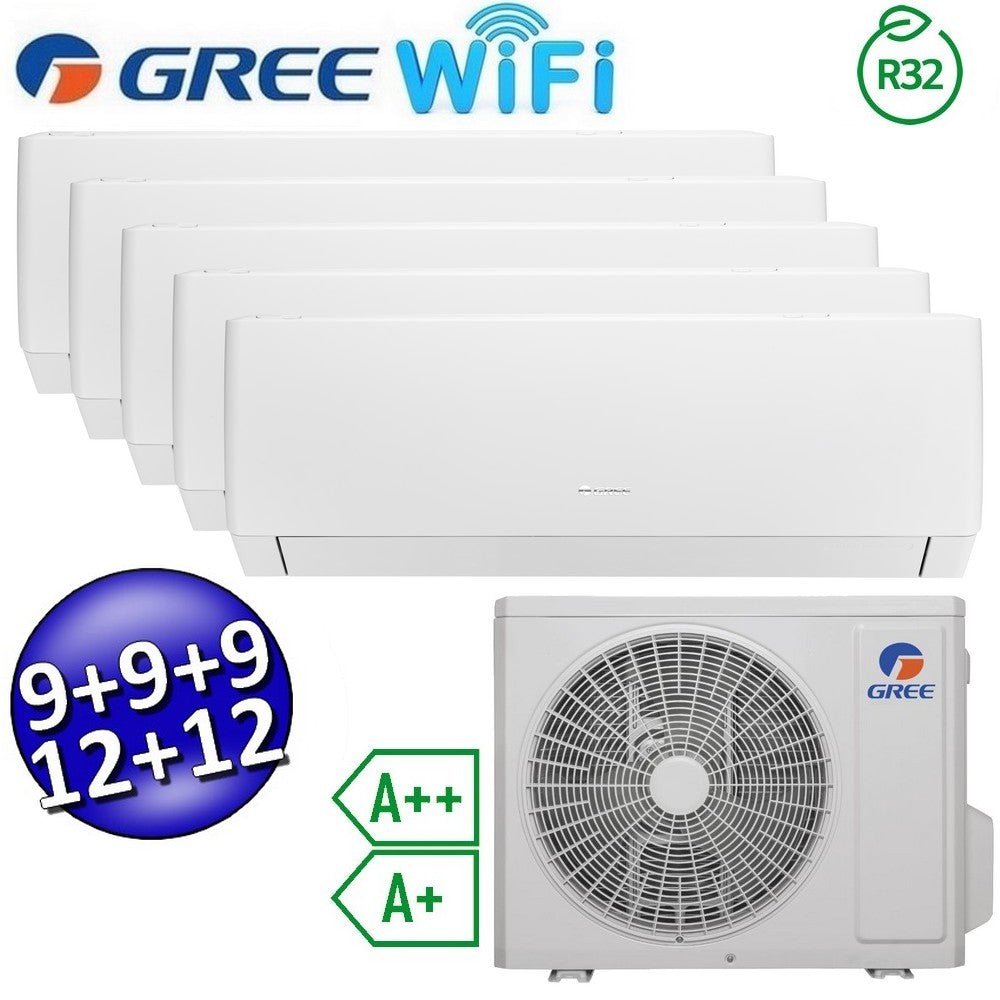

GREE PULAR 9+9+9+12+12 PENTA AIR CONDITIONER
Gree by Argo R32 refrigerant with very high energy performance
with heat pump - 'A++/A+' class
Main features:
- WI-FI Control - APP FOR iOS and ANDROID SYSTEMS
- Satin texture, modern and refined
- Appreciable design, minimalist, contemporary, and seamless style, for an even more elegant result and better dust protection
- Integrated air outlet for easy disassembly
- Double flap for precise air outlet
- Integrated top air filter, easy to clean without removing it
- Very high air flow: air volume increased by 17% at maximum values
- Record low noise level: at low fan speed, it is 3 dB(A) lower compared to corresponding traditional products
- Optimized airflow in cooling and heating
Model:
- Series: PULAR

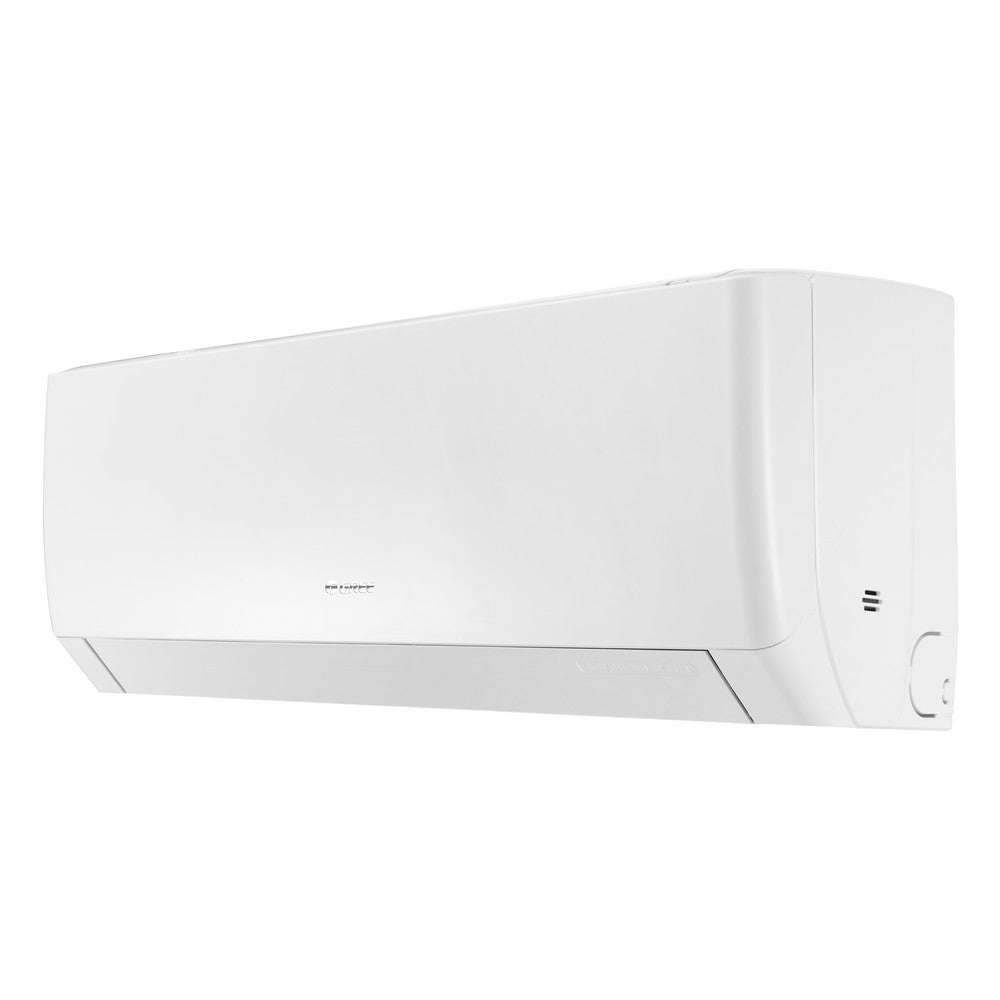

- Indoor unit model 9000 Btu: GWH09AGB-K6DNA1B/I (GREE10148)
- Indoor unit model 12000 Btu: GWH12AGC-K6DNA1A/I (GREE10150)
- Outdoor unit model: GWHD(42)NK6LO (GREE10078)
- Type: heat pump
- Power: 12 / 13 kW
Energy efficiency:
- Seasonal efficiency:
- SEER / SCOP (average climate): 6.1 / 4.0
- Energy efficiency class (Cooling): A++
- Energy efficiency class (Heating): A+
- Seasonal energy consumption kWh/year: 689 – 4130
Performance:
- Cooling capacity (kW): 12 (2.6-13.0)
- Heating capacity (kW): 13 (2.6-14.5)
- Outdoor unit air flow m³/h: 5500
- Outdoor unit sound pressure (dB(A)): 55
- Power input in cooling kW: 3.45 (2.6 - 4.0)
- Power input in heating kW: 3.5 (1.61 - 4.0)
Electrical data:
Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant gas: R32 - 2.75 kg / 1.86 T.CO2 eq.
- Liquid / gas pipe diameter (inches): 1/4” - 3/8”
- Indoor unit air flow 9000 (sa.-h.-m.-l.) m³/h: 550/520/480/400/340/310/280
- Indoor unit air flow 12000 (sa.-h.-m.-l.) m³/h: 550/520/480/400/340/310/280
- Indoor unit sound pressure 9000 (dB(A)): max 40 - min 21
- Indoor unit sound pressure 12000 (dB(A)): max 40 - min 21
- Maximum piping length with standard charge: m 3-40
- Maximum piping length with additional charge: m 75
- Maximum height difference (outdoor unit above): m 15
- Operating limits (outdoor temperature): cooling from -15°C to +43°C / heating from -15°C to +24°C
Dimensions and weight:
- Indoor unit 9000 HxWxD (mm): 260x779x185; 8 kg unpackaged
- Indoor unit 12000 HxWxD (mm): 260x779x185; 8 kg unpackaged
- Outdoor unit HxWxD (mm): 1103x1087x440; 90 kg unpackaged
GREE by Argo
Product code: PULARWPENTA9991212(42)
