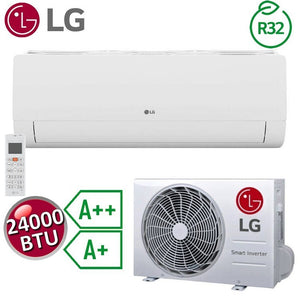

Series: LIBERO with R32 refrigerant gas

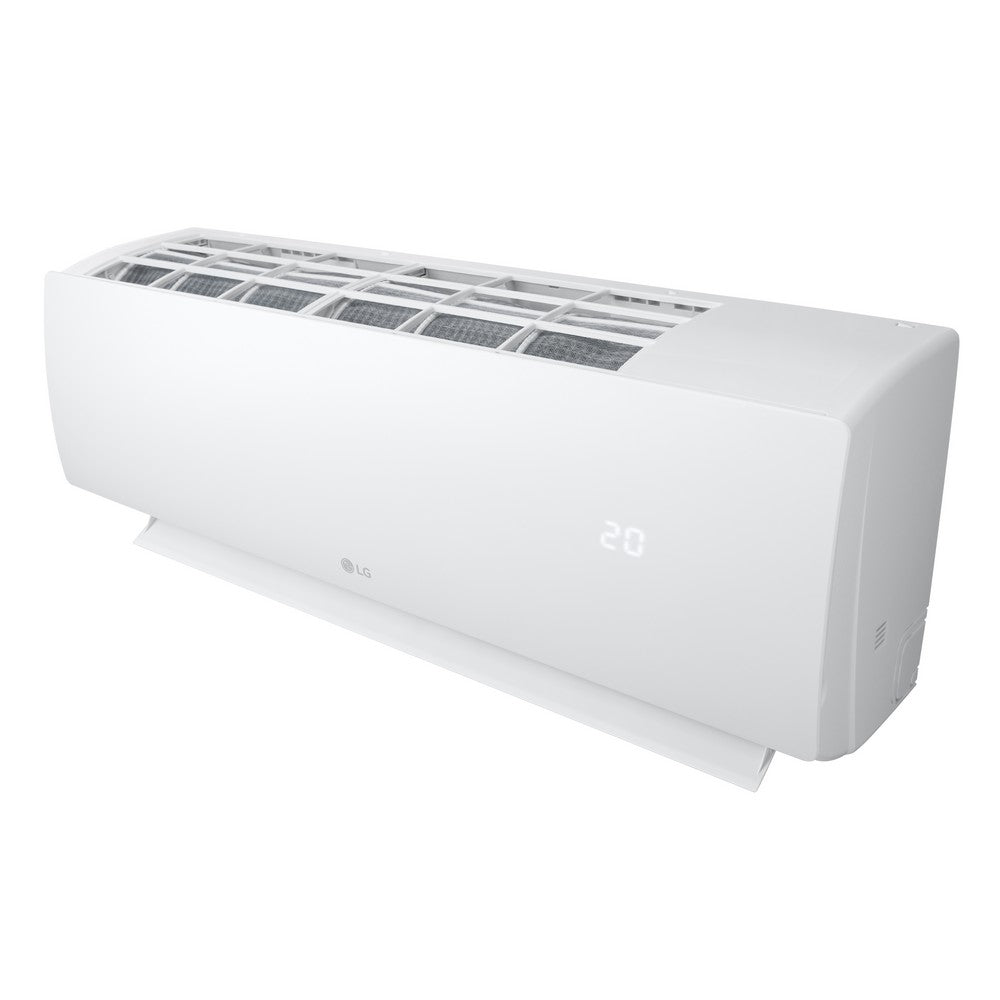

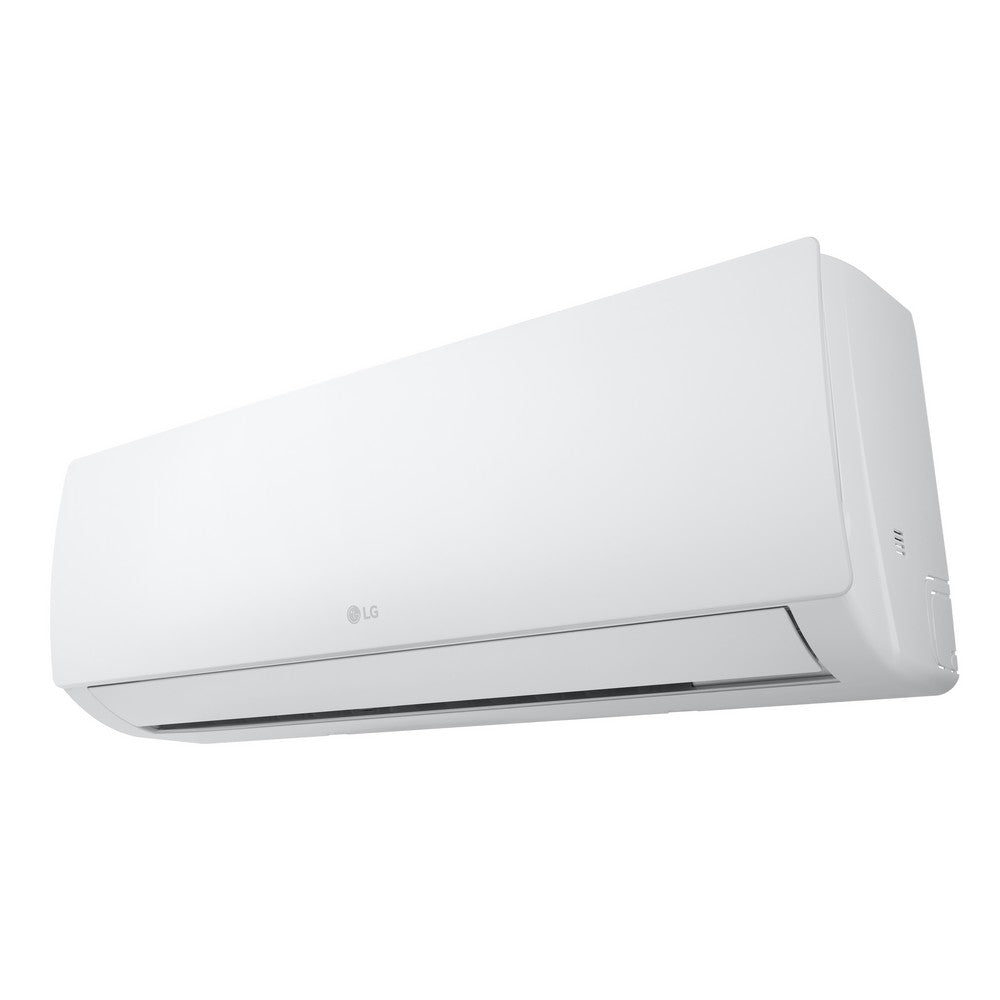

• Indoor unit model: W24TI.NEU

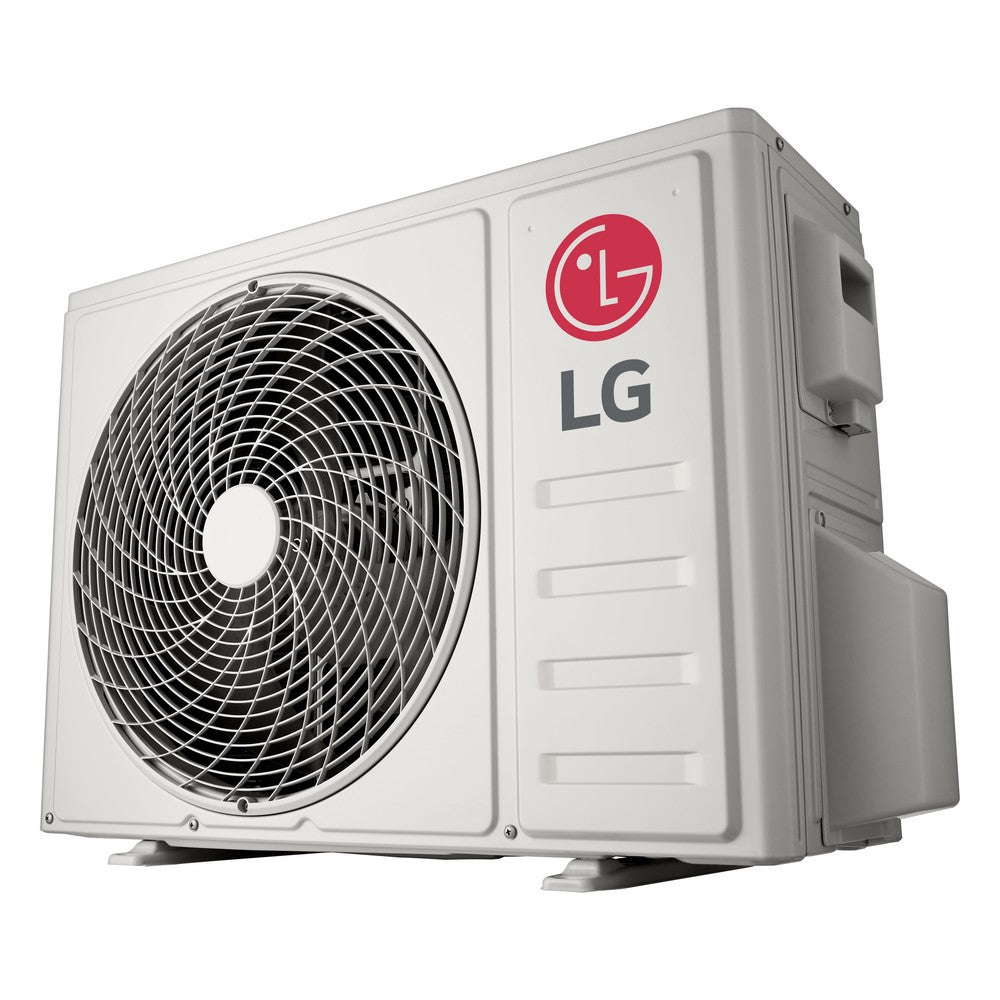

• Outdoor unit model: W24TI.UEU
• Type: heat pump
• Power: 24000 Btu

Energy efficiency:

• Seasonal efficiency:
  • SEER: 6.90
  • SCOP (average/warmer/colder climate): 4.30
• Energy efficiency class (cooling): A++
• Energy efficiency class (heating): A+
• Annual energy consumption kWh/year: cooling 335 - heating 1628

Performance:

• Cooling capacity (kW): 6.6 (0.9 / 7.42)
• Heating capacity (kW): 7.5 (0.9 / 8.64)
• Air flow I.U. (max.-h.-m.-l.) m³/min: 18.3/16.1/13.1/10.5/8.0
• Indoor unit sound pressure (max.-h.-m.-l.) (dB(A)): 47/31
• Outdoor unit max sound pressure (dB(A)): 54/57
• O.U. sound power (h.): 70
• Power input in cooling W: 2164
• Power input in heating W: 2238

Electrical data:
Power supply (V/Hz/Φ): 230/1/50

Features:

• Refrigerant gas: R32 / 1100 g
• Liquid / gas pipe diameter: 6.35(1/4") / 15.88 (5/8") mm
• Maximum pipe length with additional charge m 20
• Maximum elevation difference (outdoor unit above) m 10

Dimensions and weight:

• Indoor unit HxWxD (mm): 345x998x210; 12.7 kg
• Outdoor unit HxWxD (mm): 650x870x330; 34.4 kg

Product code: W24TI.NEU+W24TI.UEU
