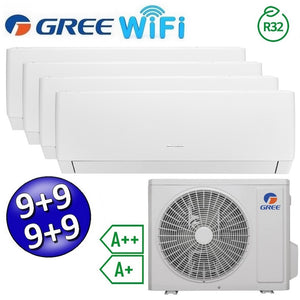

**QUAD SPLIT AIR CONDITIONING GREE PULAR 9+9+9+9**
Gree by Argo R32 refrigerant, very high energy performance
with heat pump - class 'A++/A+'
Main features:
- WI-FI control - APP FOR iOS and ANDROID SYSTEMS
- Satin texture, modern and refined
- Attractive design, minimalist, contemporary, seamless style for an even more elegant result, better dust protection
- Integrated air diffusion for easy disassembly
- Double flap for precise air diffusion
- Integrated upper air filter, easy to clean without even removing it
- Very high airflow: air volume increased by 17% at maximum values
- Record low noise level: at low fan speed, it is 3 dB(A) lower than corresponding traditional products
- Optimized airflow in cooling and heating modes
Model:
- Series: PULAR
- Indoor unit model 9000 Btu: GWH09AGB-K6DNA1B/I (GREE10148)
- Outdoor unit model: GWHD(28)NK6OO (GREE10145)
- Type: heat pump
- Power: 8.0 / 9.5 kW
Energy efficiency:
- Seasonal efficiency:
- SEER / SCOP (average climate): 6.1 / 4.0
- Energy efficiency class (Cooling): A++
- Energy efficiency class (Heating): A+
- Seasonal energy consumption kWh/year: 459 – 2520
Performance:
- Cooling capacity (kW): 8.0 (2.30-1.10)
- Heating capacity (kW): 9.50 (3.65-10.25)
- Outdoor unit airflow m³/h: 3800
- Outdoor unit sound pressure (dB(A)): 58
- Absorbed power in cooling (kW): 2.12 (1.3 - 3.58)
- Absorbed power in heating (kW): 2.20 (1.0 - 2.87)
Electrical data:
- Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant gas: R32 - 1.8 kg / 1.215 T.CO2 eq.
- Liquid / gas pipe diameter (inches): 1/4” - 3/8”
- Indoor unit airflow 9000 (su.-h.-m.-l.) m³/h: 550/520/480/400/340/310/280
- Indoor unit sound pressure 9000 (dB(A)): max 40 - min 21
- Maximum pipe length with standard charge: 3-40 m
- Maximum pipe length with additional charge: 70 m
- Maximum height difference (outdoor unit above): 15 m
- Operating limits (outdoor temperature): cooling from -15°C to +43°C / heating from -15°C to +24°C
Dimensions and weight:
- Indoor unit 9000 HxWxD(mm): 260x779x185; 8 kg unpackaged
- Outdoor unit HxWxD(mm): 654x889x340; 51 kg unpackaged
GREE by Argo
Product code: PULARWQUADRI9999(28)
