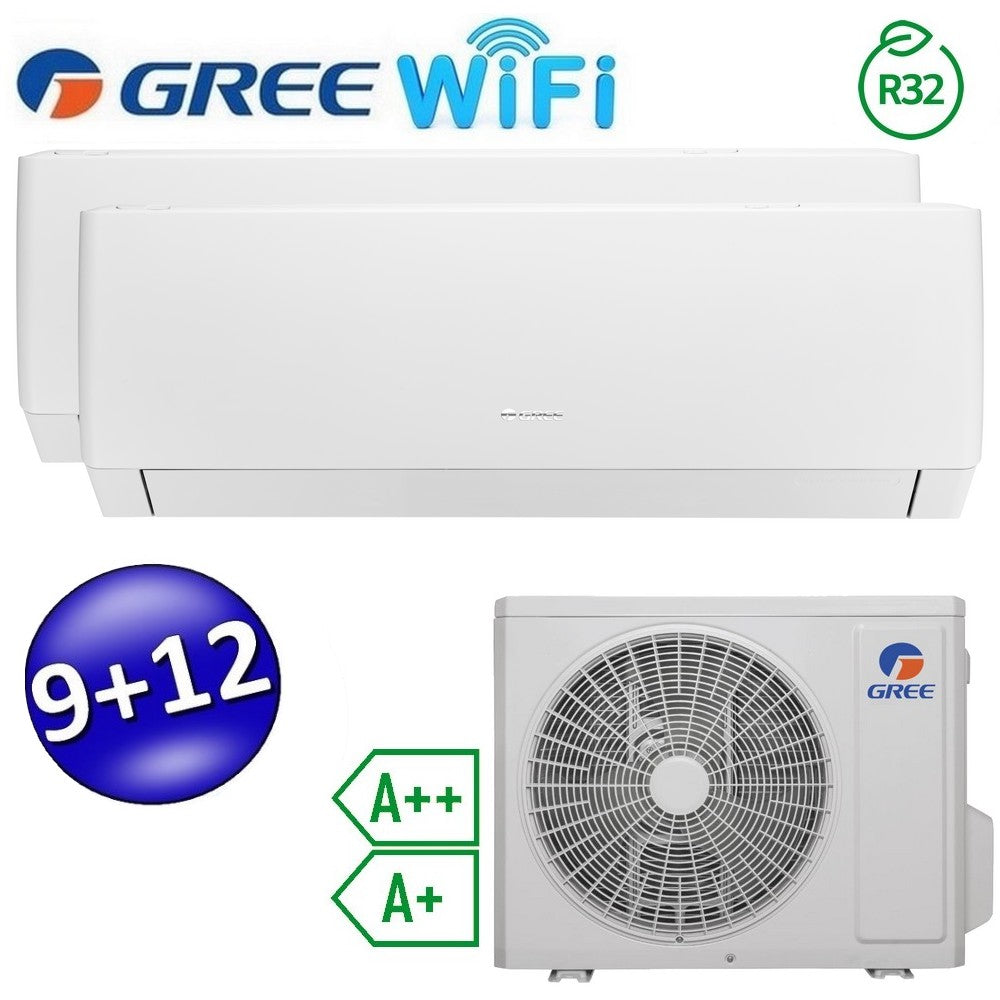

DUAL GREE AIR CONDITIONING PULAR 9+12
Gree by Argo R32 refrigerant with very high energy efficiency
with heat pump - class 'A++/ A+'
Main features:
WI FI control - APP FOR iOS and ANDROID SYSTEMS
Satin, modern and refined texture
Appreciable design, minimalist, contemporary style without interruption, for an even more elegant result, better dust protection
Integrated air discharge for easy disassembly
Double flap for precise air flow
Integrated top air filter, easy to clean even without having to remove it
High air flow: air volume increased by 17% in maximum values
Record sound level: at low fan speed, it is 3 dB(A) compared to the value
of corresponding traditional products
Optimized air flow in cold and heat
Model:
-
Series: PULAR
-

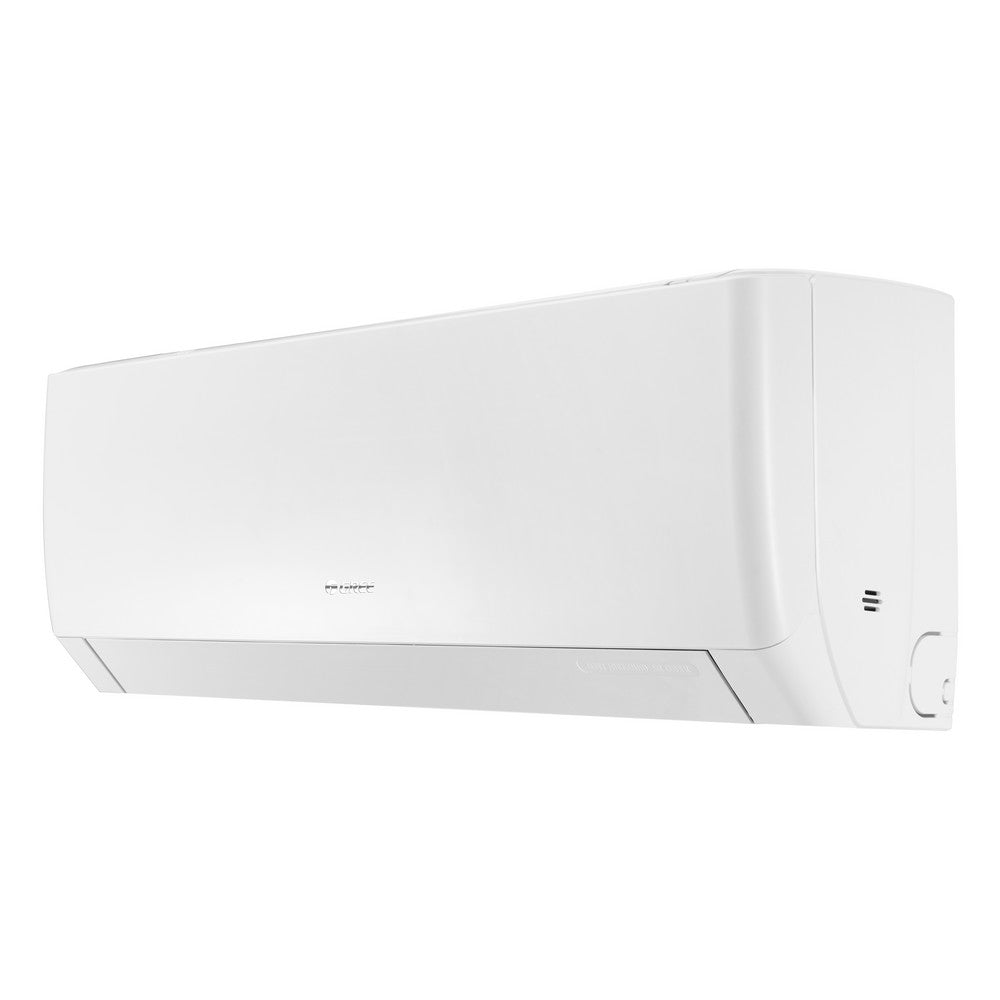

9,000 Btu indoor unit model: GWH09AGB-K6DNA1B/I (GREE10148)
-
12,000 Btu indoor unit model: GWH12AGC-K6DNA1A/I (GREE10150)
-
Outdoor unit model: GWHD(14)NK6OO (GREE10141)
-
Type: Heat pump
-
Power: 4.1 / 4.4 Kw
Energy efficiency:
-
Seasonal efficiency:
SEER / SCOP (average climate): 6.5 / 4.0 -
Energy efficiency class (cooled): A++
-
Energy efficiency class (heating): A+
-
Seasonal energy consumption kWh/year; 220 - 1330
Performance:
-
Cooling capacity (kW): 4.1 (2.05-5.00)
-
Heating capacity (kW): 4.4 (2.49-5.40)
-
External U. air flow m³/h: 2300
-
External sound pressure (dB(A): 50/52
-
Cooling power consumption kW: 1.1 (0.55 - 1.44)
- Heating power consumption Kw: 0.97 (0.6 - 1.78)
Electrical data:
-
Power (V/Hz/Φ): 230/50/1
Features:
-
Refrigerant gas: R32 - 0.675 Kg / 0.506 T.Co2 eq..
-
Liquid/gas pipe diameter (inches): 1/4" - 3/8"
-
Indoor Unit 9000 air flow (sa.-h.-m.-l.) m³/h: 550/ 520/480/400/340/310/280
-
Indoor Unit 12000 air flow (sa.-h.-m.-l.) m³/h: 550/520/480/400/340/310/280
-
Indoor Unit 9000 sound pressure (dB(A)): max 40 - min 21< /p>
-
Indoor Unit 12000 sound pressure (dB(A)): max 40 - min 21
-
Maximum pipe length with standard charge. m 3-10
-
Maximum pipe length with supplement: 40 m
-
Maximum height difference (outdoor unit above) m 15
-
Operating limits (outdoor temperature): cooling from -15°c to +43°c / heating from -15°c to +24°c
Dimensions and weight:
- Indoor unit 9000 HxWxD(mm): 260x779x185; 8 Kg without packaging
- Indoor unit 12000 HxWxD(mm): 260x779x185; 8 Kg without packaging
-
Outdoor unit HxWxD(mm): 550x745x300; 30 Kg without packaging
GREE by Argo
