Model:

• Series: Built-in operation with R32 refrigerant gas

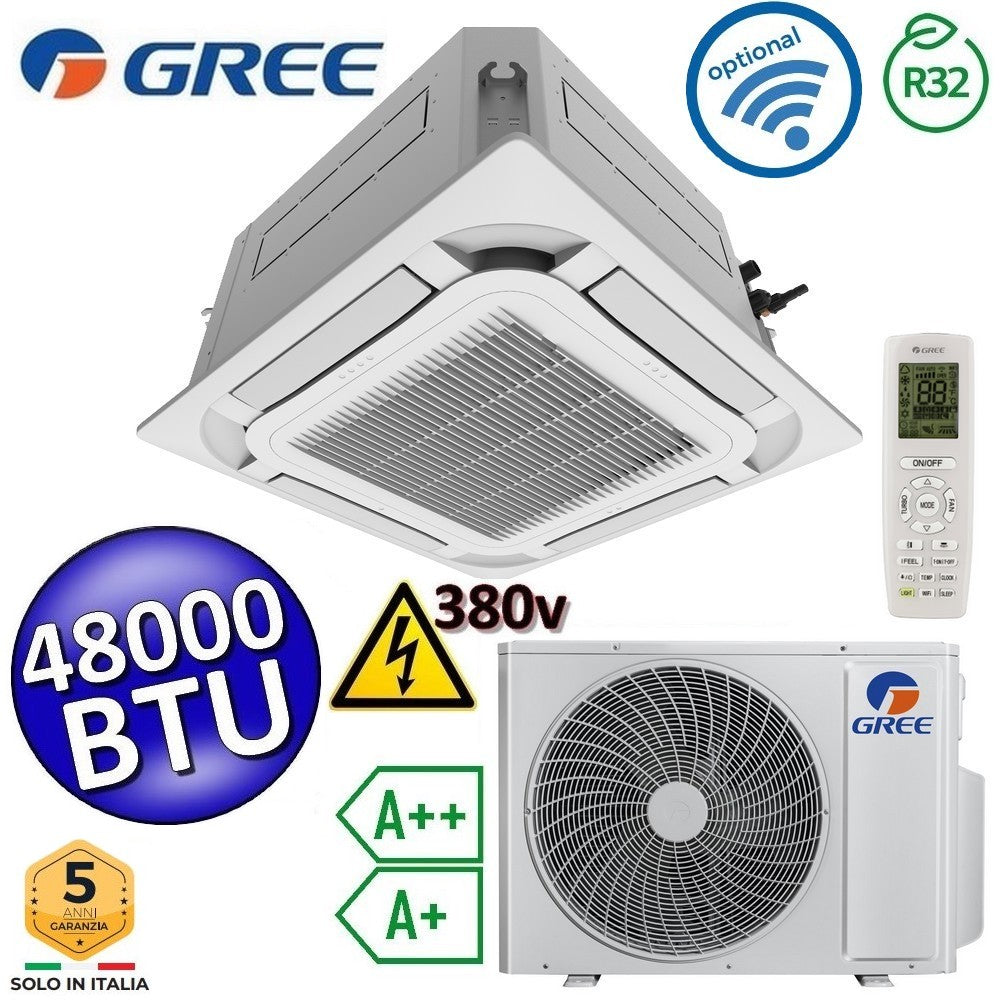

• Indoor unit model: GUD140T1/A-S
• Outdoor unit model: GUD140W1/NhA-X
• Complete with TF06 cover grille (TL10000220)
• Power: 48000 BTU
• Infrared remote control included
• Integrated condensate drain pump with a head of up to 1100mm

Performance:

• Cooling capacity (kW): 13.4 (4.0 - 14.2)
• Heating capacity (kW): 15.5 (3.90 - 16.0)
• EER: 2.85
• SCOP: 3.48
• Energy class in cooling mode: A++
• Energy class in heating mode: A+
• Power supply: 380-415V / 50Hz / 3 Ph
• Power input in cooling: 4.60 kW
• Power input in heating: 4.70 kW
• Refrigerant: R32 - 2.80 Kg / T.CO2 eq. 1.89
• Air flow U.I. m³/h: 2000-1800-1600-1400
• Fan speed: 4 / modulating
• Dehumidification: 3.9 Lt/hr
• Sound pressure (dB(A)): max 50 - min 41

Features:

• Liquid / gas pipe diameter (inches): 3/8” (9.52mm) - 5/8" (15.88mm)
• Indoor unit dimensions HxWxD(mm): 290/840/840
• Indoor unit weight: 36 kg unpackaged
• Outdoor unit dimensions HxWxD(mm): 820/940/370
• Outdoor unit weight: 99 kg unpackaged
• Panel/grille dimensions HxWxD(mm): 52/950/950
• Panel/grille weight: 6 kg unpackaged

Cassette unit features:

• Cassettes for single applications in the light commercial / tertiary sectors
• Suitable for shops, offices, meeting rooms, hotels, restaurants, clubs, gyms and open spaces
• Compact and attractive design
• 8-way air distribution, 360° flow, with flap oscillation range between 45 and 80°, differentiated according to heating/cooling mode, for maximum comfort
• Fan with optimized aerodynamic profiles to ensure maximum silence

GREE

Product code: KIT-GUD140TW1-X
