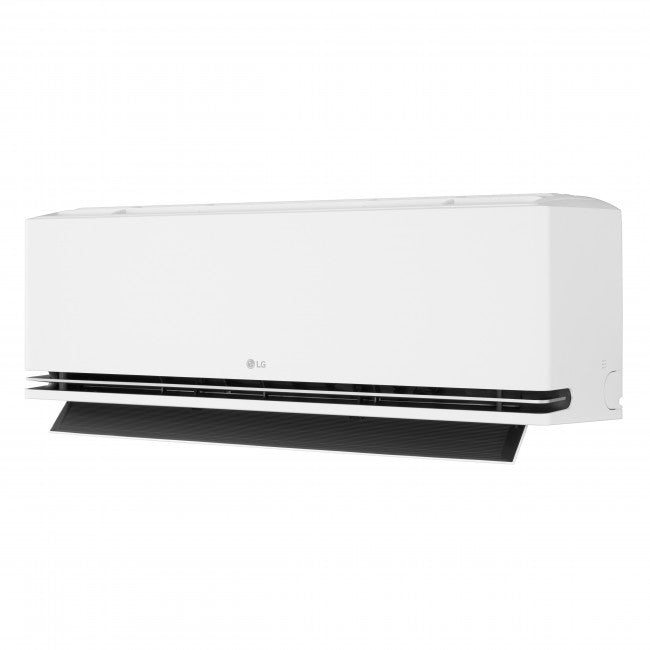

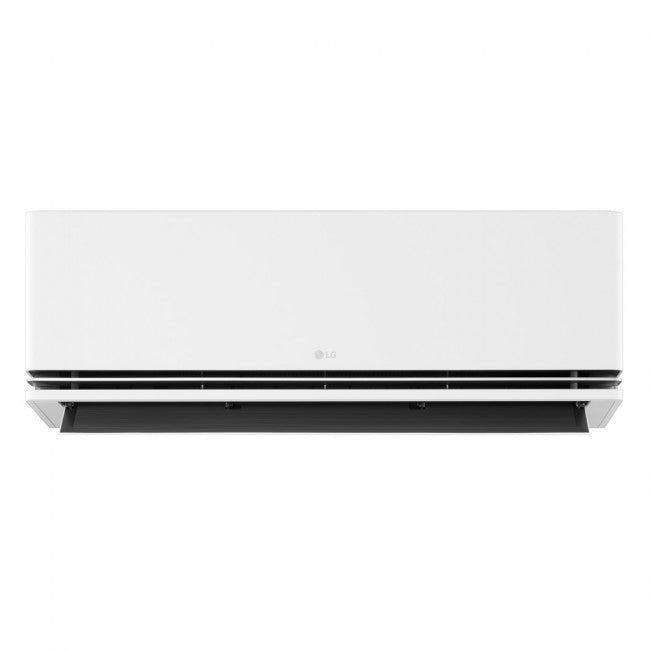

• Indoor unit model: H12S1D.NS

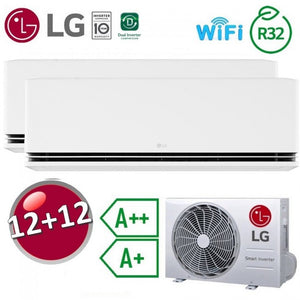

• Outdoor unit model: MU2R17.U13
• Type: heat pump
• Capacity: 12000+12000 btu

Energy efficiency:

• Seasonal efficiency:
• - SEER: 8.50
• - SCOP, average climate zone: 4.61
• Energy efficiency class (cooling): A++
• Energy efficiency class (heating): A+

Performance:

• Cooling capacity (kW): 4.69 (0.88 / 5.39)
• Heating capacity (kW): 5.10 (0.97 / 5.51)
• Air flow IU 12000 (s. a. - a. - m. - b.) m³/min: 13.6/10.5/8.1/5.7/2.0
• Indoor unit sound pressure 9000 max/min (dB(A)): 40/19
• Air flow IU 12000 (s. a. - a. - m. - b.) m³/min: 13.6/10.5/8.1/5.7/2.0
• Indoor unit sound pressure 12000 (s. a. - a. - m. - b.) (dB(A)): 40/19
• Outdoor unit sound pressure Max (dB(A)): 49
• Outdoor unit sound power (a.): 61
• Power input in cooling kW: 0.23 ~ 1.22 ~ 1.81
• Power input in heating kW: 0.24 ~ 1.20 ~ 1.51

Electrical data:
Power supply (V/Hz/Φ): 230/1/50

Features:

• Refrigerant: R32 / 1100 gr.
• Liquid / gas pipe diameter: 6.35 (1/4') / 9.52 (3/8') mm
• Maximum pipe length with additional charge m 30
• Maximum height difference (outdoor unit above) m 10

Dimensions and weight:
Indoor units HxWxD (mm): 307x895x235; 11 Kg (without packaging)
Outdoor unit HxWxD (mm): 545x770x288; 36.5 Kg (without packaging)

Product code: DELUXEWDUAL.1212(17)
