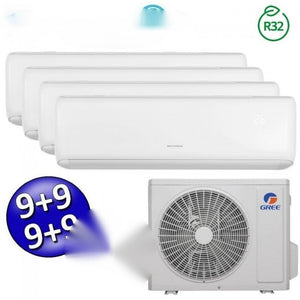

GREE ARI 9+9+9+9 Quad Split Air Conditioner
R32 refrigerant with very high energy performance
with heat pump - class 'A++/A+'
Main features:
- WI-FI control - APP FOR iOS and ANDROID SYSTEMS
- Rounded line, high-gloss finish, very discreet backlit display, which can be deactivated if desired so as not to disturb sleep at night.
- Wifi is integrated and allows remote control via the APP on your smartphone.
- IFEEL

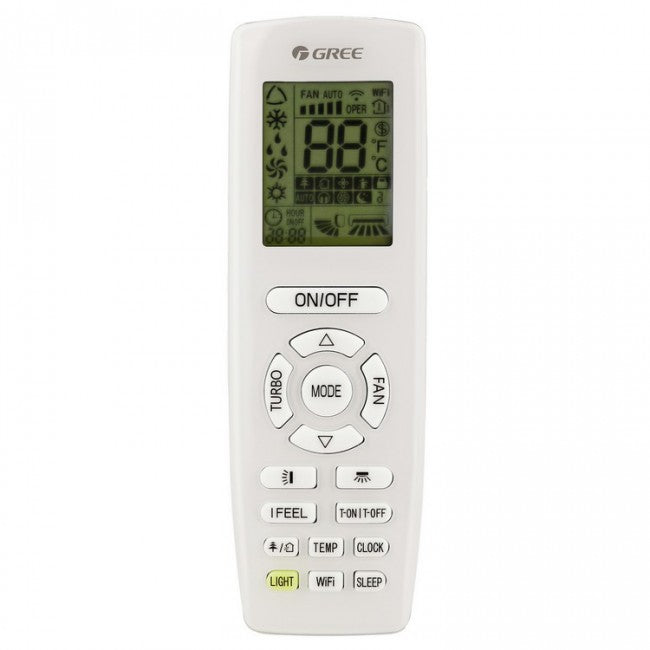

- The sensor integrated into the remote control detects the ambient temperature and transmits the signal to the indoor unit. This allows the indoor unit to adjust the volume and temperature of the airflow to ensure maximum comfort at the exact location of the remote control, not where the unit is located.
Maximum attention to comfort:
- 4 fan speeds
- 3D swing
- Very low noise level in Silent mode
- Self-cleaning function of the evaporator and sterilization at 55 °C
- X-fan function
Model:
- Series: ARI
- Indoor unit model 9000 Btu: GWH09ATAXB-K6DNA1B/I (GREE10216)
- Outdoor unit model: GWHD(28)NK6OO (GREE10145)
- Type: heat pump
- Power: 8.0 / 9.5 kW
Energy efficiency:
- Seasonal efficiency:
- SEER / SCOP (average climate): 6.1 / 4.0
- Energy efficiency class (cooling): A++
- Energy efficiency class (heating): A+
- Seasonal energy consumption kWh/year; 459 – 2520
Performance:
- Cooling capacity (kW): 8.0 (2.30-1.10)
- Heating capacity (kW): 9.50 (3.65-10.25)
- Outdoor unit airflow m³/h: 3800
- Outdoor unit sound pressure (dB(A)): 58
- Power consumption for cooling kW: 2.12 (1.3 - 3.58)
- Power consumption for heating kW: 2.20 (1.0 - 2.87)
Electrical data:
Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant: R32 - 1.8 Kg / 1.215 T.CO2 eq.
- Liquid/gas pipe diameter (inches): 1/4” - 3/8”
- Indoor unit airflow 9000 (sa.-a.-m.-b.) m³/h: 500-470-390-270
- Indoor unit sound pressure 9000 (dB(A)): max 38 - min 22
- Maximum pipe length with standard charge. m 3-40
- Maximum pipe length with added charge: m 70
- Maximum height difference (outdoor unit above) m 15
- Operating limits (outdoor temperature): cooling from -15°C to +43°C / heating from -15°C to +24°C
Dimensions and weight:
- Indoor unit 9000 HxWxD (mm): 260x708x185; 7.0 Kg unpacked
- Outdoor unit HxWxD (mm): 654x889x340; 51 Kg unpacked
GREE by Argo.
Product code: ARIQUADRI9999(28)
