GREE ARI 9+9+12+12 quad split air conditioner
R32 refrigerant with high energy efficiency
with heat pump - class 'A++/A+'
R32 refrigerant with high energy efficiency
with heat pump - class 'A++/A+'
Main features:
- WI-FI control - APP FOR iOS and ANDROID SYSTEMS
- Rounded line, glossy finish, discreet backlit display, which can be deactivated if desired so as not to disturb night rest.
- Wifi is integrated and allows remote control via the APP on your smartphone.
- IFEEL

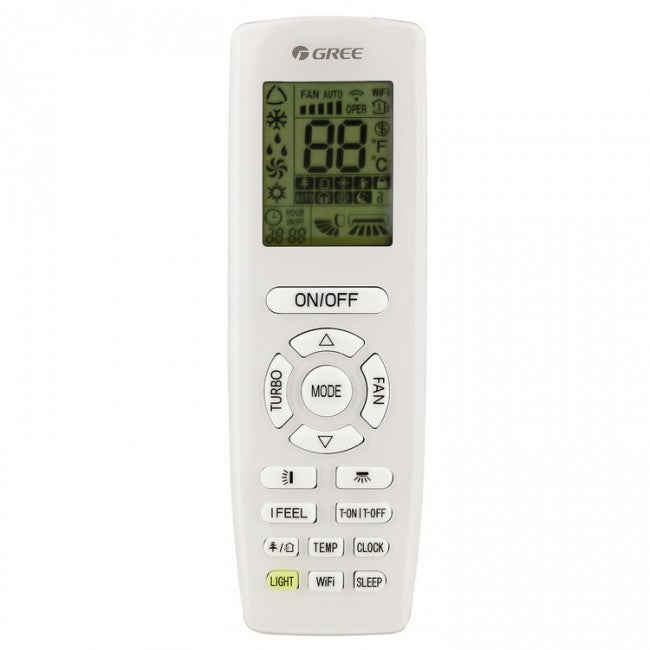

- The sensor integrated into the remote control detects the ambient temperature and transmits the signal to the internal unit. In this way, the internal unit can adjust the air volume and temperature to ensure maximum comfort at the exact location of the remote control, and not where the unit is located.
Maximum attention to comfort:
- 4 fan speeds
- 3D oscillation
- Very low noise level in Quiet mode
- Evaporator self-cleaning and 55°C sterilization function
- X-fan function
Model:
- Series: ARI
- 9000 Btu indoor unit model: GWH09ATAXB-K6DNA1B/I (GREE10216)
- 12000 Btu indoor unit model: GWH12ATAXB-K6DNA1D/I (GREE10218)
- Outdoor unit model: GWHD(28)NK6OO (GREE10145)
- Type: heat pump
- Power: 8.0 / 9.5 Kw
Energy efficiency:
- Seasonal efficiency:
- SEER / SCOP (average climate): 6.1 / 4.0
- Energy efficiency class (cooling): A++
- Energy efficiency class (heating): A+
- Annual energy consumption kWh/year; 459 – 2520
Performance:
- Cooling capacity (kW): 8.0 (2.30-1.10)
- Heating capacity (kW): 9.50 (3.65-10.25)
- External airflow m³/h: 3800
- External sound pressure (dB(A)): 58
- Cooling power input kW: 2.12 (1.3 - 3.58)
- Heating power input kW: 2.20 (1.0 - 2.87)
Electrical data:
Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant: R32 - 1.8 Kg / 1.215 T.Co2 eq..
- Liquid / gas pipe diameter (inches): 1/4” - 3/8”
- 9000 indoor unit airflow (sup.-high-mid-low) m³/h: 500-470-390-270
- 9000 indoor unit sound pressure (dB(A)): max 38 - min 22
- 12000 indoor unit airflow (sup.-high-mid-low) m³/h: 590-520-400-320
- 12000 indoor unit sound pressure (dB(A)): max 41 - min 26
- Maximum pipe length with standard charge. m 3-40
- Maximum pipe length with additional charge: m 70
- Maximum height difference (outdoor unit above) m 15
- Operating limits (outdoor temperature): cooling from -15°C to +43°C / heating from -15°C to +24°C
Dimensions and weight:
- 9000 indoor unit HxWxD(mm): 260x708x185; 7.0 Kg without packaging
- 12000 indoor unit HxWxD(mm): 275x835x200; 8.0 Kg without packaging
- Outdoor unit HxWxD(mm): 654x889x340; 51 Kg without packaging
GREE by Argo
Product code: ARIQU
