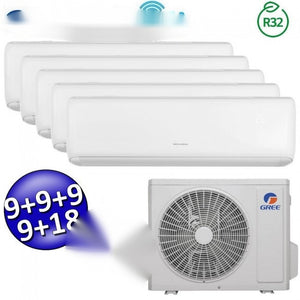

GREE ARI 9+9+9+9+18 penta AIR CONDITIONING
R32 refrigerant with high energy efficiency
with heat pump - class 'A++/A+'
R32 refrigerant with high energy efficiency
with heat pump - class 'A++/A+'
Main features:

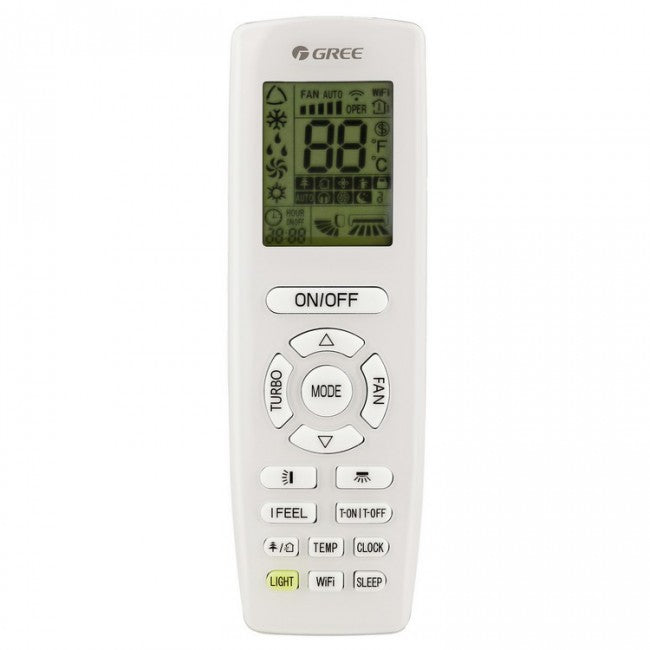

- WI FI control - APP FOR iOS and ANDROID SYSTEMS
- Satin texture, modern and refined
- Appreciable, minimalist, contemporary design without interruption, for a result
- even more elegant, increased protection against dust
- Integrated air discharge for easy disassembly
- Double flap for precise air distribution
- Integrated upper air filter, easy to clean without removing it
- Very high airflow: air volume increased by 17% at maximum values
- Record low noise level: at low fan speed, 3 dB(A) lower than the value
- of corresponding traditional products
- Optimized airflow in cooling and heating modes
Model:
- Series: ARI
- 9000 Btu indoor unit model: GWH09ATAXB-K6DNA1B/I (GREE10216)
- 18000 Btu indoor unit model: GWH18ATDXB-K6DNA1D/I (GREE10220)
- Outdoor unit model: GWHD(42)NK6LO (GREE10078)
- Type: heat pump
- Power: 12 / 13 Kw
Energy efficiency:
- Seasonal efficiency:
- SEER / SCOP (average climate): 6.1 / 4.0
- Energy efficiency class (cooling): A++
- Energy efficiency class (heating): A+
- Seasonal energy consumption kWh/year; 689 – 4130
Performance:
- Cooling capacity (kW): 12 (2.6-13.0)
- Heating capacity (kW): 13 (2.6-14.5)
- External airflow m³/h: 5500
- External sound pressure (dB(A)): 55
- Power input for cooling kW: 3.45 (2.6 - 4.0)
- Power input for heating Kw: 3.5 (1.61 - 4.0)
Electrical data:
Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant: R32 - 2.75 Kg / 1.86 T.Co2 eq..
- Liquid / gas pipe diameter (inches): 1/4” - 3/8”
- Airflow indoor unit 9000 (sa.-a.-m.-b.) m³/h: 500-470-390-270
- Sound pressure indoor unit 9000 (dB(A)): max 38 - min 22
- Airflow indoor unit 18000 (sa.-a.-m.-b.) m³/h: 1000-960-810-640
- Sound pressure indoor unit 18000 (dB(A)): max 47 - min 30
- Maximum pipe length with standard charge m 3-50
- Maximum pipe length with additional charge: m 100
- Maximum height difference (outdoor unit above) m 25
- Operating limits (external temperature): cooling from -15°C to +43°C / heating from -15°C to +24°C
Dimensions and weight:
- Indoor unit 9000 HxWxD(mm): 260x708x185; 7.0 Kg without packaging
- Indoor unit 18000 HxWxD(mm): 333x943x246; 13.0 Kg without packaging
- Outdoor unit HxWxD(mm): 1103x1087x440; 90 Kg without packaging
GREE by Argo
Product code: ARIPENTA999918(42)
