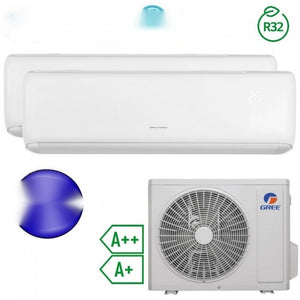

GREE ARI 9+9 dual AIR CONDITIONING
R32 refrigerant, very high energy performance
with heat pump - class 'A++/A+'
Main features:
- WI FI control - APP FOR iOS and ANDROID SYSTEMS
- Rounded line, high-gloss finish, very discreet backlit display, which can be deactivated if desired so as not to disturb nighttime sleep.
- Wi-Fi is integrated and allows remote control via the APP on your smartphone.
- IFEEL

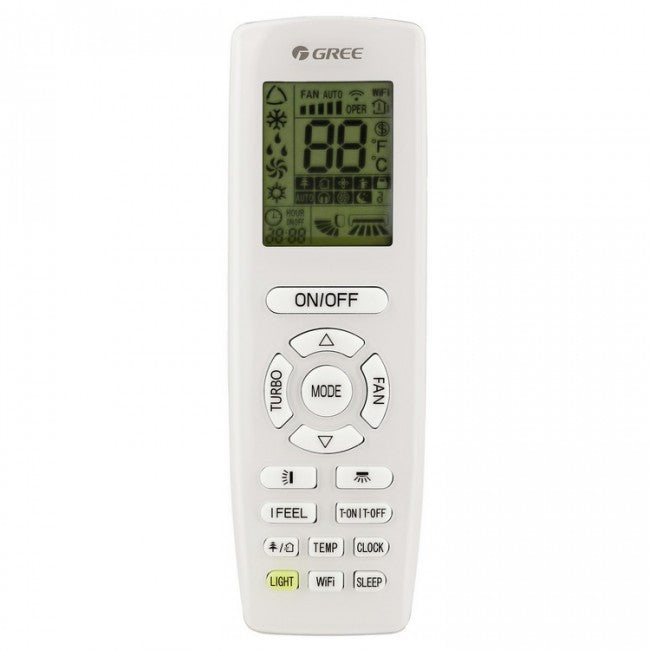

- The sensor integrated in the remote control detects the ambient temperature and transmits the signal to the indoor unit. Thus, the indoor unit can adjust the volume and temperature of the airflow to ensure maximum comfort exactly where the remote control is, and not where the unit is.
Maximum attention to comfort:
- 4 fan speeds
- 3D swing
- Very low noise level in Quiet mode
- Evaporator self-cleaning function and sterilization at 55 °C
- X-fan function
Model:
- Series: ARI
- Indoor unit 9000 Btu model: GWH09ATAXB-K6DNA1B/I (GREE10216)
- Outdoor unit model: GWHD(14)NK6OO (GREE10141)
- Type: heat pump
- Power: 4.1 / 4.4 kW
Energy Efficiency:
- Seasonal efficiency:
- SEER / SCOP (average climate): 6.5 / 4.0
- Energy Efficiency Class (Cooling): A++
- Energy Efficiency Class (Heating): A+
- Seasonal energy consumption kWh/year: 220 – 1330
Performance:
- Cooling capacity (kW): 4.1 (2.05-5.00)
- Heating capacity (kW): 4.4 (2.49-5.40)
- Outdoor unit airflow m³/h: 2300
- Outdoor unit sound pressure (dB(A)): 50/52
- Cooling power consumption kW: 1.1 (0.55 - 1.44)
- Heating power consumption kW: 0.97 (0.6 - 1.78)
Electrical data:
Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant gas: R32 - 0.675 kg / 0.506 T.CO2 eq.
- Liquid / gas pipe diameter (inches): 1/4” - 3/8”
- Indoor unit 9000 airflow (high-medium-low-very low) m³/h: 500-470-390-270
- Indoor unit 9000 sound pressure (dB(A)): max 38 - min 22
- Maximum pipe length with standard charge: 3-10 m
- Maximum pipe length with added charge: 40 m
- Maximum height difference (outdoor unit above): 15 m
- Operating limits (outdoor temperature): cooling from -15°C to +43°C / heating from -15°C to +24°C
Dimensions and weight:
- Indoor Unit 9000 HxWxD(mm): 260x708x185; 7.0 kg unpackaged
- Outdoor Unit HxWxD(mm): 550x745x300; 30 kg unpackaged
GREE by Argo
Product code: ARIDUAL99(14)
