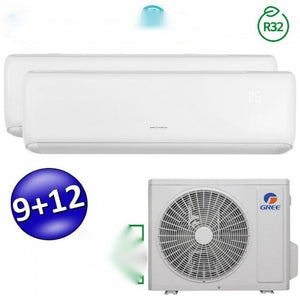

GREE ARI 9+12 dual AIR CONDITIONER
R32 refrigerant, very high energy performance
with heat pump - class 'A++/A+'
Main features:
- Wi-Fi control - APP FOR iOS and ANDROID SYSTEMS
- Rounded design, high-gloss finish, very discreet backlit display, can be deactivated if desired so as not to disturb sleep.
- Wi-Fi is integrated and allows remote control via the app on your smartphone.
- IFEEL

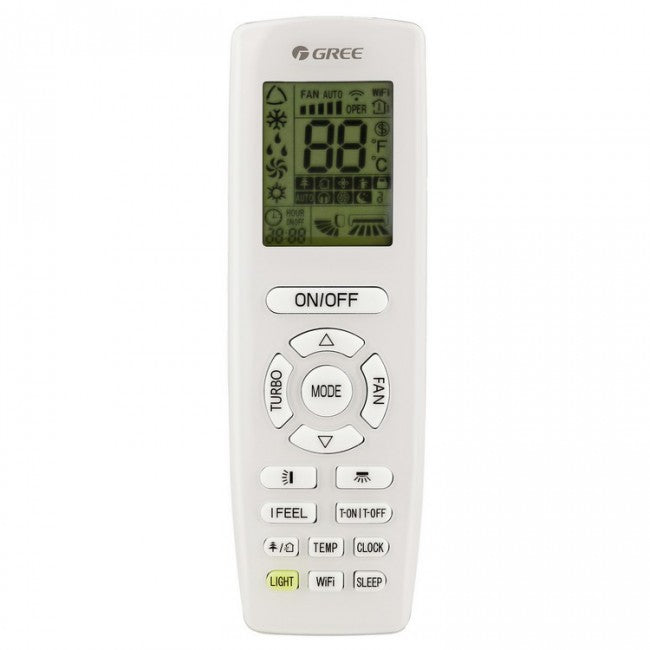

- The sensor integrated into the remote control detects the ambient temperature and transmits the signal to the indoor unit. This allows the indoor unit to adjust the volume and temperature of the airflow to ensure maximum comfort exactly where the remote control is located, and not where the unit is located.
Maximum attention to comfort:
- 4 fan speeds
- 3D swing
- Very low noise level in Quiet mode
- Evaporator self-cleaning function and 55 °C sterilization
- X-fan function
Model:
- Series: ARI
- 9000 Btu indoor unit model: GWH09ATAXB-K6DNA1B/I (GREE10216)
- 12000 Btu indoor unit model: GWH12ATAXB-K6DNA1D/I (GREE10218)
- Outdoor unit model: GWHD(14)NK6OO (GREE10141)
- Type: heat pump
- Power: 4.1 / 4.4 kW
Energy Efficiency:
-
Seasonal efficiency:
- SEER / SCOP (average climate): 6.5 / 4.0
- Energy efficiency class (Cooling): A++
- Energy efficiency class (Heating): A+
- Annual seasonal energy consumption kWh/year: 220 – 1330
Performance:
- Cooling capacity (kW): 4.1 (2.05-5.00)
- Heating capacity (kW): 4.4 (2.49-5.40)
- Outdoor unit airflow m³/h: 2300
- Outdoor unit sound pressure (dB(A)): 50/52
- Cooling absorbed power kW: 1.1 (0.55 - 1.44)
- Heating absorbed power kW: 0.97 (0.6 - 1.78)
Electrical data:
Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant gas: R32 - 0.675 kg / 0.506 T.CO2 eq.
- Liquid / gas pipe diameter (inches): 1/4” - 3/8”
- Indoor unit 9000 airflow (high-medium-low-very low) m³/h: 500-470-390-270
- Indoor unit 9000 sound pressure (dB(A)): max 38 - min 22
- Indoor unit 12000 airflow (high-medium-low-very low) m³/h: 590-520-400-320
- Indoor unit 12000 sound pressure (dB(A)): max 41 - min 26
- Maximum pipe length with standard charge: 3-10 m
- Maximum pipe length with added charge: 40 m
- Maximum height difference (outdoor unit above): 15 m
- Operating limits (outdoor temperature): cooling from -15°C to +43°C / heating from -15°C to +24°C
Dimensions and weight:
- Indoor unit 9000 HxWxD (mm): 260x708x185; 7.0 kg unpackaged
- Indoor unit 12000 HxWxD (mm): 275x835x200; 8.0 kg unpackaged
- Outdoor unit HxWxD (mm): 550x745x300; 30 kg unpackaged
GREE by Argo
Product code: ARIDUAL912(14)
