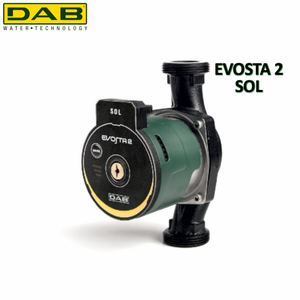

WET ROTOR CIRCULATOR - DAB EVOSTA 2 G 105/180
FOR SOLAR, DHW, HEATING - 1″ - UNION CONNECTIONS 1″1/2
GENERAL CHARACTERISTICS:
For heating, for solar panel systems, for domestic hot water recirculation, and also for air conditioning systems, Evosta 2 circulators offer high standards of reliability and comfort, performance and low consumption, ease of use and maintenance.
DESCRIPTION:
Evosta 2 by DAB is an electronic wet rotor circulator designed for water recirculation in small heating and air conditioning systems in domestic and residential environments.
Evosta 2 has a permanent magnet synchronous motor and inverter electronics that automatically adapt performance to system demands, allowing energy savings and protection against water hammer.
Evosta 2 is simple to configure: a sequential button allows scrolling through the nine operating modes, three with proportional pressure, three with constant pressure, three with constant speed. All models have a bleeder plug and allow manual unlocking of the crankshaft. Threaded suction and discharge ports.
TECHNICAL DATA
Operating range: 0.4-3.6 m3/h with a head up to 6.9 meters
Liquid temperature range: -10°C to +110°C
Operating pressure: 10 bar (1,000 kPa)
Protection degree: IPX5
Insulation class: F
Installation: with horizontal motor shaft
Standard power supply: single-phase 1x230 V~ 50/60 Hz
Pumped liquid: Clean, free of solid substances and mineral oils, non-viscous, chemically neutral, close to the characteristics of water (max. 30% glycol)
Product code: 60188427
