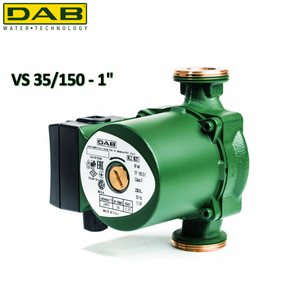

WET ROTOR CIRCULATOR - DAB

FOR DOMESTIC WATER 35/150 1″

DESCRIPTION:

Circulation pump for closed and pressurized or open hot water systems.
Also suitable for solar energy systems.

CONSTRUCTION CHARACTERISTICS

Single body composed of a bronze hydraulic part and a wet rotor motor.
Die-cast aluminum motor casing.
Technopolymer impeller.
Hardened stainless steel motor shaft mounted on graphite bushings lubricated by the pumped liquid.
Rotor sleeve, stator sleeve and closing flange in stainless steel.
Ceramic thrust ring, silicone sealing rings and brass air bleed cap.
The bipolar asynchronous wet rotor motor is resistance-protected and requires no overload protection.
Three-speed operation.
Degree of protection: IP 44
Insulation class: F
Cable entry: PG 11
Installation: with the motor axis horizontal.
Standard voltage: single-phase 230 V / 50 Hz
Special versions on request: - other voltages and/or frequencies.

Product code: 60182215H
