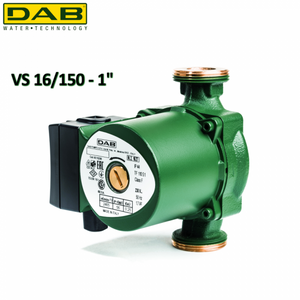

WET ROTOR CIRCULATOR - DAB VS 16/150

FOR DOMESTIC WATER 1″

DESCRIPTION:

Circulation pump for closed and pressurized or open tank domestic hot water systems.
Also suitable for solar energy systems.

CONSTRUCTION FEATURES

Single body composed of the hydraulic part in bronze and the wet rotor motor.
Die-cast aluminum motor casing.
Technopolymer impeller.
Hardened stainless steel motor shaft mounted on graphite bushings lubricated by the pumped liquid.
Rotor sleeve, stator sleeve and closing flange in stainless steel.
Ceramic thrust ring, silicone sealing rings and brass air purge cap.
The bipolar asynchronous wet rotor motor is protected by resistance and does not require overload protection.
Three-speed operation.
Degree of protection: IP 44
Insulation class: F
Cable entry: PG 11
Installation: with the motor axis horizontal.
Standard voltage: single-phase 230 V / 50 Hz
Special versions on request: - other voltages and/or frequencies.

Product code: 60182216H
