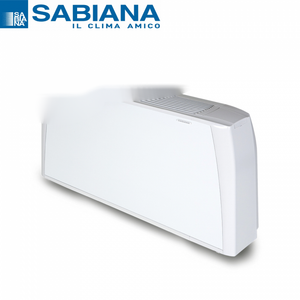

Charisma CRC 44 MV RAFF. 3.08 KW - HEATING Centrifugal fan coil unit of 3.14 KW with asynchronous electric motor

DESCRIPTION:

Provides 9 sizes (from 105 to 1500 m3/h) and 5 versions (wall-mounted and ceiling-mounted, exposed and recessed), each equipped with 3 or 4-row heat exchange coils and with the possibility of adding a 1 or 2-row coil for four-pipe systems.

It is the widest and most complete range, perfectly suited to meet all air conditioning requirements for work environments such as offices, shops, restaurants and hotel rooms with ducted installations with pressure drops up to 50 Pa.

TECHNICAL SPECIFICATIONS:

Cabinet: consists of robust side panels made of impact-resistant synthetic material (ABS) and a front part made of hot-dip galvanized and pre-painted steel sheet. The air discharge grille, made of synthetic material, is of the reversible type with fixed fins and is positioned at the top.

Standard colors:

• Side panels and air discharge grille: Pantone Cool Grey 1C (light gray)

• Front part: RAL 9003 (white)

• Other colors on request.

Internal supporting structure: made of 1 mm thick galvanized sheet metal, composed of two side panels and a rear wall insulated with a 3 mm thick mattress, made of closed-cell polyethylene class M1.

Filter: regenerable in honeycomb polypropylene. The frame, made of galvanized sheet metal, is inserted into guides fixed to the internal structure that allow easy extraction. A front filter cover, made of plastic material of the same color as the discharge grille, highlights its presence.

Fan unit: composed of particularly silent double-inlet centrifugal fans, with aluminum or plastic impellers statically and dynamically balanced, directly keyed to the crankshaft

Electric motor: single-phase type, with six speeds, three of which are connected, mounted on anti-vibration elastic supports and with permanently inserted capacitor, internal thermal protection with automatic reset, degree of protection IP 20 and class B.

Heat exchange coil: is constructed with copper tubes and aluminum fins attached to the tubes by a mechanical rolling process. The main coil and any additional coil are equipped with two Ø 1/2" female gas connections. The manifolds are equipped with Ø 1/8" gas air vents and water drains. The exchanger is not suitable for use in corrosive atmospheres or in any environment where corrosion may occur on the aluminum.
The coils are reversible: the connection side can therefore be reversed during on-site assembly.

Condensate drain pan: made of plastic material, L-shaped and fixed to the internal structure; in MO-MVB and IV-IO versions, the pan is insulated with a 3 mm thick mattress of closed-cell polyethylene class M1. The condensate drain pipe is Ø 15 external.

Product code: 0066014
