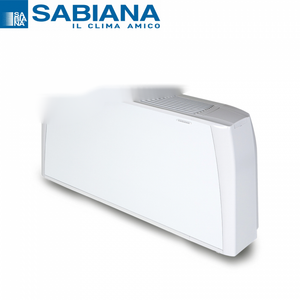

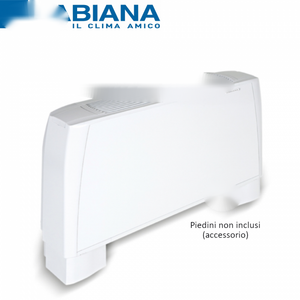

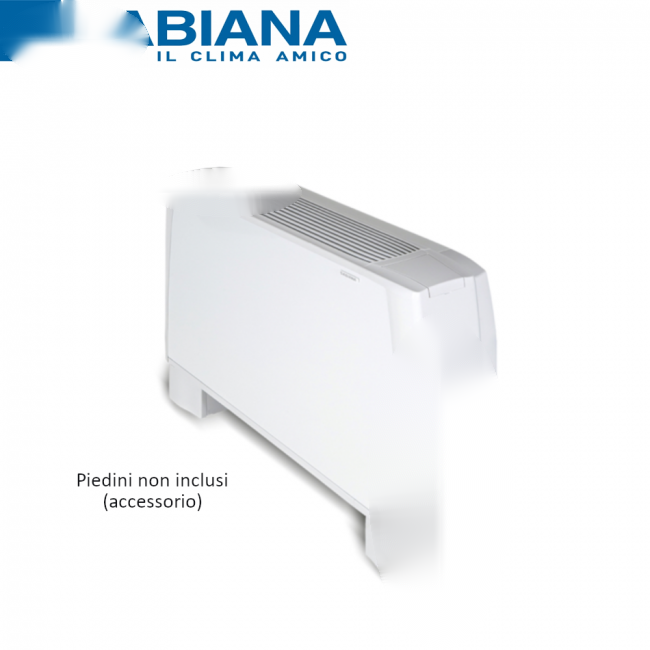

Charisma CRC 34 MV RAFF. 2.53 KW - HEATING 2.59 KW Centrifugal Fan Coil Unit with Asynchronous Electric Motor

DESCRIPTION:

Available in 9 sizes (from 105 to 1500 m3/h) and 5 versions (wall-mounted and ceiling-mounted, exposed and recessed), each equipped with 3 or 4-row heat exchange coils and with the possibility of adding a 1 or 2-row coil for four-pipe systems.

It is the most comprehensive range, perfectly suited to meet all air conditioning requirements for workspaces such as offices, shops, restaurants, and hotel rooms with ducted installations with pressure drops up to 50 Pa.

TECHNICAL FEATURES:

Cover Cabinet: consists of robust side shoulders made of shock-resistant synthetic material (ABS) and a front part made of hot-galvanized and pre-painted steel sheet. The air discharge grille, made of synthetic material, is reversible with fixed fins and is positioned at the top.

Standard colors:

• Side shoulders and air discharge grille: Pantone Cool Grey 1C (light grey)

• Front part: RAL 9003 (white)

• Other colors on request.

Internal supporting structure: made of 1 mm thick galvanized sheet metal, consisting of two side shoulders and a back wall insulated with a 3 mm thick mattress of closed-cell polyethylene, class M1.

Filter: regenerable honeycomb polypropylene. The frame, made of galvanized sheet metal, is inserted into guides fixed to the internal structure, allowing for easy extraction. A front filter cover, made of plastic in the same color as the discharge grille, highlights its presence.

Fan unit: composed of particularly quiet double-inlet centrifugal fans, with aluminum or plastic impellers statically and dynamically balanced, directly keyed onto the crankshaft.

Electric motor: single-phase type, with six speeds, three of which are connected, mounted on anti-vibration elastic supports and with permanently inserted capacitor, internal self-resetting thermal protection, protection degree IP 20 and class B.

Heat exchange coil: constructed with copper tubes and aluminum fins fixed to the tubes by a mechanical rolling process. The main coil and any additional coil are equipped with two Ø 1/2" female gas connections. The manifolds are equipped with air vents and water drains Ø 1/8" gas. The exchanger is not suitable for use in corrosive atmospheres or in any environment where corrosion may occur on aluminum.
The coils are reversible: the connection side can therefore be inverted during on-site assembly.

Condensate drain pan: made of plastic, L-shaped and fixed to the internal structure; in MO-MVB and IV-IO versions, the pan is insulated with a 3 mm thick mattress of closed-cell polyethylene class M1. The condensate drain pipe is Ø 15 external.

Product code: 0066013
