Charisme CRC 24 MV COOLING 1.78 KW - HEATING 1.83 KW Centrifugal fan coil unit with asynchronous electric motor

DESCRIPTION:

Provides 9 sizes (from 105 to 1500 m3/h) and 5 versions (wall and ceiling, exposed and recessed), each equipped with 3 or 4-row heat exchange coils and with the possibility of adding a 1 or 2-row coil for four-pipe systems.

It is the most comprehensive range, perfectly suited to satisfy all air conditioning requirements for workplaces such as offices, shops, restaurants and hotel rooms with ducted installations with pressure drops up to 50 Pa.

TECHNICAL CHARACTERISTICS:

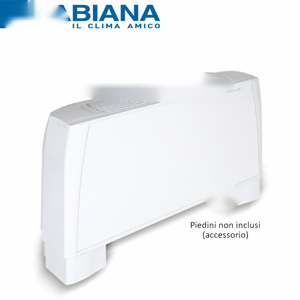

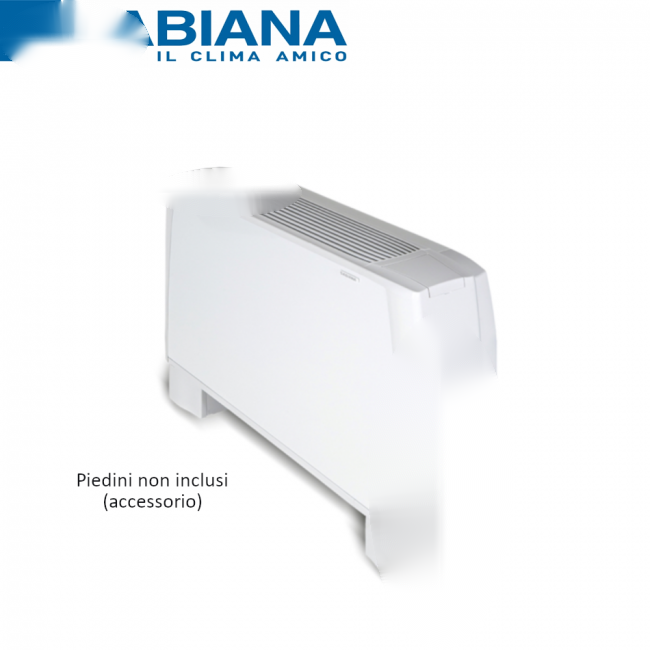

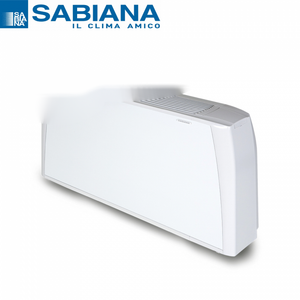

Cover cabinet: is composed of sturdy side shoulders in anti-shock synthetic material (ABS) and a front part in hot-dip galvanized and pre-painted steel sheet. The air discharge grille, made of synthetic material, is of the reversible type with fixed fins and is positioned at the top.

Standard colors:

• Side shoulders and air discharge grille: Pantone Cool Grey 1C (light gray)

• Front part: RAL 9003 (white)

• Other colors on request.

Internal supporting structure: made of 1 mm thick galvanized sheet, composed of two side shoulders and a rear wall insulated with a 3 mm thick mattress, in class M1 closed-cell polyethylene.

Filter: regenerable honeycomb polypropylene. The frame, in galvanized sheet, is inserted into guides fixed to the internal structure that allow easy extraction. A front filter cover, in plastic material of the same color as the discharge grille, highlights its presence.

Fan group: composed of particularly silent double-inlet centrifugal fans, with aluminum or plastic impellers statically and dynamically balanced, directly keyed onto the crankshaft.

Electric motor: single-phase type, with six speeds, three of which are connected, mounted on anti-vibration elastic supports and with a permanently inserted capacitor, internal thermal protection with automatic reset, IP 20 protection degree and class B.

Heat exchange coil: is constructed with copper tubes and aluminum fins attached to the tubes by a mechanical lamination process. The main coil and any additional coil are equipped with two Ø 1/2" female gas connections. The manifolds are equipped with air vents and water drains Ø 1/8" gas. The exchanger is not suitable for use in corrosive atmospheres or in any environment where corrosion may occur on aluminum.
The coils are reversible: the connection side can therefore be reversed during on-site assembly.

Condensate drain pan: made of plastic material, L-shaped and fixed to the internal structure; in MO-MVB and IV-IO versions, the pan is insulated with a 3 mm thick mattress in M1 class closed-cell polyethylene. The condensate drain pipe is Ø 15 external.

Product code: 0066012
