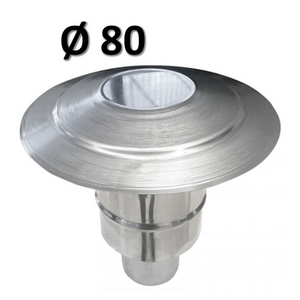

FLUE TERMINAL

CHINESE HAT - WINDPROOF Ø 80

DESCRIPTION:

Chimney terminal, Chinese hat/windproof DN 80. This windproof hat is a flue terminal that prevents rainwater from entering the chimney and ensures proper smoke evacuation even in windy conditions. Chimney element made of 0.5 mm thick 316 stainless steel. TIG welding without added material guarantees high resistance to corrosion caused by acid condensation and ease of maintenance. The connection between the different elements is made via a male/female socket joint. CE certified system compliant with EN1856-2:2009. Resists operating temperatures up to 600 °C. under negative pressure (n1) without gasket, and 200° under positive pressure (p1) using the appropriate silicone gasket, available for purchase separately, which guarantees perfect gas and condensation sealing of the joints. It is also compliant with installation standard UNI/TS 11278:2008. Designation with gasket: EN 1856-2 - T200 - P1 - W - V2 - L50040 - 0 Designation without gasket: EN 1856-2 - T600 - N1 - D– V2 - L50040 - G600

Product code: SPCA07080
