DESCRIPTION

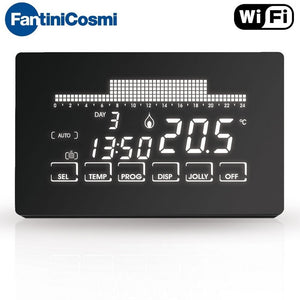

Electronic chronothermostat with negative LCD display and white backlighting, with weekly programming for heating and air conditioning systems, with WiFi connection for remote control via the Intelliclima+ App for smartphones and tablets.

Download the Intelliclima+ App for your Smartphone or Tablet for free from the Fantini Cosmi store and discover how to manage the comfort of your home wherever you are!

ELECTRICAL CHARACTERISTICS

Power supply from mains 230 V-50 Hz

Wireless connection: Wi-Fi 2.4GHz

Electrical insulation: double insulation

Pollution degree: 2

Impulse voltage: 4,000 V

Boiler connection: 3 screw terminals (NC and NO exchange contact)

Type of action: 1.B.U (microdisconnect)

Boiler control in ON/OFF mode (selectable in the menu)

REGULATIONS AND APPROVALS

Complies with EN 60730-1 and second parts standards

ErP Classification: ErP class IV; 2% (EU Regulation 811/2013 - 813/2013)

Complies with Directive 2014/53/EU (RED)

INSTALLATION

Semi-flush mounting, Intellitouch must be installed on a 3-module flush-mounted box type 503, at a height of approximately 1.5 m from the floor.

FEATURES

Degree of protection: IP20

Acoustic signals: "buzzer" feedback when pressing the keys.

Perpetual date clock, with backup battery in case of power failure

Software: Class A.

Minimum setting differential: ±0.1K.

Reference thermal gradient: 4K/h.

Maximum ambient temperature: 45°C.
