WEEKLY CHRONOTHERMOSTAT
FANTINI COSMI CH180WIFI WALL-MOUNTED
TOUCH SCREEN / WiFi / MAINS POWERED

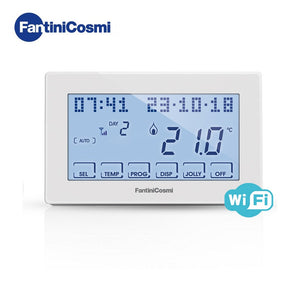

Wall-mounted electronic chronothermostat with positive LCD display and white backlight.
Weekly programming for controlling heating and air conditioning systems.

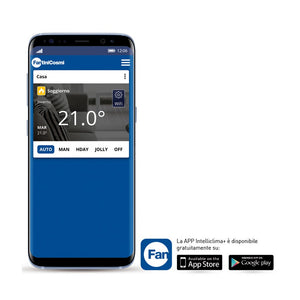

WiFi connection for remote control via the Intelliclima+ app for smartphones and tablets.
General Features
- 2.4 GHz WiFi connection
- Maximum transmitted radio frequency power <10 mW
- Regulation differential 0.3 ÷ 5 K
- Reference thermal gradient 4 K/h
- Temperature setting range 2 ÷ 40 °C, 0.1 °C increments
- Environment T measurement/display range - 50 ÷ + 50 °C
- Maximum ambient temperature 45°C
- Management: Heating/Cooling, Summer time, Remote change (APP only), Summer/Winter
- Display power consumption
- Storage temperature -10°C ÷ +60°C
- Protection rating IP40
- Pollution degree 2
- Display languages: Italian, English, French, Spanish, German, Russian
- Screen lock With password and for screen cleaning
Electrical Characteristics
- Power supply 230V-50Hz
- Maximum power consumption 5 W
- Rated contact 5(3)A 250 Vac
- Action type 1 B.U. (Micro disconnection)
- Output type: 1 relay for heating/cooling (3 screw terminals, closed + open)
- Software class A
- Electrical insulation Double insulation
- Impulse voltage 4000V
Product code: CH180WIFI
