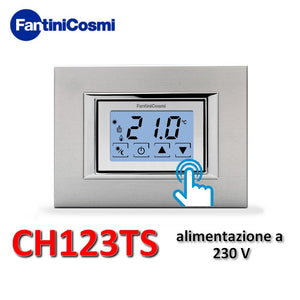

TOUCH SCREEN ROOM THERMOSTAT
BUILT-IN - INTERCHANGEABLE COVERS
FANTINI and COSMI - CH123TS
230 V POWER SUPPLY< /span>
Description:
Built-in electronic thermostats with microprocessor, for controlling heating and air conditioning systems

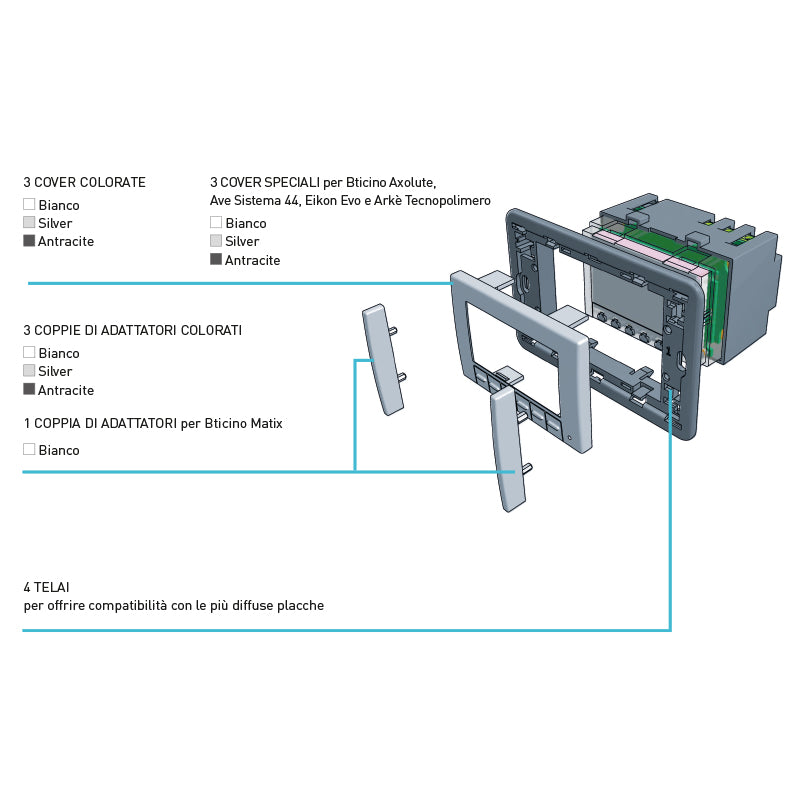

The kit includes:
- 3 COLOR COVERS
white, silver, anthracite
- 3 SPECIAL COVERS for Bticino Axolute, Ave Sistema 44, Eikon Evo and Arkè
white, silver, anthracite
- 3 PAIRS OF COLOR ADAPTERS
white, silver, anthracite
- 1 PAIR OF ADAPTERS for BTicino Matix
white
- 3 FRAMES to offer compatibility with most common plates
Mixed LCD display: graphic, symbols and seven-segment digits
LED backlight (blue)
Choice of backlight duration.
Choice of temperature display in Celsius or Fahrenheit.
< p>< span style='font-size: 10pt;'>Maximum ambient temperature 45 °CAdjustable differential.
Protection rating IP20.
Electrical characteristics:
Nominal contact 5(3)A 250Vac.
230V -50Hz mains power supply for CH123TS.
Micro-disconnection (1BU).
Volt-free changeover contact.
< strong>Installation:
Mounting for flush mounting in 3-module 503 type boxes using 2 screws (supplied)
Connection to the user with 2 wires.< br />Mount the thermostat 1.5 meters above the floor, away from kitchens, heat sources, windows and doors.
