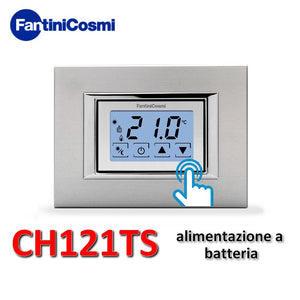

TOUCH SCREEN ROOM THERMOSTAT
FLUSH-MOUNTED - INTERCHANGEABLE COVERS
FANTINI AND COSMI - CH121TS
BATTERY POWERED
Description:
Microprocessor-controlled electronic thermostats, for controlling heating and air conditioning systems
The CH121TS model operates with 2 AAA 1.5 V alkaline batteries without connection to the mains.

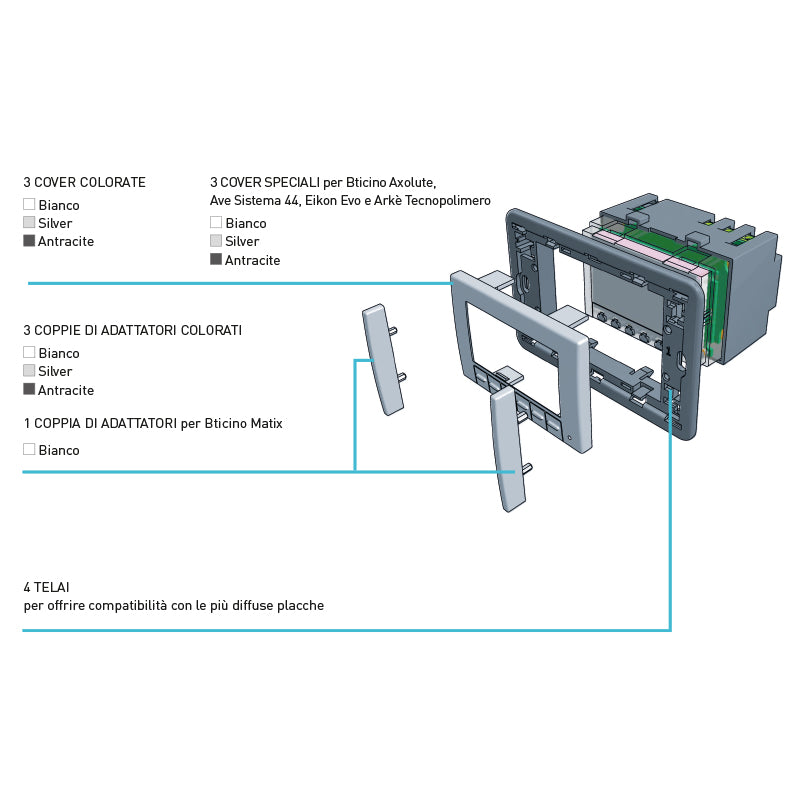

The kit includes:
- 3 COLORED COVERS
white, silver, anthracite
- 3 SPECIAL COVERS for Bticino Axolute, Ave Sistema 44, Eikon Evo and Arkè
white, silver, anthracite
- 3 PAIRS OF COLORED ADAPTERS
white, silver, anthracite
- 1 PAIR OF ADAPTERS for BTicino Matix
white
- 3 FRAMES to provide compatibility with the most common plates
Mixed LCD display: graphic, symbols and seven-segment digits
LED backlighting (blue)
Choice of backlight duration.
Choice of temperature display in Celsius or Fahrenheit.
< p>< span style='font-size: 10pt;'>Maximum ambient temperature 45 °CAdjustable differential.
Protection rating IP20.
Electrical characteristics:
Contact capacity 5(3)A 250V AC.
Power supply without connections to the mains with 2 AAA 1.5 V alkaline batteries for CH121.
Micro-disconnection (1BU).
Voltage-free changeover contact.
< span style='font-size: 10pt;'>Installation:
Flush mounting in 3-module boxes type 503 using 2 screws (supplied)
Connection to the user with 2 wires.
Mount the thermostat 1.5 meters above the floor, away from kitchens, heat sources, windows and doors.
< span style='font-size: 10pt;'>The following plates can be applied, without any connection accessories:
