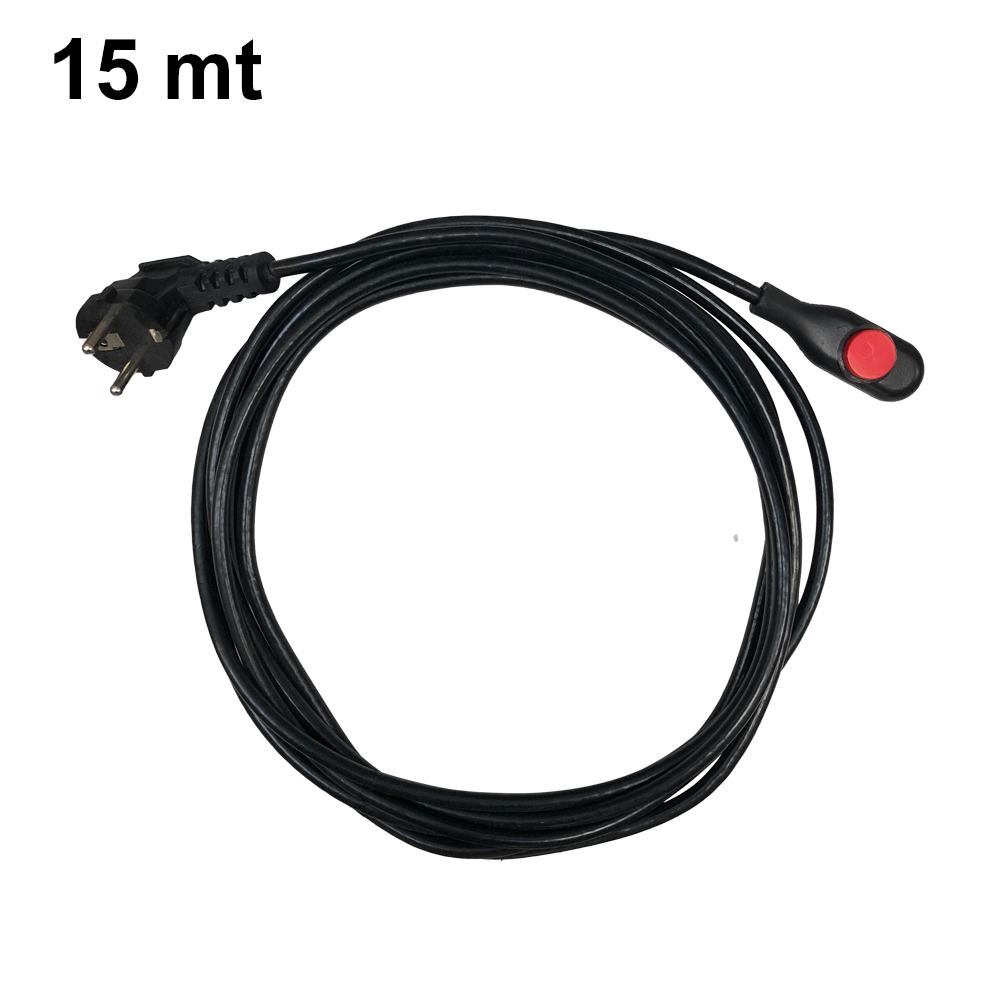

HEATING CABLE 15 m - 15 w/m

with FROST-FREE THERMOSTAT and SCHUKO PLUG

DESCRIPTION:

Calorflex CAEx anti-freeze cables are specially designed to be wrapped on hydraulic pipes exposed to
low temperatures to prevent the liquid from freezing inside.< br />Thanks to extreme flexibility and functionality, dictated by the specific characteristics of the constitutive materials and their particular construction technology, they are capable of operating in a temperature range from -20°C to +80°C.
The heating element is wrapped in a multi-wire metal mesh that guarantees high mechanical protection, superior temperature dissipation and allows for the earth connection of the cable itself. The ignition is automatically controlled by a built-in thermostat that activates the heating element
at a temperature of +3 °C ± 3 °C and switches it off at +13 °C ± 3 °C.

GENERAL CHARACTERISTICS

• Supply voltage 220/240 Vac

• Resistive element alloy used: Nickel-Copper, Nickel-Chrome

• Operating temperatures: - 20°C / +80°C

• Thermostat operating temperatures: opening 13 ± 3°C - closing 3 ± 3°C

• Power 15 w/m

• Total power 225 w

REFERENCE STANDARDS AND APPROVALS

• Compliance with DIRECTIVE 2006/95 EEC

• CE declaration of conformity

Product code: CAEI0017
