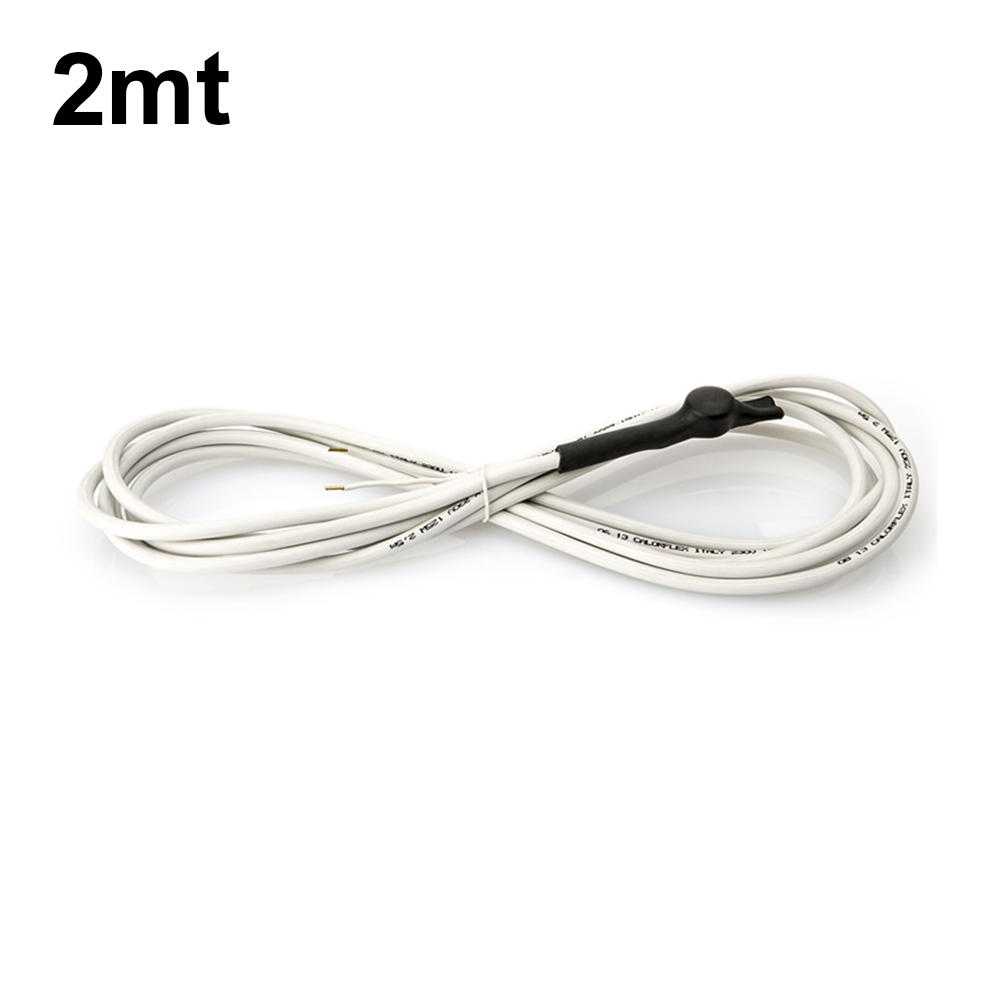

2 m HEATING CABLE

with ANTIFREEZE THERMOSTAT NO FROST without PLUG

DESCRIPTION:

Heating cables in single-cable solution with ends equipped with an antifreeze thermostat, suitable for preventing the freezing of refrigeration equipment and for the protection of pipes, taps and hydraulic networks.

FROST PROTECTION WITH THERMOSTAT - CNFx

The No-Frost CNFx resistance is designed for the protection of pipes and to prevent the freezing of refrigeration equipment and hydraulic networks. made in a completely watertight solution, extremely flexible and functional thanks to the specific characteristics of the constituent materials and the particular construction technology. The thermostat integrated into the resistance makes operation completely automatic, activating operation only when the temperature drops below +5°C. The round and flat part of the thermostat (sensor side) must be placed in contact and in the best possible position so that it can collect the correct information and make the resistance work to avoid the formation of ice or the accumulation of frost and/or snow. CNFx resistances are series resistances and must never be cut to shorten their length.

GENERAL CHARACTERISTICS

• Standard supply voltage 230 Volts, others on request.

• Heating part 1 m - cold power supply part length 1 m

• Silicone rubber insulation outer diameter 5.5 ± 0.1 mm (excluding sensor area)

• Permissible temperatures on surface: - 40°C / +130°C

• Power tolerance: +/- 10%

• Length tolerance: +/- 1%

• Final insulation: heat shrinkable with adhesive

• Thermostat operating temperatures: opening 15 ± 3°C - closing 5 ± 4°C

• Power 50 w/m

REFERENCE STANDARDS AND APPROVALS

• Design, construction and testing according to harmonized standards EN 60335

• Compliance with DIRECTIVE 2006/95 CEE

• CE declaration of conformity

Product Code: CNFA0091
