RECTANGULAR LED CHRONOTHERMOSTAT WITH SMART FUNCTIONS
FANTINI COSMI C800WIFIR WALL
WiFi / BATTERY POWERED
LED electronic chronothermostat with smart functions, battery powered< /p >

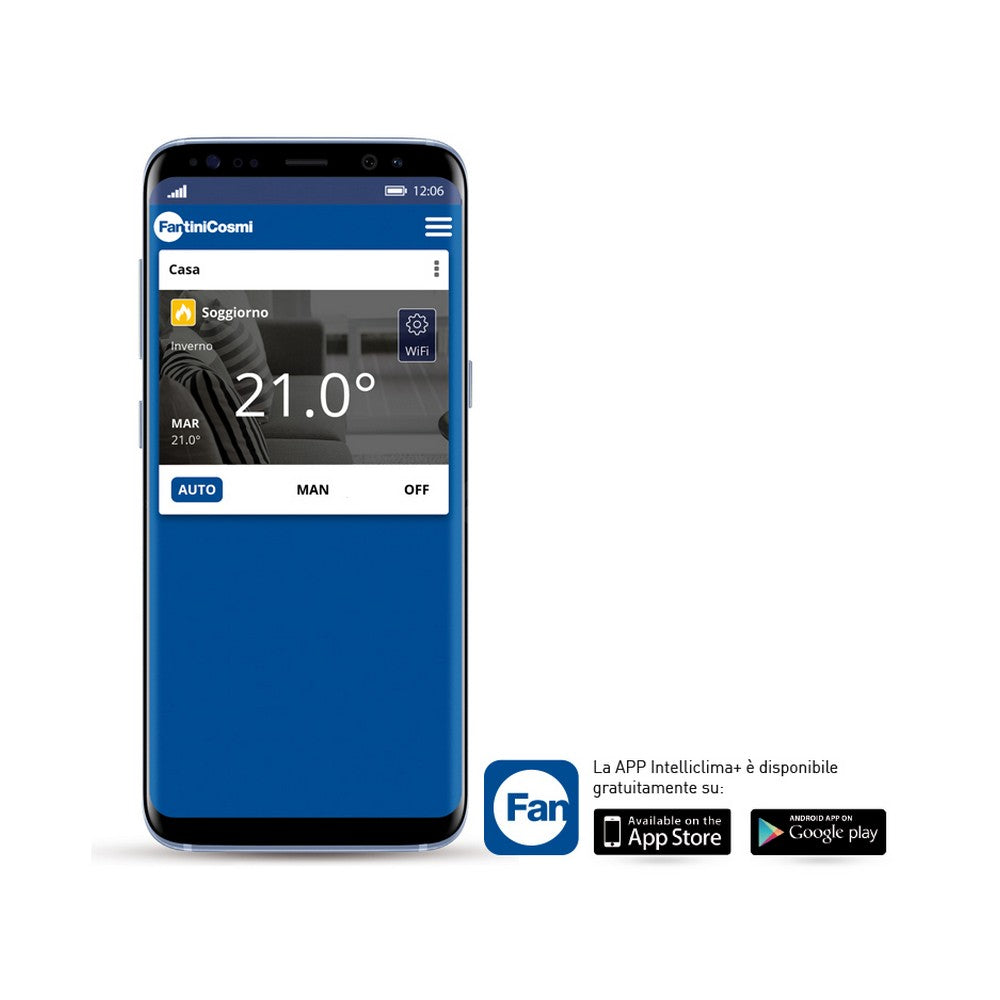

WiFi connection for programming and management via the Intelliclima+ app
Ideal for controlling heating and air conditioning systems

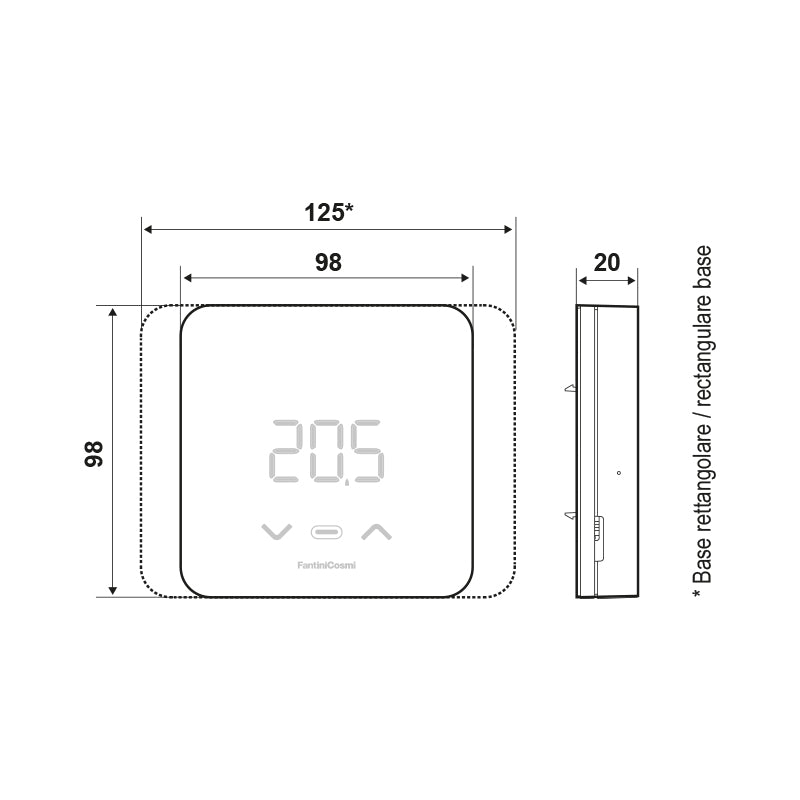

Wall-mounted or recessed in a 500/502 or 503 type box < /. span>
Voice command management directly from the Intelliclima+ app or with Google Home TM or Amazon Alexa TM.
General characteristics
- 2.4 GHz WiFi connection (802.11 b/g/n) < li>Router communication port : 1080
- Maximum transmitted radio frequency power <10 mW
- Regulation differential 0.3 ÷ 5 K
- Reference thermal gradient 4 K/h
- Temperature setting scale 2 ÷ 40 °C, 0.1 °C increment
- Measurement/display scale Environment T - 50 ÷ + 50 °C
- Maximum ambient temperature 45 °C
- Relative environment humidity display scale 0 ÷ 99 %, 1 % increment
- Storage temperature -10°C ÷ +60°C
- Protection degree IP32
- Pollution degree 2
Electrical characteristics
- Power supply 2 AA 1.5 V batteries or 230 Vac/3.3 Vdc @1500 mA Max (via C800AL sold separately)< /span>
- Maximum absorbed power 5 W
- Contact rating 5(3)A 250 Vac
- Action type 1 B.U. (Micro disconnection)
- Output type: 1 relay for heating/cooling (3 screw terminals, closed + open)
- Software class A < li >Electrical isolation: double isolation
- Impulse voltage 4000V
Product code: C800WIFIR
