LED CHRONOTHERMOSTAT with SMART FUNCTIONS
FANTINI COSMI C800WIFIQ WALL
WiFi / BATTERY POWERED
LED electronic chronothermostat with smart functions, battery-powered

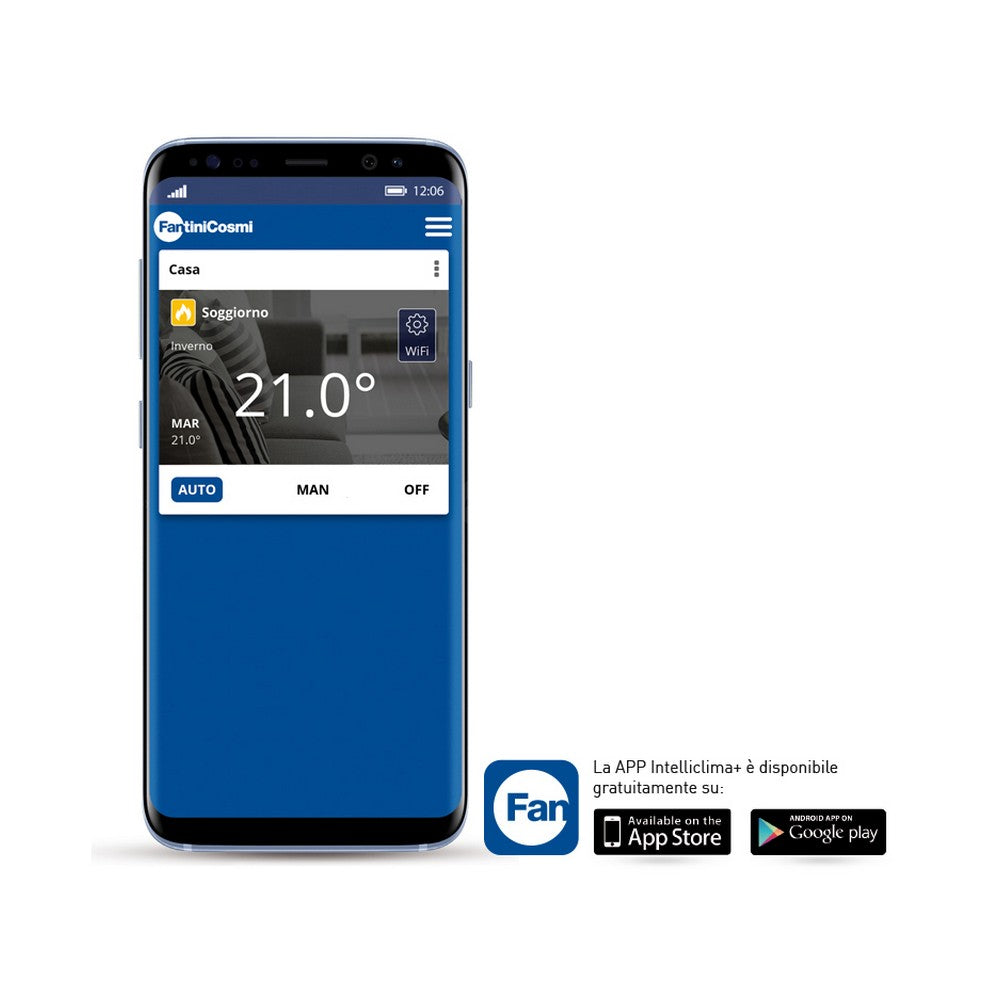

WiFi connection for programming and management via the Intelliclima+ app
Ideal for controlling heating and air conditioning systems
Wall-mounted or built-in in a 500/502 type box.
General Features
- 2.4 GHz WiFi connection (802.11 b/g/n)
- Router communication port: 1080
- Maximum transmitted radio frequency power <10 mW
- Regulation differential 0.3 ÷ 5 K
- Reference thermal gradient 4 K/h
- Temperature setting scale 2 ÷ 40 °C, increment 0.1 °C
- Environment T measurement/display scale - 50 ÷ + 50 °C
- Maximum ambient temperature 45 °C
- Environment relative humidity display scale 0 ÷ 99%, increment 1%
- Storage temperature -10°C ÷ +60°C
- Degree of protection IP32
- Pollution degree 2
Electrical Characteristics
- Power supply 2 AA 1.5 V batteries or 230 Vac/3.3 Vdc @1500 mA Max (via C800AL sold separately)
- Maximum absorbed power 5 W
- Contact rating 5(3)A 250 Vac
- Action type 1 B.U. (Micro disconnection)
- Output type: 1 relay for heating/cooling (3 screw terminals, closed + open)
- Software class A
- Electrical insulation: double insulation
- Impulse voltage 4000V
Product Code: C800WIFIQ
