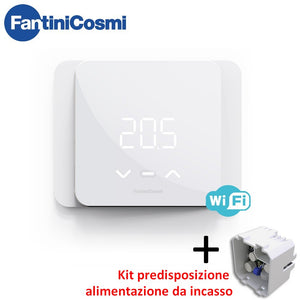

LED CHRONOTHERMOSTAT with SMART FUNCTIONS
FANTINI COSMI C800WIFIPRO WALL
COMPLETE WITH POWER SUPPLY KIT AND RECTANGULAR AND SQUARE BASES
WIFI / BATTERY POWERED< / span>
LED electronic chronothermostat with smart functions, complete with power supply kit and rectangular and square bases
Ideal for controlling heating and air conditioning systems
Wall-mounted or recessed in a type 500/502 or 503 box

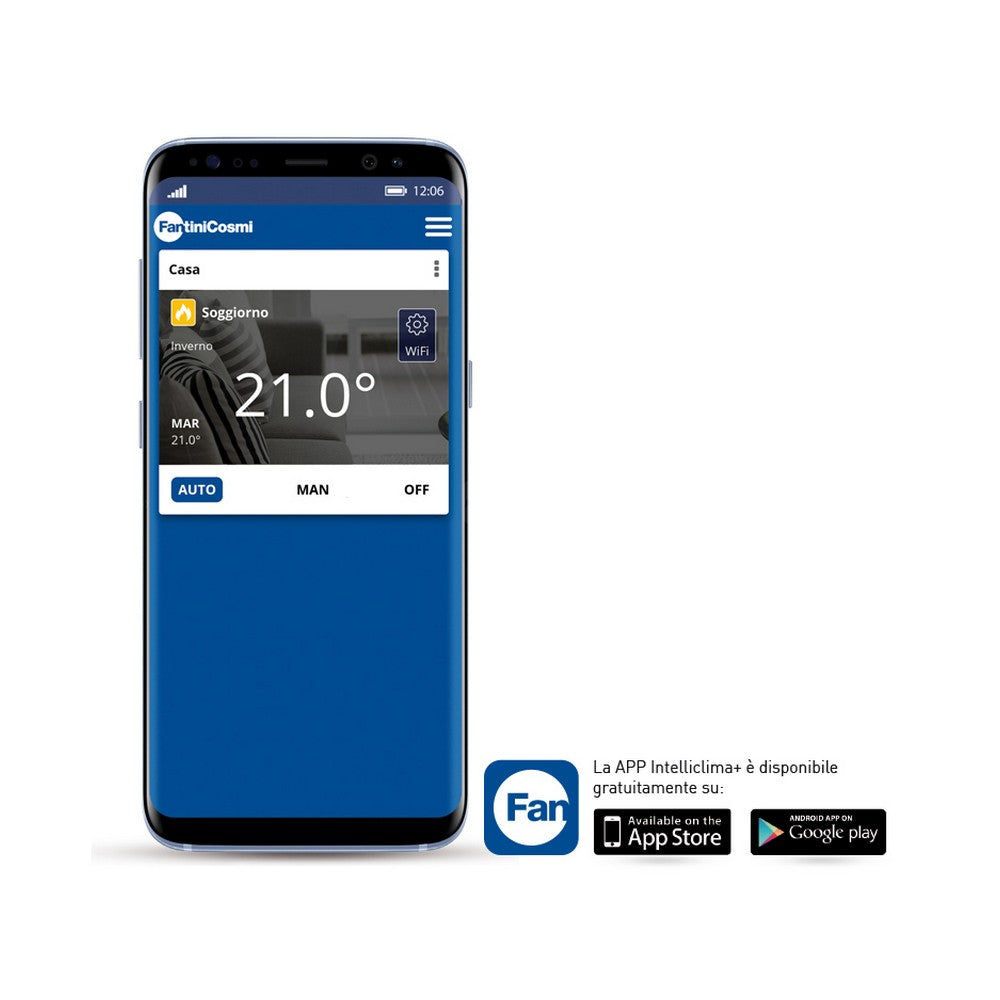

WiFi connection for programming and management via the Intelliclima+ app < /p >
Voice command management directly from the Intelliclima+ app or with Google Home TM or Amazon Alexa TM.
Advantages < /p>
The C800WIFI is a chronothermostat with "smart" functions for an innovative approach to environmental comfort management. Thanks to continuous monitoring of environmental temperature and humidity parameters (which are used to detect the perceived temperature) and data processing by "Artificial Intelligence" algorithms, the system cross-references all useful information to optimize the use of the room heating and air conditioning system, anticipating or delaying its activation based on environmental usage habits and advanced user geolocation, with the aim of offering the best comfort conditions with the lowest possible consumption. This new advanced thermoregulation approach, called "AGC-Adaptive Gain Control", results in a reduction in primary energy needs that can be verified and consulted by users, via the infographic sections of the Intelliclima+ app which display savings data expressed in kW/year, CO2 emissions reduction and the equivalence of this data in "number of trees planted".
General features
- 2.4 GHz WiFi connection (802.11 b/g/n) < li>Router communication port: 1080
- Maximum transmitted radio frequency power < 10 Mw
- Regulation differential 0.3 ÷ 5 Ko
- Reference thermal gradient 4 K/h
- Temperature setting range 2 ÷ 40 °C, 0.1 °C increment
- Ambient T measurement/display range - 50 ÷ + 50 °C
- Maximum ambient temperature 45 °C
- Relative ambient humidity display range 0 ÷ 99%, 1% increment
- Storage temperature -10°C ÷ +60°C
- Protection degree IP32
-
Pollution degree 2
< / span>
- Power supply 2 AA 1.5 V batteries or 230 Vac/3.3 Vdc @1500 mA Max (via C800AL)
- Maximum power consumption 5 W
- Contact rating 5(3)A 250 Vac
- Type of action 1 B.U. (Micro disconnection)
- Output type: 1 relay for heating/cooling (3 screw terminals, closed + open)
- Class A software < li >Electrical isolation: double insulation
- Impulse voltage 4000V
Product code: C800WIFIPRO
